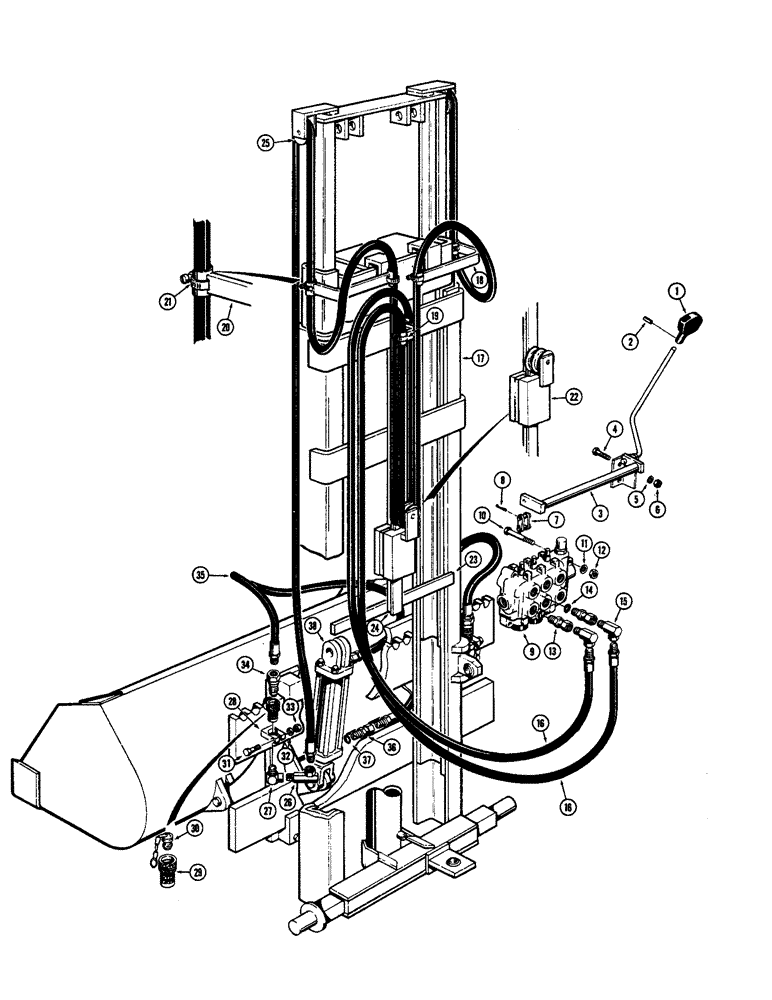

Запчасти Case 580 (78) - LOADER BUCKET HYDRAULICS (21-1/2 FOOT MAST) (35) - HYDRAULIC SYSTEMS

D24288

LEVER

ASSEMBLY - loader bucket control, Includes: Ref. 1 - 3

1шт.

1

D24184

KNOB - lever

1шт.

2

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Includes Ref. 5 - 8 Hex, 3/8"-16 x 2", G5

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

7

D24140

LINK

- connecting, Includes: Ref. 8

1шт.

8

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

9

REF

INSTRUCTION

VALVE - hydraulic, control (Parts list Figure 94)

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

13

218-5251

HYD CONNECTOR,7/8" - 14 ORB x 1/2" - 14 NPT

ADAPTER - straight, male (Swivel)

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

15

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

ADAPTER - 90 degree, swivel

2шт.

16

D24300

HOSE - hydraulic, control valve to quick disconnect (332" long)

2шт.

17

D40700

MAST ASSEMBLY - 21-1/2', 4000 lb. lift capacity (See parts list Figure 16 for component parts)

1шт.

18

D24297

BRACKET - hose, R.H.

1шт.

19

D24298

BRACKET - hose, center

1шт.

20

D24296

BRACKET - hose, L.H.

1шт.

21

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

6шт.

22

D24292

COUNTERWEIGHT - hydraulic hose

1шт.

23

D24299

SUPPORT - counterweight guide

1шт.

24

D24293

GUIDE - counterweight

1шт.

25

D24294

PULLEY - hose guide

2шт.

26

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- 90 degree, swivel

2шт.

27

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- street, 90 degrees

2шт.

28

D24279

BRACKET - quick disconnect (Welded to upper backing plate)

2шт.

29

D24286

COUPLING - quick disconnect (Female half)

2шт.

30

D24287

CAP - dust, quick disconnect

2шт.

31

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

32

92-5

LOCK WASHER,5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

34

D24262

COUPLING - quick disconnect (Male half)

2шт.

35

D24259

HOSE - hydraulic, quick disconnect to loader bucket cylinder (30" long)

2шт.

36

D39471

X

CONNECTOR - straight, male (Swivel), Includes: Ref. 37

2шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

38

D39464

CYLINDER ASSY.

CYLINDER - hydraulic, loader bucket (3" I.D. x 6" stroke) Parts list Figure 84

1шт.
