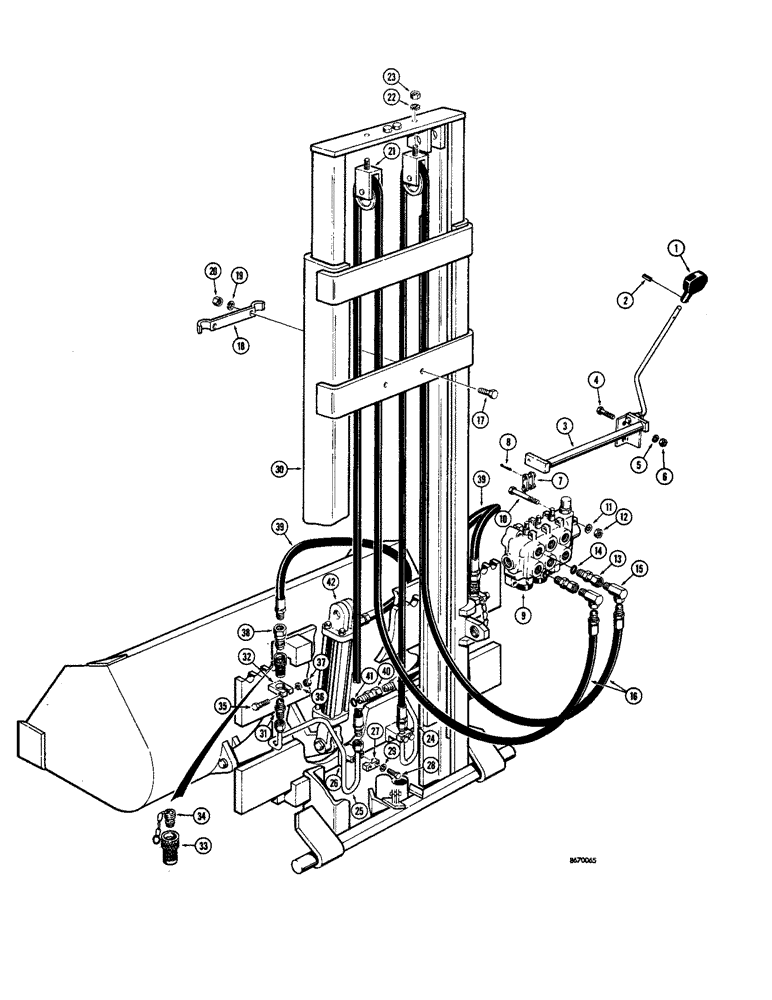

Запчасти Case 580 (76) - LOADER BUCKET HYDRAULICS (10-1/2 FOOT, 12 FOOT AND 14-1/4 FOOT MASTS) (35) - HYDRAULIC SYSTEMS

D24288

LEVER

ASSEMBLY - loader bucket control, Includes: Ref. 1 - 8

1шт.

1

D24184

KNOB - lever

1шт.

2

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

7

D24140

LINK

- connecting, Includes: Ref. 8

1шт.

8

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

9

REF

INSTRUCTION

VALVE - hydraulic, control (Parts list Figure 94)

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

13

218-5251

HYD CONNECTOR,7/8" - 14 ORB x 1/2" - 14 NPT

ADAPTER - straight, male (Swivel), Includes: Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

15

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

ADAPTER - 90 degree, swivel

2шт.

16

D24280

HOSE

- hydraulic, control valve to tube (Use with 10-1/2' 4000 lb. lift capacity mast) 176" long

2шт.

D24281

HOSE - hydraulic, control valve to tube (Use with 12' 5000 lb. lift capacity or 14-1/4' 4000 lb. lift capacity and 14-1/4' 5000 lb. lift capacity masts) 216" long

2шт.

17

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

2шт.

18

D39478

CLAMP - hose

1шт.

19

92-5

LOCK WASHER,5/16"

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

21

D24277

PULLEY

- hose guide, Includes: Ref. 22 and 23

2шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

24

D24283

TUBE - hydraulic, to quick disconnect, R.H.

1шт.

25

D24284

TUBE - hydraulic, to quick disconnect, L.H.

1шт.

D24256

BRACKET ASSEMBLY - tubing, Includes: Ref. 26 and 27

2шт.

26

D24278

BRACKET - tubing (Welded to lower backing plate)

2шт.

27

D24229

CLAMP - bracket, tubing

2шт.

28

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

REF

INSTRUCTION

MAST ASSEMBLY - fork lift (See Figures 8 thru 14 and 22 thru 24 for options)

1шт.

31

D24285

X

CONNECTOR - straight, special

2шт.

32

D24279

BRACKET - quick disconnect (Welded to upper backing plate)

2шт.

33

D24286

COUPLING - quick disconnect (Female half)

2шт.

34

D24287

CAP - dust, quick disconnect

2шт.

35

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

36

92-5

LOCK WASHER,5/16"

2шт.

37

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

38

D24262

COUPLING - quick disconnect (Male half)

2шт.

39

D24259

HOSE - hydraulic, coupling to cylinder (30" long)

2шт.

40

D39471

X

CONNECTOR - straight, male (Swivel), Includes: Ref. 41

2шт.

41

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

42

D39464

CYLINDER ASSY.

CYLINDER - hydraulic, loader bucket (3" I.D x 6" stroke) Parts list Figure 84

1шт.
