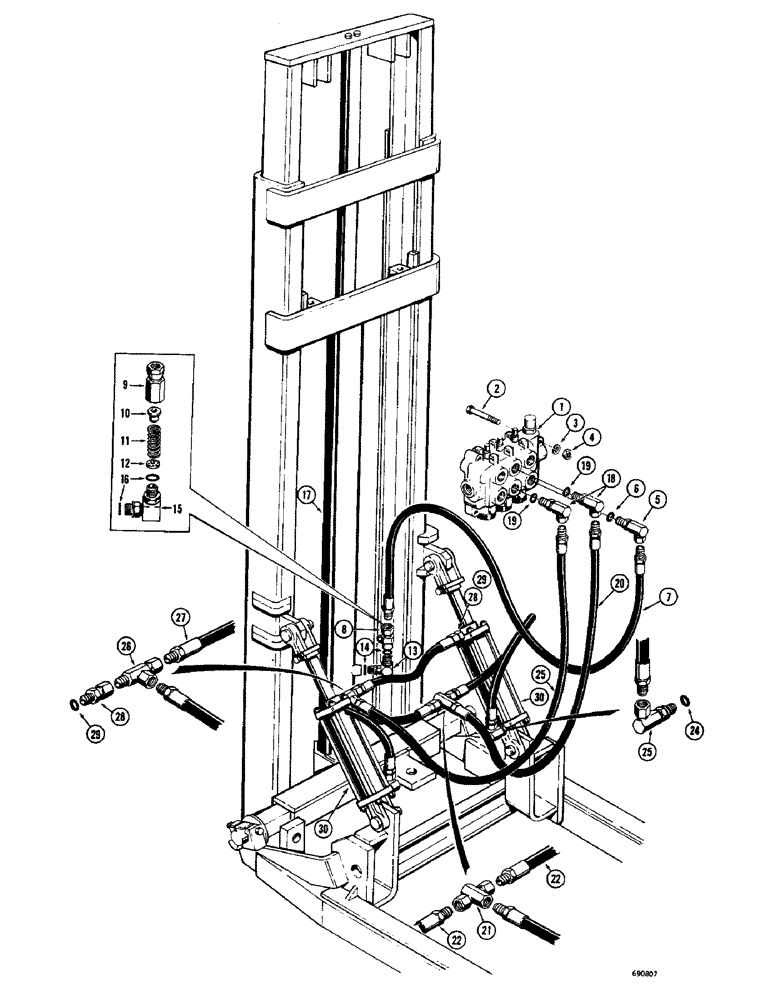

Запчасти Case 580 (74) - LIFT AND TILT CYLINDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic, control (Parts list Figure 94), lift cylinder hydraulics

1шт.

2

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Lift cylinder hydraulics Hex, 3/8"-16 x 2 1/4", G5

3шт.

3

92-6

LOCK WASHER,3/8"

lift cylinder hydraulics 3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), lift cylinder hydraulics

3шт.

5

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

- 90 degree, swivel, lift cylinder hydraulics

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, lift cylinder hydraulics

1шт.

7

D24169

HOSE - hydraulic, lower valve port to lift cylinder port (38" long)

1шт.

8

D39459

X

VALVE - flow control, adjustable type (When stock is exhausted, order 1 - D48874 elbow and 1 - D48875 valve for service), lift cylinder hydraulics, Includes: Ref. 9 - 12

1шт.

D48875

VALVE

- flow control, non-adjustable type, lift cylinder hydraulics

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - D48875 flow control valve, lift cylinder hydraulics

1шт.

10

D48876

SPACER

- D48875 flow control valve, lift cylinder hydraulics

1шт.

11

D48877

SPRING

- D48875 flow control valve, lift cylinder hydraulics

1шт.

12

D48878

WASHER

- restrictor, D48875 flow control valve, lift cylinder hydraulics

1шт.

13

D39458

X

ELBOW - adjustable, 90 degree (Used with D39459 valve) Order D48874 elbow for service, lift cylinder hydraulics, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, lift cylinder hydraulics

2шт.

15

D48874

ELBOW

- adjustable, 90 degree (Special) Must be used with D48875 valve, lift cylinder hydraulics, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, lift cylinder hydraulics

2шт.

17

60969

CYLINDER - hydraulic, lift (14-1/4' 4000 and 5000 lb. lift capacity masts) 3-1/2" I.D. x 85-1/2" stroke (Parts list Figure 82)

1шт.

D24173

CYLINDER

- hydraulic, lift (10-1/2' 4000 lb. lift capacity mast) 3-1/2" I.D. x 63" stroke (Parts list Figure 80)

1шт.

D36571

CYLINDER - hydraulic, lift (12' 5000 lb lift capacity mast) 3-1/2" I.D. x 72" stroke (Parts list Figure 80)

1шт.

D40847

CYLINDER

- hydraulic, lift (21-1/2' 4000 lb capacity mast) 4" I.D. x 85-3/16" stroke (Parts list Figure 82)

1шт.

18

D39462

X

ELBOW - 90 degree, swivel, tilt cylinder hydraulics, Includes: Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, tilt cylinder hydraulics

1шт.

20

D33748

HOSE - hydraulic, upper valve port to bottom port of tilt cylinder (18" long)

1шт.

21

D33747

TEE

- swivel, female, tilt cylinder hydraulics

1шт.

22

D40829

HOSE - hydraulic to bottom port of tilt cylinder (15" long)

2шт.

23

218-5387

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 3/8" NPSM Fem

- 90 degree, swivel, tilt cylinder hydraulics, Includes: Ref. 24

2шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, tilt cylinder hydraulics

1шт.

25

D33749

HOSE

- hydraulic, lower valve port to upper port of tilt cylinder (27" long)

1шт.

26

D39190

TEE

- restrictor (Use with D39464, 3" dia. tilt cylinders on 21-1/2' mast only), hydraulics

1шт.

D39191

TEE

- restrictor (Use with D39465, 3-1/2" dia. tilt cylinders on 10-1/2', 12' and 14-1/4' masts), hydraulics

1шт.

27

D40830

HOSE - hydraulic, to upper port of tilt cylinder (20" long)

1шт.

28

218-5252

HYD CONNECTOR,3/4" - 16 ORB x 3/8" NPT

CONNECTOR - male, swivel, tilt cylinder hydraulics, Includes: Ref. 29

2шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, tilt cylinder hydraulics

1шт.

30

D39464

CYLINDER ASSY.

CYLINDER - hydraulic, tilt (3" I.D. x 6" stroke) Use with 21-1/2" mast only (Parts list Figure 84)

2шт.

D39465

CYLINDER ASSY.

CYLINDER - hydraulic, tilt (3-1/2" I.D. x 10" stroke) Use with 10-1/2', 12' and 14-1/4' masts (Parts list Figure 86)

2шт.
