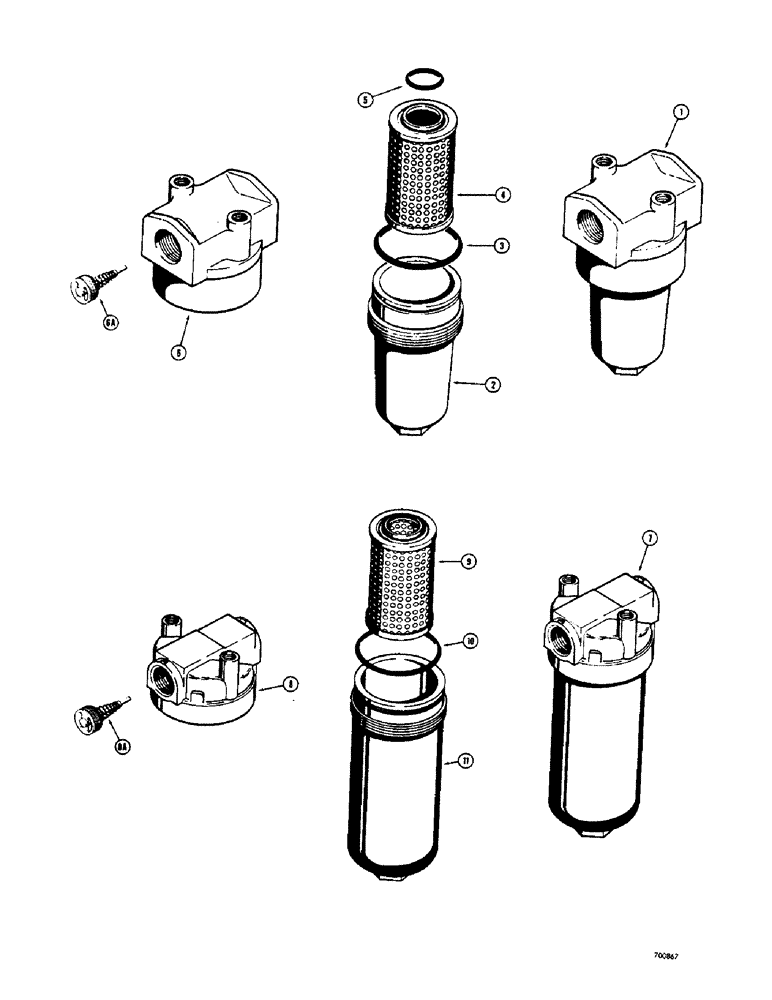

Запчасти Case 580 (72) - HYDRAULIC OIL FILTER, D32254 HYDRAULIC FILTER, D43815 HYDRAULIC FILTER, D43567 HYDRAULIC FILTER (35) - HYDRAULIC SYSTEMS

1

D32254

FILTER ASSY

- hydraulic oil (Early production) When stock is exhausted, use D43567, D32254 filter, Includes: Ref. 2 - 6A

1шт.

2

R20645

HOUSING

- filter, D32254 hydraulic

1шт.

D32212

FILTER, ELEMENT

ELEMENT KIT - filter, D32254 hydraulic , Includes: Ref. 3 and 4

1шт.

3

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, D32254 hydraulic filter

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter, D32254 hydraulic, Includes: Ref. 5

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O" ring, D32254 hydraulic filter

1шт.

6

D31874

HEAD

- filter, D32254 hydraulic

1шт.

6a

L13790

LOCK VALVE

VALVE - bypass, D32254 hydraulic filter

1шт.

7

D43815

FILTER ASSY

- hydraulic oil, short housing and element (Late production) Element is 4-1/2" long (When stock is exhausted, use D43567), D43815, Includes: Ref. 8 - 11

1шт.

8

D42440

FILTER HEAD

HEAD - filter (When stock is exhausted, order D61903 head), D43815 hydraulic, Includes: Ref. 8A

1шт.

8a

D49377

LOCK VALVE

VALVE - bypass (D42440 head only), D43815 hydraulic filter

1шт.

8

D61903

HEAD

- filter, D43815 hydraulic, Includes: Ref. 9 and 10

1шт.

D32212

FILTER, ELEMENT

ELEMENT KIT - filter, D43815 hydraulic

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - filter, D43815hydraulic

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, D43815 hydraulic filter

1шт.

11

D43799

HOUSING

- filter, D43815 hydraulic

1шт.

7

D43567

FILTER ASSY

- hydraulic oil, long housing and element (Service filter) Element is 7" long, D43567 hydraulic, Includes: Ref. 8 - 11

1шт.

8

D42440

FILTER HEAD

HEAD - filter (When stock is exhausted, order D61903 head only), D43567 hydraulic, Includes: Ref. 8A

1шт.

8a

D49377

LOCK VALVE

VALVE - bypass (D42440 head only), D43567 hydraulic filter

1шт.

8a

D58199

VALVE

- bypass (D61903 head only), D43567 hydraulic filter

1шт.

8

D61903

HEAD

- filter, D43567 hydraulic, Includes: Ref. 8A

1шт.

8a

D58199

VALVE

- by-pass (D61903 head only), D43567 hydraulic filter

1шт.

D43800

FILTER, ELEMENT

ELEMENT KIT - filter, D43567 hydraulic, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - filter, D43567 hydraulic

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, D43567 hydraulic filter

1шт.

11

D42439

HOUSING

- filter, D43567 hydraulic

1шт.
