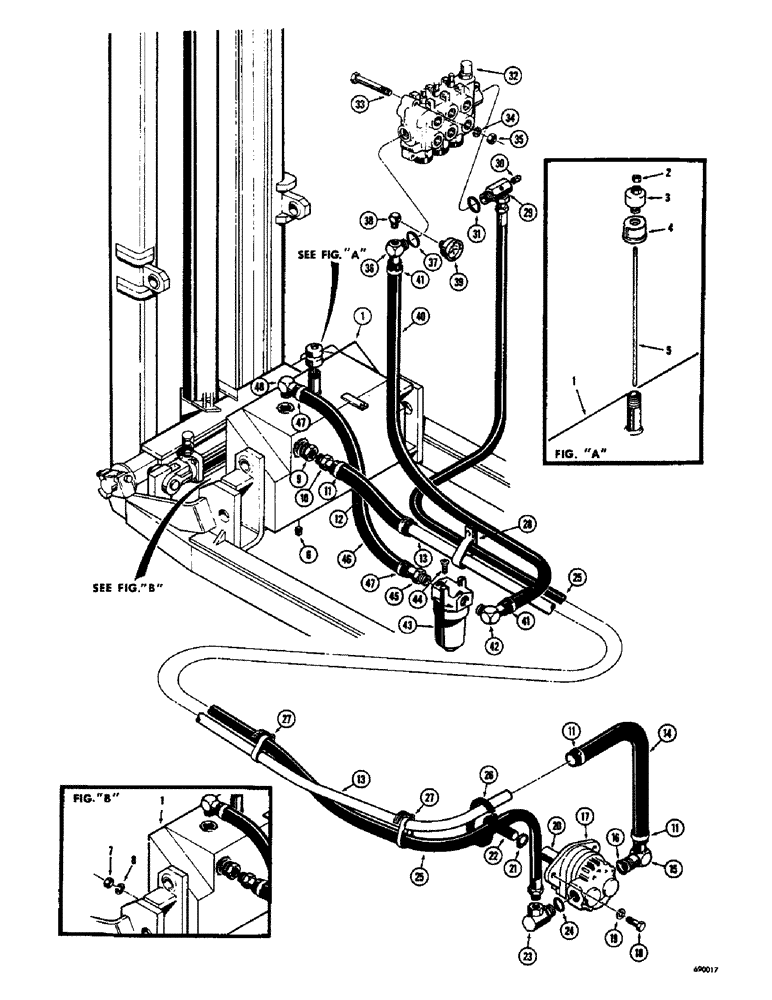

Запчасти Case 580 (70) - FORK LIFT PRIMARY HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

D40828

SLIDER

RESERVOIR - hydraulic oil, Includes: Ref. 2 - 6

1шт.

D32599

SPARE PART BREATHER AND DIPSTICK ASSEMBLY, Includes: Ref. 2 - 5

1шт.

2

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

3

D33155

SPARE PART BREATHER - hydraulic reservoir

1шт.

4

D33154

SPARE PART CAP - breather

1шт.

5

D32608

SPARE PART DIPSTICK - oil level

1шт.

6

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

1шт.

7

25-108

NUT,1/2"-13, G5

NUT - hex. (1/2" - 13 NC)

2шт.

8

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

9

221-76

BUSHING

BUSHING - reducer (1-1/2" NPT to 1-1/4" NPT)

1шт.

10

D33743

X

STEM - hose, straight

1шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

4шт.

12

D40835

SPARE PART HOSE - suction (1-1/4" I.D. x 16" long)

1шт.

13

D40837

SPARE PART TUBE - suction

1шт.

14

D40834

SPARE PART HOSE - suction (1-1/4" I.D. x 26" long)

1шт.

15

D33741

X

STEM - hose, 90 degrees, Includes: Ref. 16

1шт.

16

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

17

D41390

PUMP

PUMP - hydraulic, 20 G.P.M. at 1900 R.P.M. at 1950 P.S.I (Parts list Figure 92)

1шт.

17

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

17

DC41390

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

17

87644746R

REMAN-HYD PUMP

580 CASE CONSTRUCTION KING FORKLIFT

1шт.

17

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

18

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

19

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

20

D31108

SPLINED COUPLING

COUPLING - female, Serial Range: pump-shaft

1шт.

21

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

22

D30569

SHAFT

SHAFT - pump drive

1шт.

23

D33740

SPARE PART ELBOW - 90 degree, swivel, Includes: Ref. 24

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

25

D33739

SPARE PART HOSE - pump to valve (3/4" I.D. x 145" long)

1шт.

26

D33854

TRIM - rubber, side panel

1шт.

27

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

28

D40836

CLAMP

CLAMP - hose

1шт.

29

D39474

ELBOW - adjustable, 90 degrees, Includes: Ref. 30 and 31

1шт.

30

221-12

PLUG,Sq Hd, 1/4"-18

PLUG - pipe, square head (1/4" NPT)

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

32

REF

INSTRUCTION

VALVE - hydraulic control (Parts list Figure 94)

1шт.

33

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

3шт.

34

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

35

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

3шт.

36

D39473

SPARE PART STEM - hose, 90 degrees, Includes: Ref. 37

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

38

221-411

ELBOW,90 Degree, 1/8"-27, NPT

ELBOW, , Street 90º, 1/8"-27, NPT

1шт.

39

D29650

ELECTRICAL GAUGE

GAUGE - filter pressure

1шт.

40

D33736

SPARE PART HOSE - valve to filter (1" I.D. x 50" long)

1шт.

41

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

42

D24162

SPARE PART STEM - hose, 90 degrees

1шт.

43

REF

INSTRUCTION

FILTER - hydraulic, oil (Parts list Figure 72)

1шт.

44

164-71

SCREW - flat head, hex. socket (1/2" - 13 NC x 1")

2шт.

45

D33735

X

STEM - hose, straight

1шт.

46

D33737

SPARE PART HOSE - filter to reservoir (1" I.D. x 26-1/2" long)

1шт.

47

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

48

D24162

SPARE PART STEM - hose, at reservoir (90 degrees)

1шт.
