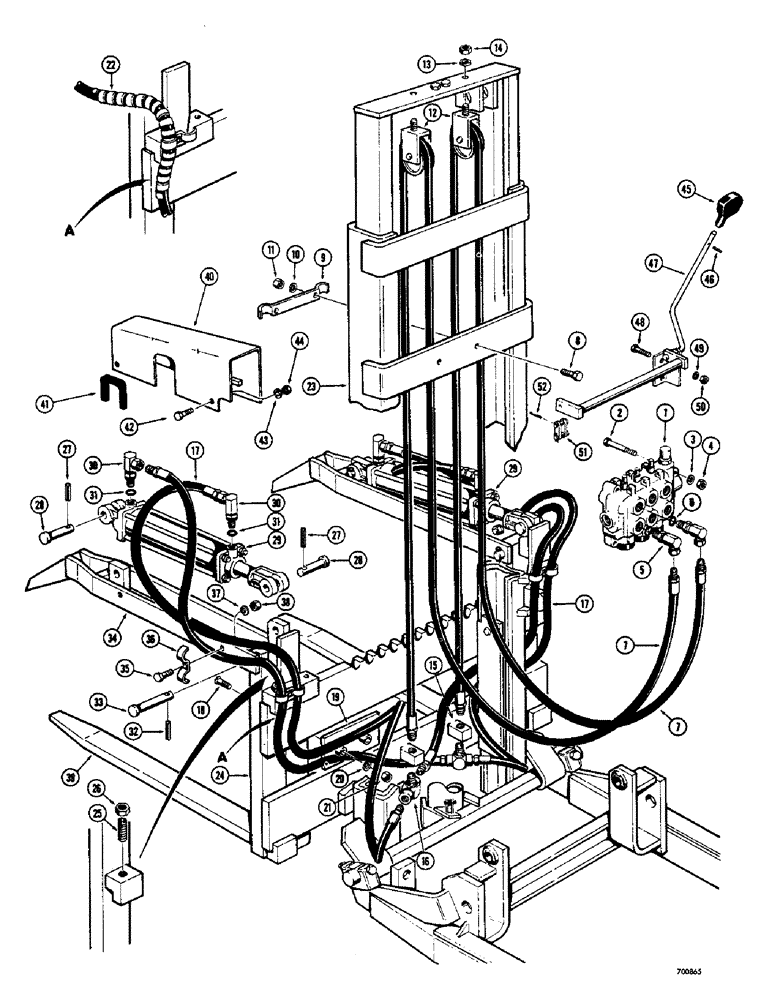

Запчасти Case 580 (32) - LOG CLAMP AND HYDRAULICS (USED WITH 5000 LB. LIFT CAPACITY MAST ONLY) (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic, control (Parts list Figure 94)

1шт.

2

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

- adjustable, special (90 degrees), Includes: Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

D25232

HOSE

- hydraulic, valve to log clamp (216 " long)

2шт.

8

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

2шт.

9

D39478

CLAMP - hose

1шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" - 18 NC

2шт.

12

D24277

PULLEY

- hose guide, Includes: Ref. 13 and 14

2шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

1шт.

15

D24342

BLOCK - hose retaining (Welded to lower backing plate)

2шт.

16

D34437

TEE

- at block

2шт.

17

D41515

HOSE - hydraulic, to log clamp cylinders (74" long)

4шт.

18

64-640

SCREW - fillister head, slotted (3/8" - 16 NC x 2-1/2")

4шт.

19

D34435

PLATE - hose guard

2шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

22

D41514

SHEATH - hose guard

4шт.

23

REF

INSTRUCTION

MAST ASSEMBLY - 5,000 lb. lift (See Figures 22 and 24)

1шт.

24

D41510

HANGER - log clamp

2шт.

25

178-506

SCREW - set, socket head (5/8" - 11 NC x 3")

2шт.

26

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., jam (5/8" - 11 NC)

2шт.

27

138-223

LOCK PIN,1/8" x 2", Slotted

Pin, , used with D41513 pin only 1/8" x 2", Slotted

4шт.

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Used with D44106 pin only 1/4" x 2", Slotted

4шт.

28

D41513

X

PIN - cyl. mtg., early production (When stock is exhausted, order (1) D44106 pin and (1) 138-142 pin for service)

4шт.

D44106

PIN - cyl. mtg., late production

4шт.

29

D41512

CYLINDER - hydraulic, log clamp (3" I.D. x 10" stroke) Parts list Figure 90

2шт.

Use G34196 for L.H. and G34197 for R.H.

1шт.

30

D40825

FITTING

ELBOW - adjustable, 90 degrees, Includes: Ref. 31

4шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

32

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

33

D41508

PIN - arm mounting

2шт.

34

D41509

ARM - log clamp

2шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

36

D41511

CLAMP

- hose

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

38

25-106

NUT,3/8"-16, G5

- hex. (3/8" x 16 NC)

4шт.

39

D36809

FORK

S - pallet (See Figure 30 for pin and ring)

2шт.

40

D44107

GUARD - cylinder, R.H. (If used)

1шт.

D44108

GUARD - cylinder, L.H. (If used)

1шт.

41

D38500

LINING

TRIM - edge

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

43

92-6

LOCK WASHER,3/8"

8шт.

44

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

D24288

LEVER

ASSEMBLY - accessory control, Includes: Ref. 45 - 52

1шт.

45

D24184

KNOB - lever

1шт.

46

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

47

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

48

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

49

92-6

LOCK WASHER,3/8"

2шт.

50

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

51

D24140

LINK

- connecting, Includes: Ref. 52

1шт.

52

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.
