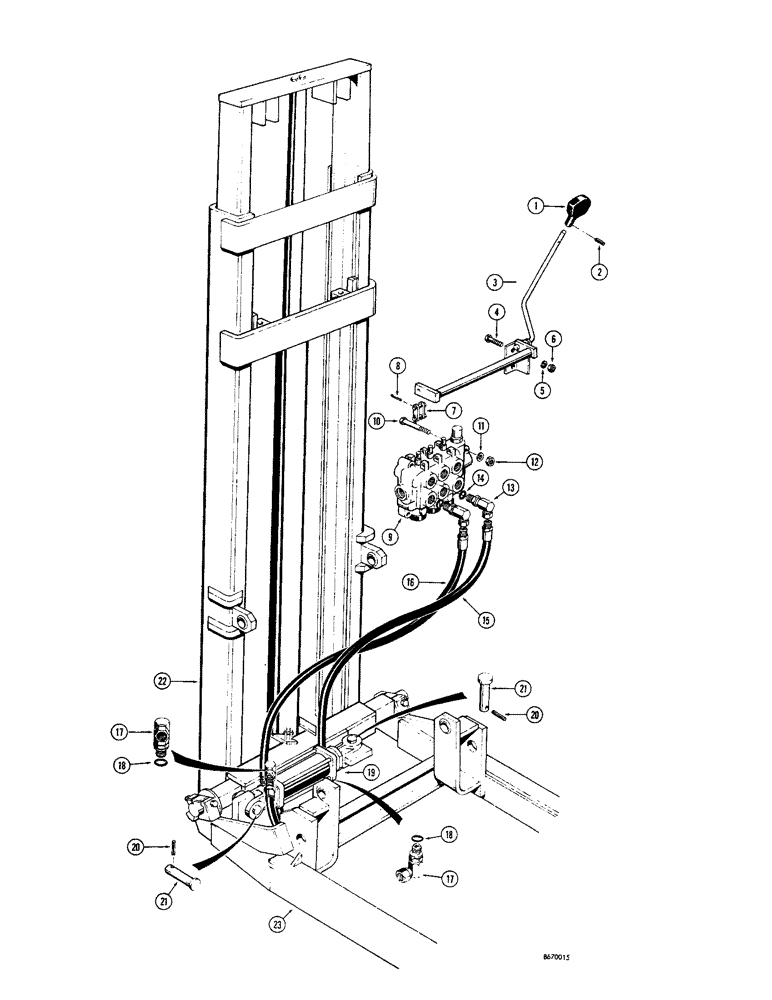

Запчасти Case 580 (26) - SIDE SHIFTER AND RELATED PARTS (USED WITH 4000 LB. LIFT CAPACITY MAST) (35) - HYDRAULIC SYSTEMS

D24288

LEVER

ASSEMBLY - side shift control, Includes: Ref. 1 - 8

1шт.

1

D24184

KNOB- lever

1шт.

2

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

7

D24140

LINK

- connecting, Includes: Ref. 8

1шт.

8

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

9

REF

INSTRUCTION

VALVE - hydraulic, control (Parts list Figure 94)

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

13

D39462

X

ELBOW - adjustable, 90 degrees, Includes: Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

D41213

HOSE - upper valve port to side shift cylinder, rod end (55 " long)

1шт.

16

D41212

HOSE - lower valve port to side shift cylinder, closed end (48" long)

1шт.

17

D41214

ELBOW

- restrictor, 90 degree adjustable, Includes: Ref. 18

2шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

19

D41424

CYLINDER BLOCK

CYLINDER - hydraulic, side shift (3" I.D. x 6" stroke) Parts list Figure 88, Includes: Ref. 20 and 21

1шт.

20

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

21

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.

22

REF

INSTRUCTION

MAST ASSEMBLY - 4,000 lb. lift capacity (See Figures 8 thru 20 for options)

1шт.

23

REF

INSTRUCTION

SUBFRAME - fork lift (See Figure 6 ref. no. 20 for components)

1шт.
