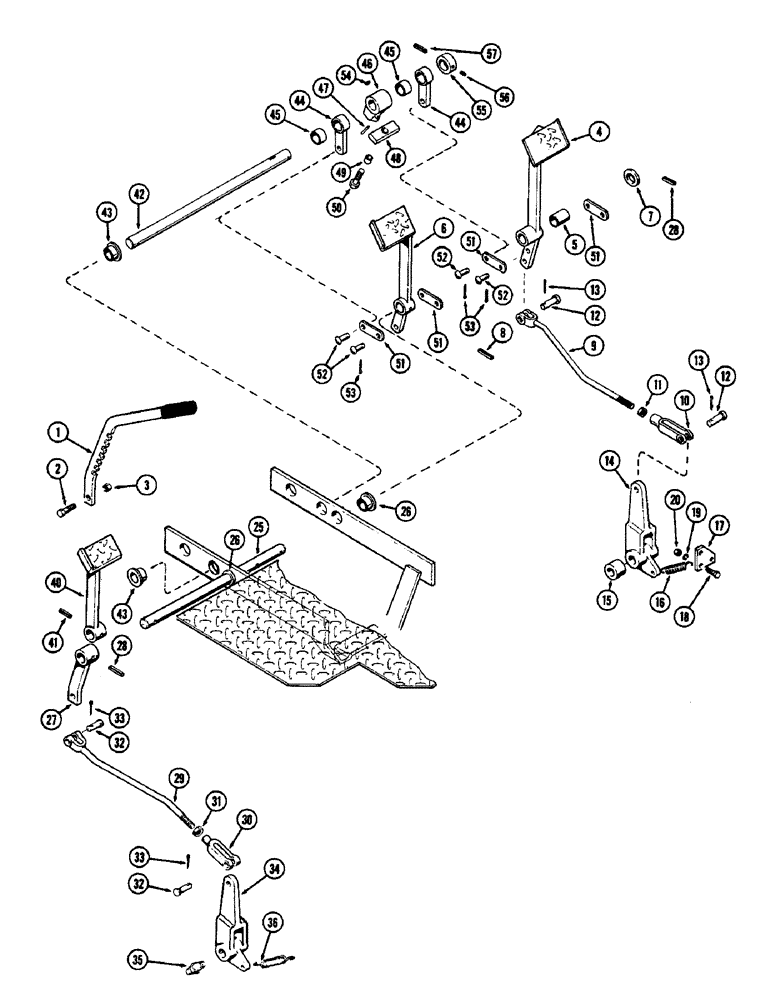

Запчасти Case 580 (48) - BRAKE PEDALS AND LINKAGE WITH POWER SHUTTLE (33) - BRAKES & CONTROLS

1

A38605

LEVER - brake lock

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 1/2 x 1-1/2" N.C. hex.

1шт.

3

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

4

A38549

PEDAL - brake, R.H., Includes: Ref. 5

1шт.

5

D26052

BUSHING - pedal

1шт.

6

A38556

PEDAL - brake, L.H.

1шт.

7

D33753

WASHER

SPACER - brake pedal

1шт.

8

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

9

A38561

ROD - brake pedal, R.H.

1шт.

10

D24221

X

YOKE - adjusting

1шт.

11

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

12

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

2шт.

13

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

14

D25794

LEVER - brake, R.H.

1шт.

15

D24223

SPACER - lever

1шт.

16

G10848

SPRING

- return, brake lever

1шт.

17

D41201

BRACKET - spring

1шт.

18

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

25

D24201

SHAFT - pivot, brake pedal

1шт.

26

D24206

BUSHING

- flanged, cross shaft

2шт.

27

D41208

LEVER - brake, L.H.

1шт.

28

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

29

D41198

ROD - brake pedal to lever, L.H., Includes: Ref. 30 and 31

1шт.

30

D24221

X

YOKE - adjusting

1шт.

31

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

32

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

2шт.

33

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

34

D25795

LEVER - brake, L.H., Includes: Ref. 35

1шт.

35

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, 3/16" str. drive

1шт.

36

G10848

SPRING

- return, brake lever

1шт.

40

D24198

PEDAL - equalizer, brake

1шт.

41

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

42

A38559

SHAFT - equalizer brake

1шт.

43

D24206

BUSHING

- flanged

2шт.

44

A38563

LEVER - equalizer, brake arm

2шт.

45

A38565

BUSHING - equalizer arm

2шт.

46

A37744

LEVER

- equalizer, brake pedal

1шт.

47

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

48

A38562

LINK - equalizer lever

1шт.

49

A38285

SPACER

- equalizer brake link

1шт.

50

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

51

A38566

LINK - equalizer brake lever

4шт.

52

A31204

PIN

- link, equalizer brake lever

4шт.

53

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

54

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Equalizer lever #A, 1/4" x 7/8"

1шт.

55

D24203

COLLAR - shaft retaining, Includes: Ref. 56

1шт.

56

178-81

SCREW - set, 1/2 x 1/2" N.C. socket hd. cone pt. Hex Soc, 1/2"-13 x 1/2"

1шт.

57

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.
