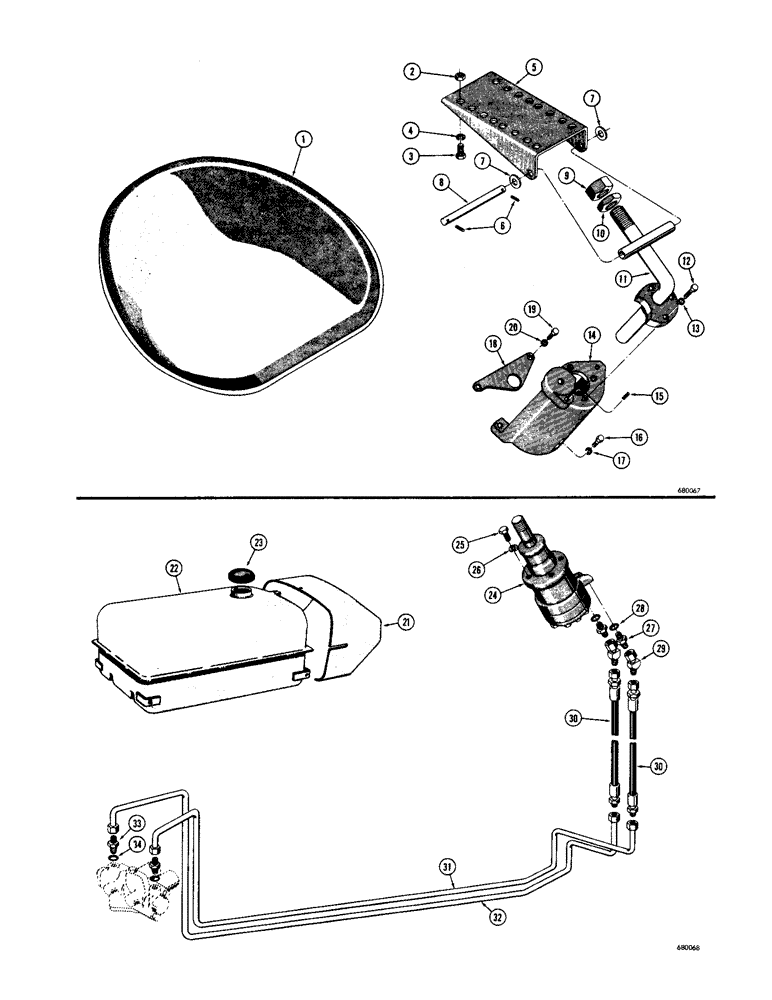

Запчасти Case 530 (40) - OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D24180

SEAT

- operators, fork lift

1шт.

2

25-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF)

4шт.

3

14-712

BOLT (MACHINE),Hex, 7/16" - 20 x 3/4", Gr 5, Full Thd

HHCS - 7/16" - 20 NF x 3/4"

4шт.

4

92-7

LOCK WASHER,7/16"

4шт.

D33163

SEAT SUPPORT ASSEMBLY

1шт.

5

D33733

PLATE - seat base

1шт.

6

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

7

95-8

WASHER,1/2"

- standard wrot 1/2"

2шт.

8

D33734

PIN - seat support

1шт.

9

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

1шт.

10

25-1516

NUT,Jam, 1"-14, G5

- hex., jam (1" - 14 NF)

1шт.

11

NSS

NOT SOLD SEPARAT

ROD - seat support

1шт.

12

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Seat base Hex, 7/16"-14 x 1 1/4", G5, Full Thd

3шт.

13

92-7

LOCK WASHER,7/16"

3шт.

14

A36151

SUPPORT - fork lift seat

1шт.

15

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

D33176

PLATE - seat torque

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A36161

COWL - at fuel tank, fuel tanks and steering hydraulics

1шт.

22

A36191

X

FUEL TANK - gasoline, fuel tanks and steering hydraulics

1шт.

A36190

X

FUEL TANK - diesel, fuel tanks and steering hydraulics

1шт.

23

A22451

CAP

- fuel tank and steering hydraulics

1шт.

24

A35579

PUMP

- manual (See model 530 Construction King Wheel Tractor parts catalog for parts list), fuel tanks and steering hydraulics

1шт.

24

A35579

PUMP

- manual (See model 530 Construction King Wheel Tractor parts catalog for parts list), fuel tanks and steering hydraulics

1шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", fuel tanks and steering hydraulics

4шт.

26

92-5

LOCK WASHER,5/16"

fuel tanks and steering hydraulics 5/16"

4шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, straight (At pump), fuel tanks and steering hydraulics

2шт.

29

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degrees, swivel, fuel tanks and steering hydraulics

2шт.

30

A36162

TUBE

HOSE - hydraulic, pump (To tube) 29" long, fuel tanks and steering hydraulics

2шт.

31

A36539

TUBE - hydraulic, hose to steering valve, R.H., fuel tanks and steering hydraulics

1шт.

32

A36538

TUBE - hydraulic, hose to steering valve, L.H., fuel tanks and steering hydraulics

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, straight (At valve), fuel tanks and steering hydraulics

2шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, fuel tanks and steering hydraulics

1шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring,fuel tanks and steering hydraulics

1шт.
