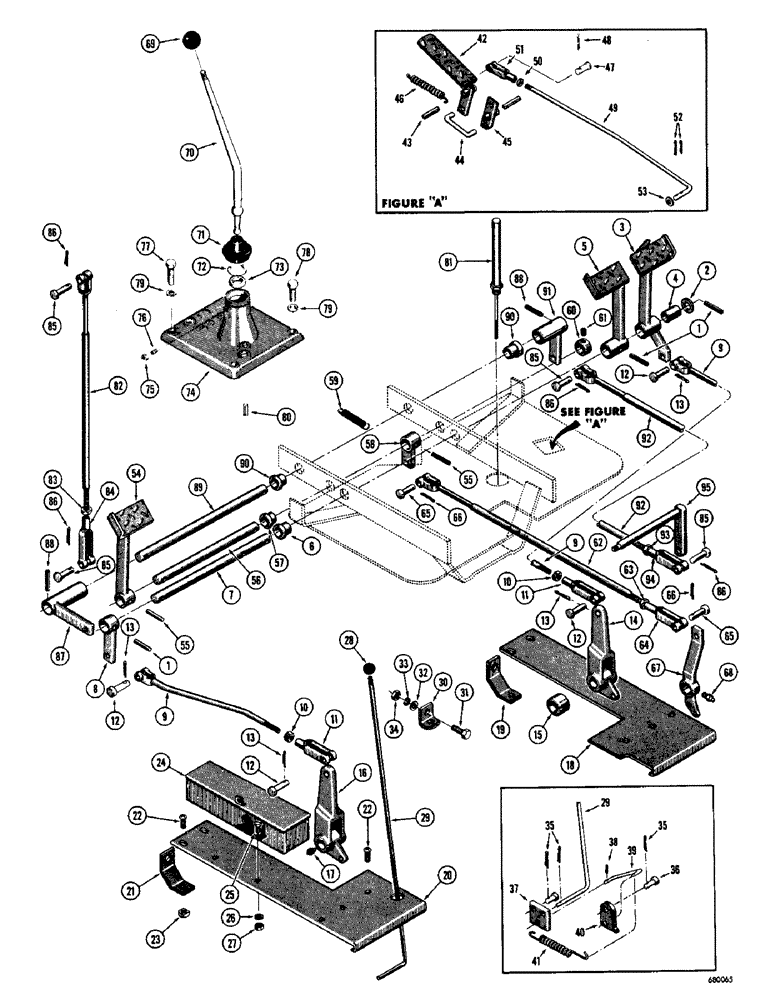

Запчасти Case 530 (36) - FOOT PEDALS, SHUTTLE, SHIFT AND LINKAGE, BRAKE PEDALS AND LINKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
138-138
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, 1/4" x 1 1/2", Slotted
3шт.
2
D33753
WASHER
- spacer
1шт.
3
D24205
PEDAL - brake, R.H.
1шт.
4
D26052
BUSHING - pedal
1шт.
5
D24204
PEDAL - brake, L.H.
1шт.
6
D24206
BUSHING
- flange
2шт.
7
D24201
SHAFT - pivot, brake pedal
1шт.
8
D24199
LEVER - brake, L.H. (At pivot shaft)
1шт.
9
D33162
ROD - brake, Serial Range: pedal-lever
2шт.
10
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
1шт.
11
D24221
X
YOKE - adjusting
1шт.
12
D24291
AXLE PIN
PIN - yoke
4шт.
13
132-47
COTTER PIN,1/8" x 7/8"
Pin, Split (Cotter), 1/8" x 7/8"
1шт.
14
D25794
LEVER - brake, R.H. (At brake housing)
1шт.
15
D24223
SPACER - brake lever, R.H.
1шт.
16
D25795
LEVER - brake, L.H. (At brake housing)
1шт.
17
219-13
LUBE NIPPLE,3/16" NPTF
FITTING - grease, straight (3/16" drive)
1шт.
18
D23176
STEP PLATE - R.H.
1шт.
19
A35171
SUPPORT
- step plate, R.H.
1шт.
20
A36196
STEP PLATE - L.H.
1шт.
21
A35170
SUPPORT
- step plate, L.H.
1шт.
22
175-413
SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"
- machine (Truss head) 5/16" - 18 NC x 3/4"
8шт.
23
1502286C2
NUT,Floating Cage, 5/16"-18
- retainer (5/16" - 18 NC)
8шт.
24
G13138
TOOL BOX
1шт.
25
13-68
SCREW,Hex, 3/8" - 16 x 1/2", Gr 5
HHCS - 3/8" - 16 NC x 1/2"
2шт.
26
92-6
LOCK WASHER,3/8"
2шт.
27
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
2шт.
28
G10776
KNOB - lever, brake lock
1шт.
29
A36232
LEVER - brake lock, brake lock
1шт.
30
A36231
BRACKET - brake lock
1шт.
31
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
Brake lock Hex, 3/8"-16 x 3/4", G5, Full Thd
1шт.
32
195-25
WASHER,3/8"
- plain (), brake lock 3/8"
1шт.
33
92-6
LOCK WASHER,3/8"
brake lock 3/8"
1шт.
34
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC), brake lock
1шт.
35
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), , Brake lock 1/8" x 1"
3шт.
36
A30119
AXLE PIN
PIN - pivot, pawl and pivot lever, brake lock
2шт.
37
A36230
LEVER - pivot, brake lock
1шт.
38
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), , Brake lock 3/32" x 5/8"
1шт.
38
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), , Brake lock 3/32" x 5/8"
1шт.
39
A36198
LINK - connecting, brake lock
1шт.
40
G16604
BRAKE LINE
PAWL - brake lock
1шт.
41
A36199
SPRING
- brake lock
1шт.
42
D24208
PEDAL
- foot throttle,foot throttle and linkage
1шт.
43
138-138
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, , Foot throttle and linkage 1/4" x 1 1/2", Slotted
2шт.
44
D24214
LINK - connecting, foot throttle and likage
1шт.
45
D24209
LEVER - pivot, foot throttle and linkage
1шт.
46
D24216
SPRING
- foot throttle, foot throttle and linkage
1шт.
47
D24213
PIN - yoke
1шт.
48
132-4
PIN - cotter, 1/16" dia. x 7/16"
1шт.
49
D33160
ROD - throttle
1шт.
50
25-104
NUT,1/4"-20, G5
1шт.
51
D24212
X
YOKE - adjusting
1шт.
52
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
53
95-5
WASHER,3/8" x 7/8" x .083"
- standard wrot (5/16")
1шт.
54
D24198
PEDAL - clutch, clutch pedal and linkage
1шт.
55
138-138
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, , Clutch pedal and linkage 1/4" x 1 1/2", Slotted
2шт.
56
D24200
SHAFT - pivot, clutch, clutch pedal and linkage
1шт.
57
D24206
BUSHING
- flange, clutch pedal and linkage
2шт.
58
D24202
LEVER - clutch, at pivot shaft, clutch pedal and linkage
1шт.
59
A36607
SPRING
- clutch return, clutch pedal and linkage
1шт.
60
D24203
COLLAR - shaft retaining, clutch pedal and linkage
1шт.
61
178-811
SCREW - set (5/16" - 18 NC x 5/16"), clutch pedal and linkage
1шт.
62
D33158
ROD - clutch,clutch pedal and linkage
1шт.
63
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF), clutch pedal and linkage
1шт.
64
D24221
X
YOKE - adjusting, clutch pedal and likage
1шт.
65
D24291
AXLE PIN
PIN - yoke, clutch pedal and linkage
2шт.
66
132-47
COTTER PIN,1/8" x 7/8"
Pin, Split (Cotter), , Clutch pedal and linkage 1/8" x 7/8"
1шт.
67
D28967
LEVER
- clutch, at transmission housing, clutch pedal and linkage
1шт.
68
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, Clutch pedal and linkage 1/4"-28 NPT x .54" lg
1шт.
69
A23885
KNOB
- gear shift
1шт.
70
A36152
LEVER - gear shift
1шт.
71
A26956
DUST CAP
COVER - dust, gear shift
1шт.
72
A26836
RING, SNAP
RING - snap, lever seat, gear shift
1шт.
73
A7923
SEAT
RING - seat, shaft lever, gear shift
1шт.
74
A36155
COVER
- transmission, gear shift
1шт.
75
25-146
JAM NUT,Jam, 3/8"-16, G5
- hex., jam (3/8" - 16 NC), gear shift
1шт.
76
G15468
SET SCREW,5/16" - 18 x 3/4"
- retaining, shift lever, gear shift
1шт.
77
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- 3/8" - 16 NC x 2", Gear shift
2шт.
78
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
HHCS - 3/8" - 16 NC x 1-1/2", gear shift
2шт.
79
92-6
LOCK WASHER,3/8"
gear shift 3/8"
4шт.
81
D33178
DIPSTICK - transmission, gear shift
1шт.
82
D33179
ROD - shuttle, at control tower, shuttle and linkage
1шт.
83
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF), shuttle and linkage
1шт.
84
D24221
X
YOKE - adjusting, shuttle and linkage
1шт.
85
D24291
AXLE PIN
PIN - yoke, shuttle and linkage
4шт.
86
132-47
COTTER PIN,1/8" x 7/8"
Pin, Split (Cotter), , Shuttle and linkage 1/8" x 7/8"
1шт.
87
D33727
LEVER - shuttle, L.H. (At pivot shaft), shuttle and linkage
1шт.
88
138-138
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, , Shuttle and linkage 1/4" x 1 1/2", Slotted
2шт.
89
D33728
SHAFT - pivot, shuttle, shuttle and linkage
1шт.
90
D24206
BUSHING
- flange, shuttle and linkage
2шт.
91
D33729
LEVER - shuttle, R.H. (At pivot shaft), shuttle and linkage
1шт.
92
D33164
ROD - shuttle, at transmission, shuttle and linkage
1шт.
93
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF), shuttle and linkage
1шт.
94
D24221
X
YOKE - adjusting, shuttle and linkage
1шт.
95
A36163
LEVER - shuttle control, at transmission, shuttle and linkage
1шт.
Выбрано товаров: 96
