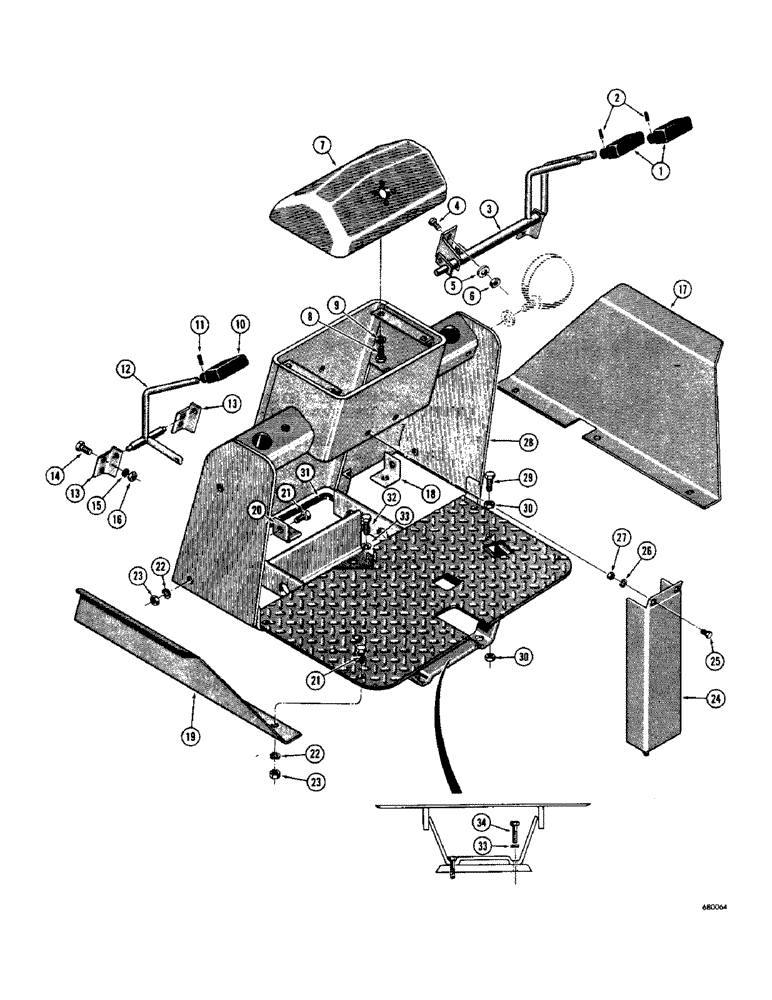

Запчасти Case 530 (34) - CONTROL TOWER AND RELATED PARTS (83) - TELESCOPIC SINGLE ARM

1

D24184

KNOB - lever

2шт.

2

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

3

D24183

LEVER SET - raise and tilt control

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

7

D33726

COVER - control tower

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

D24184

KNOB - lever

1шт.

11

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

12

D33732

LEVER

- shuttle control

1шт.

13

D33731

BRACKET - control mounting

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

D32713

FENDER - R.H.

1шт.

18

D33755

BRACKET - fender, R.H. (If used)

1шт.

19

D32712

FENDER - L.H.

1шт.

20

D33757

BRACKET - fender, L.H. (If used)

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6-8шт.

22

92-6

LOCK WASHER,3/8"

6-8шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6-8шт.

24

D33175

GUARD - steering

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

25-104

NUT,1/4"-20, G5

2шт.

28

D33180

TOWER - control, fork lift

1шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

30

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

31

D33855

TRIM - tower edge

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

33

92-6

LOCK WASHER,3/8"

6шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

2шт.
