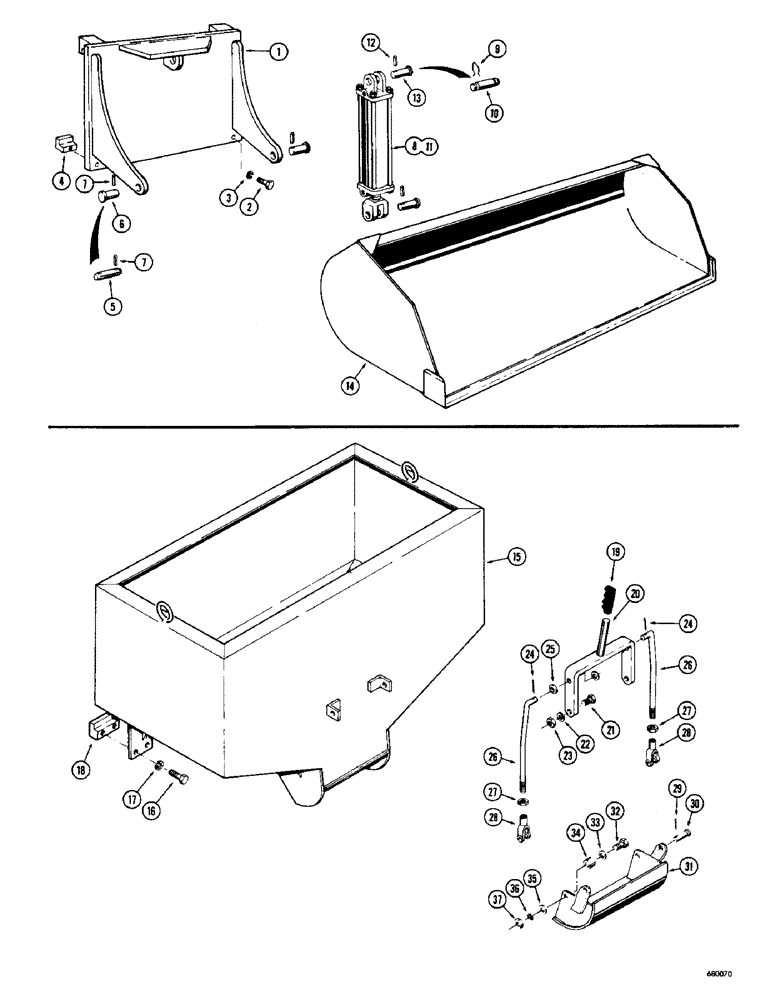

Запчасти Case 530 (32) - LOADER BUCKET, OPTIONAL ON STANDARD MASTS ONLY (83) - TELESCOPIC SINGLE ARM

1

D28180

FRAME - bucket support,loader bucket(optional on standard masts only)

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Loader bucket (optional on standard masts only) Hex, 5/8"-11 x 2", G5

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Loader bucket (optional on standard masts only) 5/8"

2шт.

4

D24261

BLOCK - clamp, loader bucket (optional on standard masts only)

2шт.

5

D28178

X

PIN - bucket mounting (When stock is exhausted, use D36819), loader bucket (optional on standard masts only)

2шт.

6

D36819

PIN,30.23mm OD x 111.25mm L

- bucket mounting, loader bucket (optional on standard masts only)

2шт.

7

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, , Loader bucket (optional on standard masts only) 1/4" x 1 3/4", Slotted

2-4шт.

8

D24080

CYLINDER - hydraulic, bucket (3" I.D. x 6" stroke) Early production (Parts list figure 60), loader bucket (optional on standard masts only)

1шт.

Early production loader bucket attachments can be identified by their tapered pipe thread-type fittings at the hydraulic cylinder ports. Late production loader bucket attachments can be identified by their O-ring-type fittings at the hydraulic cylinder ports.

1шт.

9

D24084

CLIP

- pin retaining (Use with D24083), loader bucket (optional on standard masts only)

1шт.

10

D24083

PIN

- cylinder mounting (When stock is exhausted use D36819), loader bucket (optional on standard masts only)

2шт.

11

D39464

CYLINDER ASSY.

CYLINDER - hydraulic, bucket (3" I.D. x 6" stroke) Late production (Parts list figure 70), loader bucket (optional on standard masts only)

1шт.

Early production loader bucket attachments can be identified by their tapered pipe thread-type fittings at the hydraulic cylinder ports. Late production loader bucket attachments can be identified by their O-ring-type fittings at the hydraulic cylinder ports.

1шт.

12

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, , Loader bucket (optional on standard masts only) 1/4" x 1 3/4", Slotted

2шт.

13

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting, loader bucket (optional on standard masts only)

2шт.

14

D28179

BUCKET - loader (1/2 cu. yard), loader bucket ( optional on standard masts only)

1шт.

15

D10545

BUCKET - cement, 1/2 cu. yard (Machinery item), cement bucket (optional on standard masts only)

1шт.

16

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS - 3/4" - 16 NF x 2-1/4", cement bucket (optional on standard masts only)

4шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Cement bucket (optional on standard masts only) 3/4"

4шт.

18

61035

BLOCK - clamp,cement bucket ( optional on standard masts only)

2шт.

19

31400

CLAMP

GRIP - handle, rubber, cement bucket (optional on standard masts only)

1шт.

20

65294

MOUNTING PLATE

HANDLE - discharge spout, cement bucket (optional on standard masts only)

1шт.

21

31383

BOLT - pivot, handle, cement bucket (optional on standard masts only)

2шт.

22

92-6

LOCK WASHER,3/8"

cement bucket (optional on standard masts only) 3/8"

2шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF), cement bucket (optional on standard masts only)

2шт.

24

132-148

COTTER PIN,1/4" x 1 1/4"

PIN - cotter, 1/8" dia. x 1", cement bucket (optional on standard masts only)

2шт.

25

195-33

WASHER,1/2"

- plain (), cement bucket ( optional on standard masts only) 1/2"

4шт.

26

65295

ROD - spout control, cement bucket (optional on standard masts only)

2шт.

27

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF), cement bucket (optional on standard masts only)

2шт.

28

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - control rod, cement bucket (optional on standard masts only)

2шт.

29

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Cement bucket (optional on standard masts only) 1/8" x 1"

2шт.

30

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke, 1/2" dia. x 1-25/64", cement bucket (optional on standard masts only)

2шт.

31

65293

SPOUT - discharge, cement bucket (optional on standard masts only)

1шт.

32

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS - 3/4" - 16 NF x 2", cement bucket (optional on standards masts only)

2шт.

33

195-53

WASHER,1" x 2" x .134"

- plain (1"), cement bucket (optional on standard masts only)

2шт.

34

61005

BUSHING - spout (9/16" long), cement bucket (optional on standard masts only)

BUSHING

2шт.

35

95-12

WASHER,3/4"

- standard wrot (), cement bucket (optional on standard masts only) 3/4"

2шт.

36

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Cement bucket (optional on standard masts only) 3/4"

2шт.

37

25-112

NUT

- med. sect. lock (3/4"), cement bucket (optional on standard masts only)

2шт.

37

25-112

NUT

- hex. (3/4" - 16 NF), cement bucket (optional on standard masts only)

2шт.
