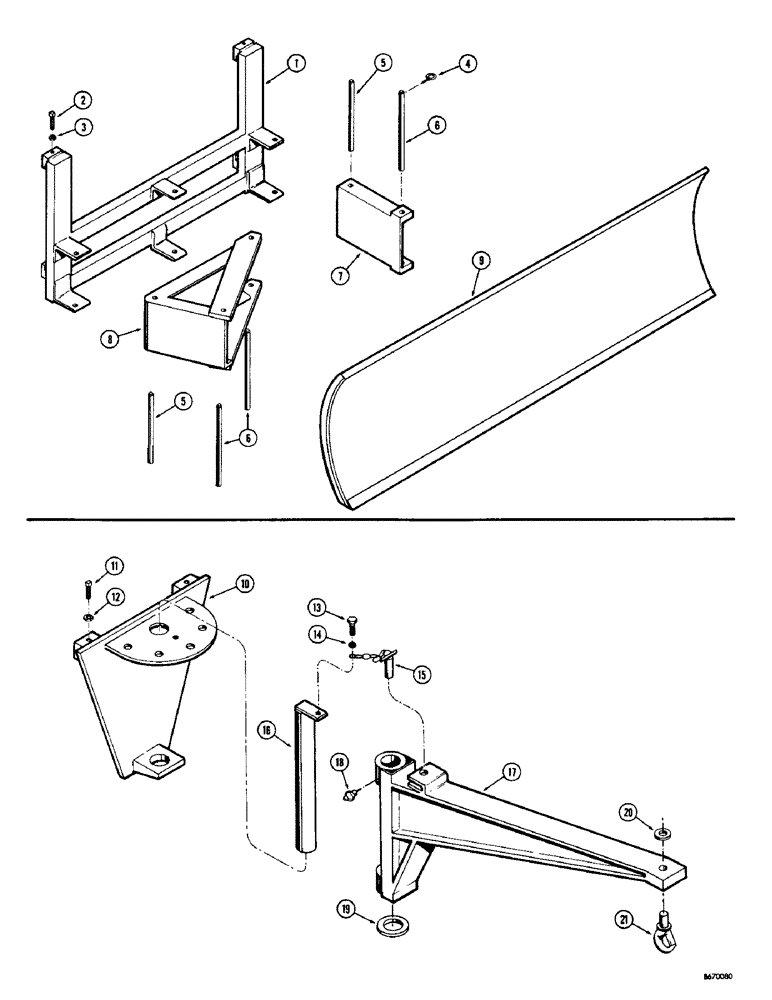

Запчасти Case 530 (30) - ANGLING DOZER BLADE, OPTIONAL ON STANDARD MASTS ONLY (83) - TELESCOPIC SINGLE ARM

1

D27865

FRAME - blade support,angling dozer blade (optional on standard masts only)

1шт.

2

181-715

SCREW - set, square head (5/8" - 11 NC x 3-1/2"), angling dozer blade (optional on standard masts only)

2шт.

3

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., jam (5/8" - 11 NC), angling dozer blade (optional on standard masts only)

2шт.

4

D27949

KLIK PIN - pin retaining, angling dozer blade (optional on standard masts only)

10шт.

5

D27862

PIN - mounting, 1" dia. x 14", angling dozer blade (optional on standard masts only)

2шт.

6

D27863

PIN - mounting, 1" dia. x 15-5/8", angling dozer blade (optional on standard masts only)

3шт.

7

D27864

BRACKET - blade support, angling dozer blade (optional on standard masts only)

1шт.

8

D27866

BRACKET - blade pivot, angling dozer blade (optional on standard masts only)

1шт.

9

D27861

BLADE - dozer, angling dozer blade (optional on standard masts only)

1шт.

10

D27050

HANGER - boom arm, crane boom (optional on standard masts only)

1шт.

11

181-713

SCREW - set, square head (5/8" - 11 NC x 3"), crane boom (optional on standard masts only)

2шт.

12

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., jam (5/8" - 11 NC), crane boom (optional on standard masts only)

2шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Crane boom (optional on standard masts only) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

crane boom (optional on standard masts only) 3/8"

1шт.

15

D27053

PIN - locking (Chain included), crane boom (optioal on standard masts only)

1шт.

16

D27052

PIN - pivot, crane boom (optional on standard masts only)

1шт.

17

D27054

ARM - boom, crane boom (optional on standard masts only)

1шт.

18

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight (3/16" drive), crane boom (optonal on standard masts only)

2шт.

19

D27051

PANEL

WASHER - pivot, special, crane boom (optional on standard masts only)

1шт.

20

60916

WASHER

- hook retaining, special, crane boom (optional on standard masts only)

1шт.

21

D27055

HOOK - boom, crane boom (optional on standard masts only)

1шт.
