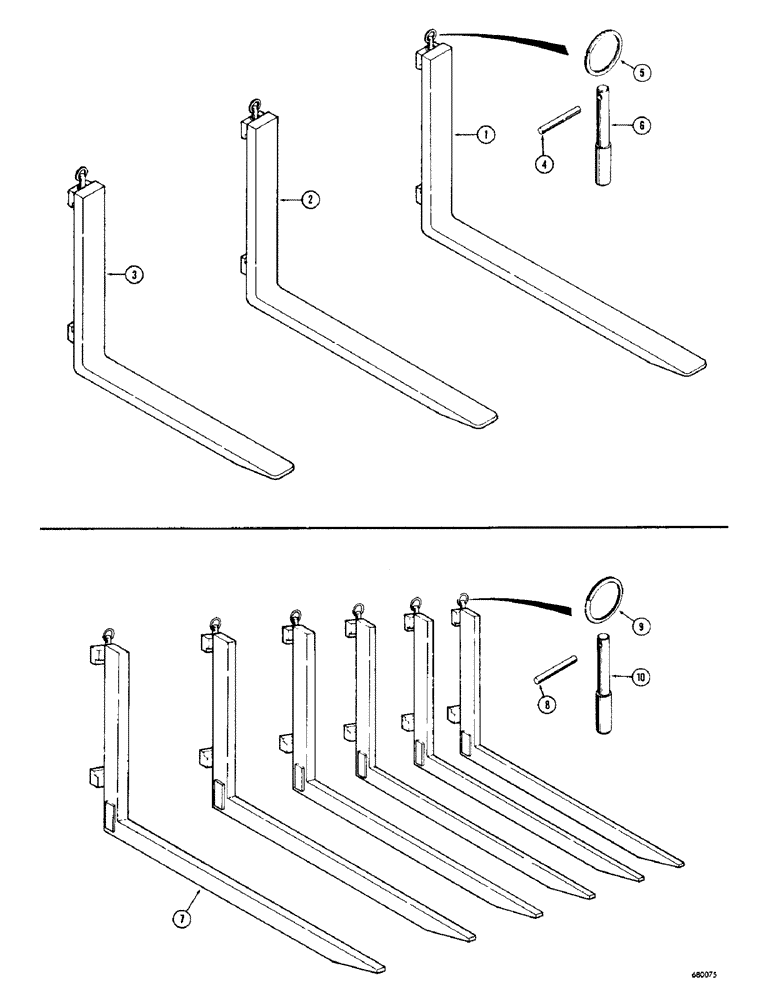

Запчасти Case 530 (28) - PALLET FORKS (83) - TELESCOPIC SINGLE ARM

1

D10464

FORK

- pallet, 48" length (Use on standard Masts), pallet forks

2шт.

D36809

FORK

- pallet, 48" length (Use on heavy duty Masts), pallet forks

2шт.

2

D10465

TINE

FORK - pallet, 42" length (Use on standard Masts), pallet forks

2шт.

3

D10466

FORK

- pallet, 36" length (Use on standard Masts), pallet forks

2шт.

4

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , If used, pallet forks 3/16" x 2", Slotted

1шт.

5

D41289

RING

- pin retaining (If used), pallet forks

1шт.

6

D38359

PIN,12.7mm OD x 95.25mm L

PIN - lock, fork positioning, pallet forks

1шт.

7

D10653

FORK

- cement block (Use with standard Masts), cement block forks (optional on standard masts only)

6шт.

8

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , If used, cement block forks (optional on standard masts only) 3/16" x 2", Slotted

1шт.

9

D41289

RING

- pin retaining (If used), cement block forks (optional on standard masts only)

1шт.

10

D38359

PIN,12.7mm OD x 95.25mm L

PIN - lock, fork positioning, cement block forks (optional on standard masts only)

1шт.

D52904

VALVE SPRING

return (Pallet Forks) & (Cement BLK), cement block forks (optional on standard massts only)

1шт.
