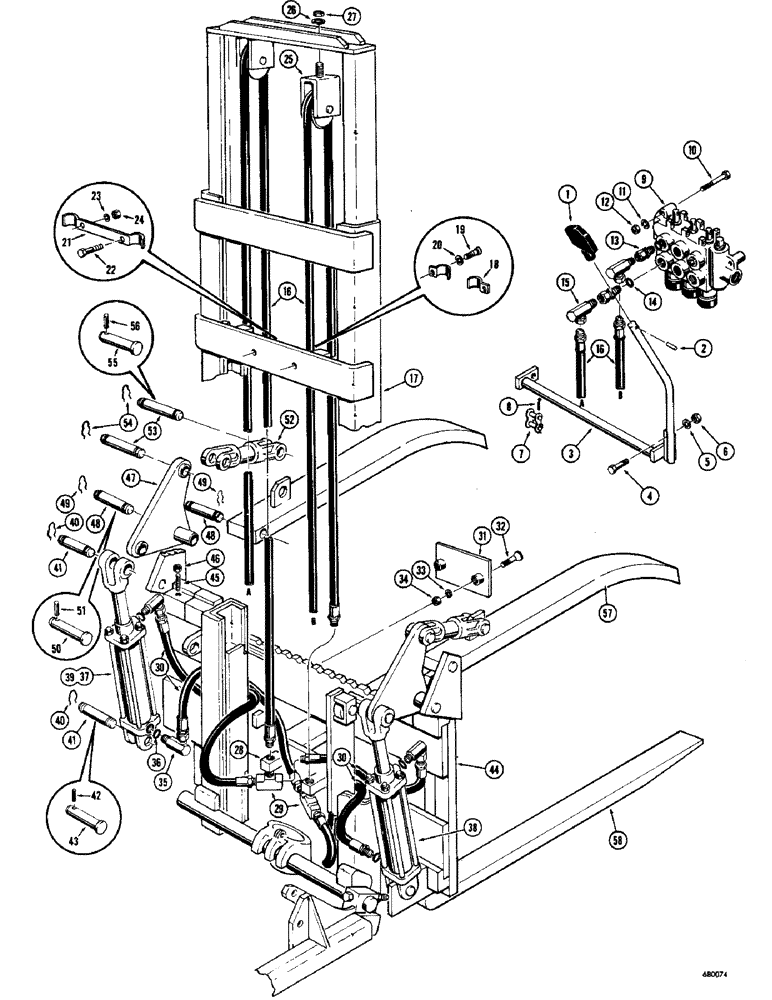

Запчасти Case 530 (24) - LOG CLAMP AND HYDRAULICS, STANDARD 10 FOOT 6 INCH AND 14 FOOT 3 INCH MASTS (83) - TELESCOPIC SINGLE ARM

D24288

LEVER

ASSEMBLY - log clamp control

1шт.

1

D24184

KNOB - lever

1шт.

2

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

7

D24140

LINK

- connecting

1шт.

8

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

9

D28968

VALVE

- hydraulic, control (Early production) Parts list figure 84

1шт.

Early and intermediate production log clamp attachments can be identified by their tapered pipe thread-type fittings at the cylinder ports. Late production log clamp attachments can be identified by their O-ring-type fittings at the cylinder ports.

1шт.

D39472

VALVE - hydraulic, control (Late production) Parts list page 86

1шт.

Early and intermediate production log clamp attachments can be identified by their tapered pipe thread-type fittings at the cylinder ports. Late production log clamp attachments can be identified by their O-ring-type fittings at the cylinder ports.

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

13

D39479

X

ADAPTER - straight, male (Late production only)

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring

1шт.

15

D24170

X

ADAPTER - 90 degrees, swivel

2шт.

16

D25231

HOSE - hydraulic, control valve to log clamp cylinder (176" long) Used on standard 10' 6" Mast only

2шт.

D25232

HOSE

- hydraulic, control valve to log clamp cylinder (216" long) Used on standard 14' 3" Mast only

2шт.

17

REF

INSTRUCTION

MAST ASSEMBLY - standard (See pages 8 and 10 for options)

1шт.

18

D24282

CLAMP - hose (Early production)

2шт.

19

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - hex. socket head (1/4" - 20 NC x 1")

2шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

D39478

CLAMP - hose (Late production)

1шт.

22

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

25

D24277

PULLEY

- hose guide

2шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

28

D24342

BLOCK - hose, retainer (Welded to lower backing plate)

2шт.

29

D34437

TEE

- at block

2шт.

30

D29834

HOSE - hydraulic, to log clamp cylinder (30" long)

4шт.

31

D34435

PLATE - hose guard

2шт.

32

64-640

SCREW - hex. socket head (3/8" - 16 NC x 2-1/2")

4шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

35

D34436

X

ADAPTER - 90 degrees, adjustable (Early production)

4шт.

D40825

FITTING

ELBOW - 90 degrees, adjustable (Late production)

4шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - O-ring

1шт.

37

D27002

CYLINDER - hydraulic, log clamp (3-1/2" I.D. x 6" stroke) Early production (Use D34438 or D34439) Includes items 40 and 41 (Parts list figure 64)

2шт.

38

D34438

X

CYLINDER - hydraulic, log clamp (R.H.) 3-1/2" I.D. x 6" stroke (Intermediate production) Includes items 40 and 41 (Parts list figure 66)

1шт.

Early and intermediate production log clamp attachments can be identified by their tapered pipe thread-type fittings at the cylinder ports. Late production log clamp attachments can be identified by their O-ring-type fittings at the cylinder ports.

1шт.

D40823

CYLINDER - hydraulic, log clamp (R.H. 3-1/2" I.D. x 6" stroke (Late production) Includes items 42 and 43 (Parts list figure 76)

1шт.

Early and intermediate production log clamp attachments can be identified by their tapered pipe thread-type fittings at the cylinder ports. Late production log clamp attachments can be identified by their O-ring-type fittings at the cylinder ports.

1шт.

39

D34439

X

CYLINDER - hydraulic, log clamp (L.H.) 3-1/2" I.D x 6" stroke (Intermediate production) Includes items 40 and 41 (Parts list figure 68)

1шт.

Early and intermediate production log clamp attachments can be identified by their tapered pipe thread-type fittings at the cylinder ports. Late production log clamp attachments can be identified by their O-ring-type fittings at the cylinder ports.

1шт.

D40824

CYLINDER - hydraulic, log clamp (l.H.) 3-1/2" I.D. x 6" stroke (Late production) Includes item 42 and 43 (Parts list figure 78)

1шт.

Early and intermediate production log clamp attachments can be identified by their tapered pipe thread-type fittings at the cylinder ports. Late production log clamp attachments can be identified by their O-ring-type fittings at the cylinder ports.

1шт.

40

D24084

CLIP

- retaining, mounting (Use with D24083)

4шт.

41

D24083

PIN

- cylinder mounting (When stock is exhausted use D36819)

2шт.

42

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Use with D36819 1/4" x 2", Slotted

2шт.

43

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.

44

D28953

HANGER - log clamp

2шт.

45

D34440

SCREW - set, special

2шт.

46

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., jam (5/8" - 11 NC)

2шт.

47

D28949

PLATE - link

2шт.

48

D28952

PIN - pivot, clamp hanger to link plate and clamp arm (When stock is exhausted, use D40826)

4шт.

49

D24084

CLIP

- pin retainer (Use with D28952)

8шт.

50

D40826

PIN - pivot, clamp hanger to link plate and clamp arm

4шт.

51

138-142

LOCK PIN,1/4" x 2", Slotted

PIN - roll, 1/2" dia. x 2"

4шт.

52

D28950

LINK - connecting, link plate to clamp arm

2шт.

53

D24267

PIN - pivot, connecting link to link plate and clamp arm (When stock is exhausted, use D36819)

4шт.

54

D24084

CLIP

- pin retainer (Use with D24267)

8шт.

55

D36819

PIN,30.23mm OD x 111.25mm L

- pivot, connecting link to link plate and clamp arm

4шт.

56

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

4шт.

57

D28954

ARM - log clamp

2шт.

58

REF

INSTRUCTION

FORKS - pallet (See figure 28 for component parts)

2шт.
