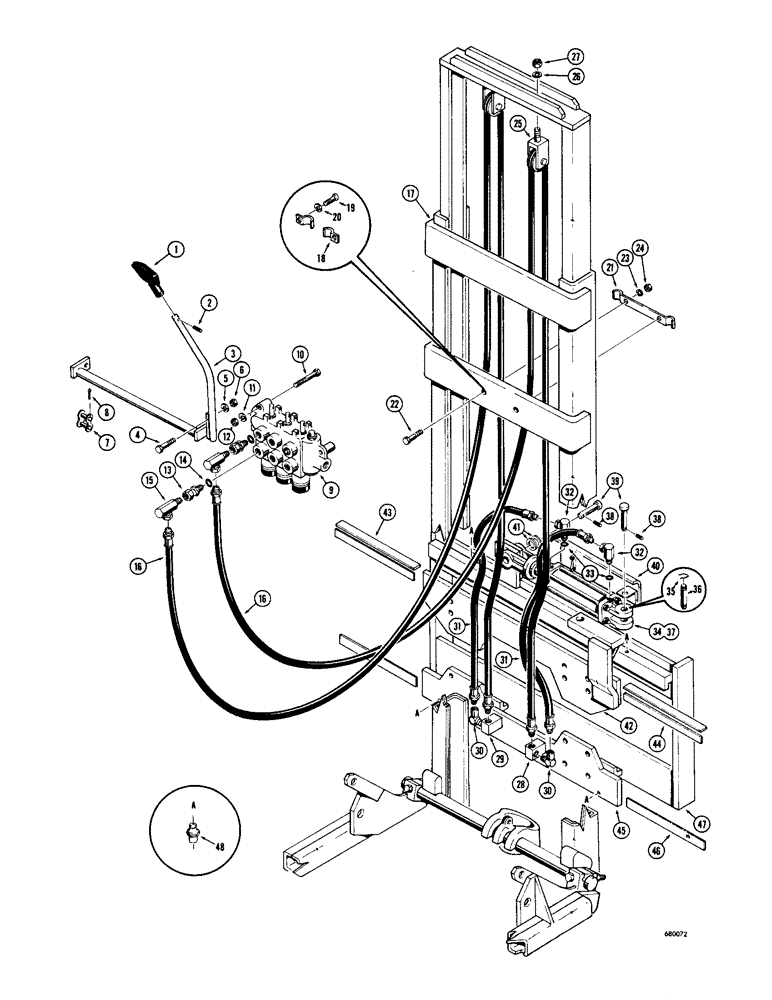

Запчасти Case 530 (20) - SIDE SHIFTER AND HYDRAULICS, STANDARD 10 FOOT 6 INCH AND 14 FOOT 3 INCH MASTS (83) - TELESCOPIC SINGLE ARM

D24288

LEVER

ASSY - side shift control

1шт.

1

D24184

SPARE PART Lever

1шт.

2

138-57

LOCK PIN,1/8" x 3/4", Slotted

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

2шт.

7

D24140

LINK

SPARE PART Connecting

1шт.

8

132-6

COTTER PIN,1/16" x 5/8"

2шт.

9

D28968

VALVE

Hyd., control (Early production) (Parts list figure 84)

1шт.

Early production has NPT fittings. Late production has O-ring fittings at valve and cylinder ports.

1шт.

D39472

VALVE - hyd., control (Late production) (Parts list figure 86)

1шт.

Early production has NPT fittings. Late production has O-ring fittings at valve and cylinder ports.

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

3шт.

13

D39479

X

ADAPTER - straight, male (Late production only)

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

15

D24170

X

ADAPTER - 90 degrees, swivel

2шт.

16

D25231

HOSE - hydraulic, control valve to side shift cylinder (176" long) Used on standard 10' 6" Mast only

2шт.

D25232

HOSE

Hydraulic, control valve to side shift cylinder (216" long) Used on standard 14' 3" Mast only

2шт.

17

REF

INSTRUCTION

MAST ASSEMBLY - std. (See pages 8 and 10 for options)

1шт.

18

D24282

CLAMP - hose (Early production)

2шт.

19

61-416

HEX SOC SCREW,1/4"-20 x 1"

2шт.

20

92-4

LOCK WASHER,1/4"

2шт.

21

D39478

SPARE PART Hose (Late production)

1шт.

22

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

D24277

PULLEY

Hose guide

2шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

1шт.

28

D28150

BLOCK - hose retainer (Welded to lower backing plate) R.H.

1шт.

29

D28148

BLOCK - hose retainer (Welded to lower backing plate) L.H.

1шт.

30

R14868

X

ELBOW - 90 degrees, street

2шт.

31

D29834

SPARE PART Plate to cylinder (30" long)

2шт.

D26362

CYLINDER AND GUARD

1шт.

32

D24312

X

ADAPTER - 90 degrees, swivel (Early production)

2шт.

D40196

X

ELBOW - 90 degrees, adjustable (Late production)

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL (D40196 elbow only)

1шт.

34

D24102

CYLINDER - hydraulic, side shift (2-1/2" I.D. x 6" stroke) Early production (Parts list figure 62)

1шт.

Early production has NPT fittings. Late production has O-ring fittings at valve and cylinder ports.

1шт.

35

D24084

CLIP

Retaining use with D24083

4шт.

36

D24083

PIN

Cylinder mounting (When stock is exhausted use D36819)

2шт.

37

D40197

CYLINDER

Hydraulic, side shift (2-1/2" I.D. x 6" stroke) Late production (Parts list figure 74)

1шт.

Early production has NPT fittings. Late production has O-ring fittings at valve and cylinder ports.

1шт.

38

138-142

LOCK PIN,1/4" x 2", Slotted

2шт.

39

D36819

PIN,30.23mm OD x 111.25mm L

Cylinder mounting

2шт.

40

D26363

GUARD - cylinder

1шт.

41

60916

WASHER

Spacer

2шт.

42

D29828

PLATE - backing upper

1шт.

43

D32575

PLATE - wear, brass (1/8" x 7/8" x 16")

2шт.

44

D32576

PLATE - wear, brass (1/8" x 3/4" x 16")

2шт.

45

D29832

PLATE - backing, lower

1шт.

46

D29833

PLATE - wear, brass (1/8" x 1-1/4" x 16")

2шт.

47

D29831

FRAME - side shifting

1шт.

48

219-13

LUBE NIPPLE,3/16" NPTF

4шт.
