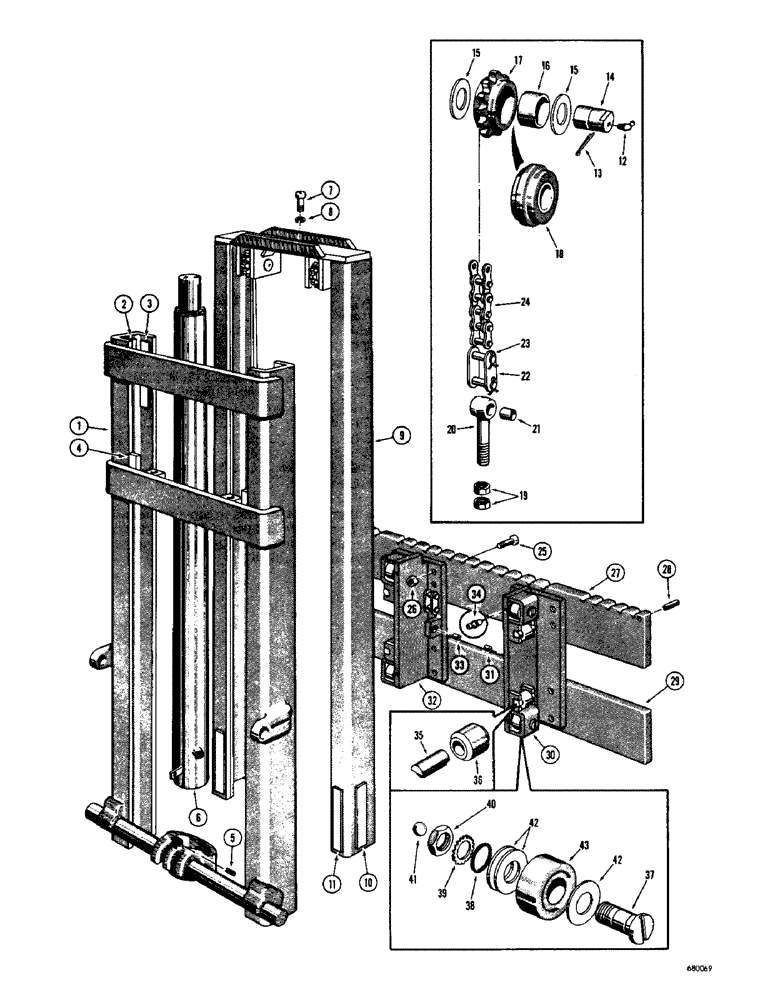

Запчасти Case 530 (16) - MAST AND RELATED PARTS, HEAVY DUTY 12 FOOT MAST (83) - TELESCOPIC SINGLE ARM

D34546

MAST - compete, 12' heavy duty

1шт.

1

D36567

CHANNEL - outer

1шт.

2

D32555

PAD

PLATE - wear, brass (1/8" x 1-1/4" x 5")

2шт.

3

D27365

PAD

PLATE - wear, brass (3/16" x 1-1/4" x 10")

4шт.

4

D41505

WEAR PAD

PLATE - wear, brass (3/16" x 1/2" x 4-1/2")

2шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

6

D36571

CYLINDER - hydraulic, lift (3-1/2" I.D. x 72" stroke) Parts list figure 56

1шт.

7

62-824

HEX SOC SCREW,1/2"-20 x 1 1/2"

SCREW - hex. socket head (1/2" - 20 NF x 1-1/2")

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

D36569

X

CHANNEL ASSEMBLY - inner (Used before Mast S/N 5556) (Also include items 12 thru 17)

1шт.

D39480

CHANNEL

- inner (Used on Mast S/N 5556 and after)

1шт.

10

D27362

WEAR PAD

PLATE - wear, brass (1/8" x 1-1/4" x 10")

2шт.

11

D27365

PAD

PLATE - wear, brass (3/16" x 1-1/4" x 10")

4шт.

12

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 67-1/2 degrees (3/16" drive)

2шт.

13

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

14

D36584

PIN

- sprocket wheel

2шт.

15

D36582

WASHER

- thrust

4шт.

16

D36585

BEARING

- sprocket wheel (Used before Mast S/N 5556)

2шт.

17

D36583

WHEEL - sprocket, chain guide (Used before Mast S/N 5556)

2шт.

18

D39482

SUPPORT,1.75" ID x 4.3" OD x 1.51"

WHEEL - chain guide (Used on Mast S/N 5556 and after)

2шт.

19

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

4шт.

20

D36575

EYEBOLT

BOLT - eye, chain anchor

2шт.

21

D39476

BUSHING

- eye bolt

1шт.

22

D36579

LINK

- connecting

4шт.

23

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

24

D36577

CHAIN - lift, roller (Used before Mast S/N 5556)

2шт.

D39483

CHAIN (AG)

CHAIN - lift, rollerless (Used on Mast S/N 5556 and after)

2шт.

25

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - hex. socket head (1/2" - 13 N.C. x 1-3/4")

16шт.

26

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

16шт.

27

D36580

LARGE PLATE

PLATE - backing, upper

1шт.

28

138-190

LOCK PIN,7/16" x 2", Slotted

PIN, 7/16" x 2", Slotted

2шт.

29

D36581

LARGE PLATE

PLATE - backing, lower

1шт.

30

D36587

CARRIAGE ASSEMBLY - R.H.

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

31

D39476

BUSHING

- chain anchor

1шт.

32

D36588

CARRIAGE ASSEMBLY - L.H.

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

33

D39476

BUSHING

- chain anchor

1шт.

34

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight (3/16" drive)

4шт.

35

D36589

PIN,25.4mm OD x 69.85mm L

- side roller

4шт.

36

D36590

ROLLER

- side

4шт.

D36591

KIT

AXLE KIT - load roller

4шт.

37

NSS

NOT SOLD SEPARAT

AXLE - load roller

1шт.

38

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-ring

1шт.

39

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

40

D39470

NUT - hex., jam (3/4" - 16 NF)

1шт.

41

NSS

NOT SOLD SEPARAT

BALL - steel, 3/16" dia.

1шт.

42

D36592

WASHER

- thrust

12шт.

43

D36593

ROLLER

- load

4шт.
