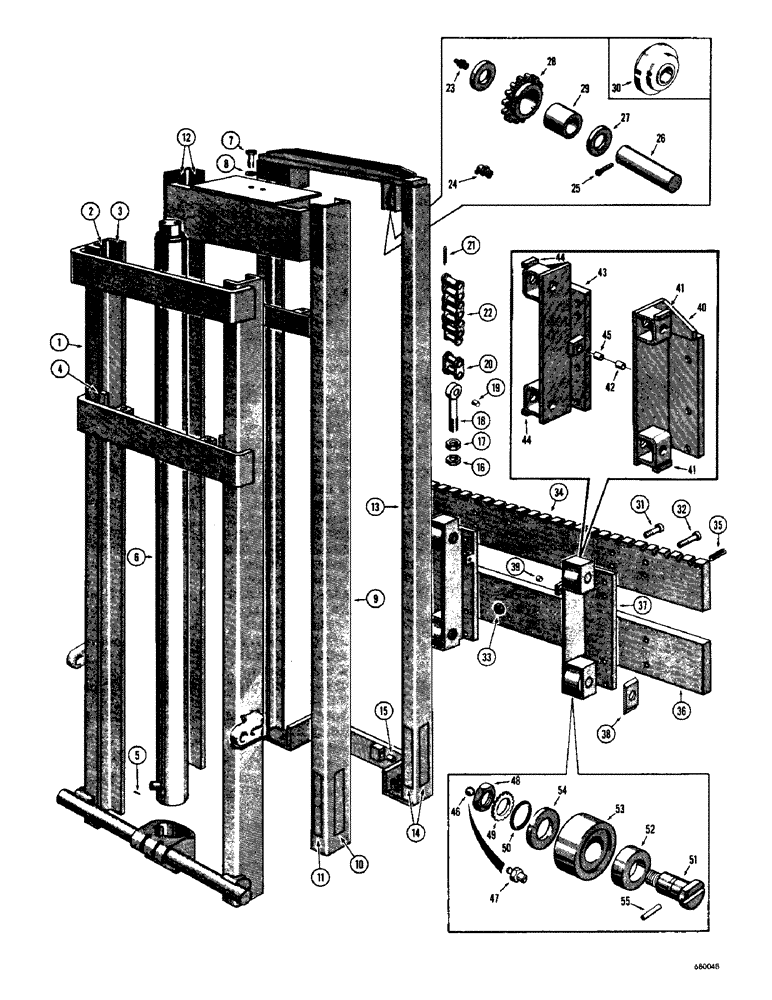

Запчасти Case 530 (12) - MAST AND RELATED PARTS, STANDARD 21 FOOT 6 INCH MAST (83) - TELESCOPIC SINGLE ARM

D24238

MAST - complete, standard (21' 6")

1шт.

1

D24333

CHANNEL - outer

1шт.

2

D27364

WEAR PAD

PLATE - wear, brass (1/8" x 1-1/4" x 6")

2шт.

3

D27363

WEAR PAD

PLATE - wear, brass (3/16" x 1-1/4" x 6")

4шт.

4

D41505

WEAR PAD

PLATE - wear, brass (3/16" x 1/2" x 4-1/2")

2шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

6

D24175

CYLINDER - hydraulic, lift (4-3/4" I.D. x 85-1/2" stroke) Parts list figure 58

1шт.

7

62-824

HEX SOC SCREW,1/2"-20 x 1 1/2"

SCREW - hex. socket head (1/2" - 20 NF x 1-1/2")

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

D24334

CHANNEL

- center

1шт.

10

D27362

WEAR PAD

PLATE - wear, brass (1/8" x 1-1/4" x 10")

2шт.

11

D27365

PAD

PLATE - wear, brass (3/16" x 1-1/4" x 10")

4шт.

12

D27364

WEAR PAD

PLATE - wear, brass (1/8" x 1-1/4" x 6")

6шт.

13

D24335

CHANNEL

- inner

1шт.

14

D27362

WEAR PAD

PLATE - wear, brass (1/8" x 1-1/4" x 10")

6шт.

15

D26196

BUSHING

- chain anchor

2шт.

16

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4" - 16 NF)

4шт.

17

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

4шт.

18

D26200

BOLT

BOLT - eye, chain anchor

4шт.

19

D26196

BUSHING

- eye bolt, chain anchor

1шт.

20

D32583

LINK

- connecting

8шт.

21

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

22

D26201

CHAIN - lift, roller (Outer channel to inner channel) Used before Mast S/N 3473 (121 links)

1шт.

D26199

CHAIN - lift, roller (Center channel to carriage) Used before Mast S/N 3473 (113 links)

2шт.

D24870

LINK

- chain, roller (#80 chain)

1шт.

D34447

CHAIN (AG)

CHAIN - lift, rollerless (Outer channel to inner channel) Mast S/N 3473 and after (121 links)

2шт.

D34446

CHAIN

- lift, rollerless (Center channel to carriage) Mast S/N 3473 and after (113 links)

2шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, If used 1/4"-28 NPT x .54" lg

2-4шт.

24

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degrees (1/4 NPT) If used

2-4шт.

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 67-1/2 degrees (3/16" drive) If used

4шт.

25

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

4шт.

26

NLS

NO LONGER SERVICED

- guide wheel

4шт.

27

60944

THRUST WASHER

- thrust

8шт.

28

60942

WHEEL - sprocket, chain guide (Used before Mast S/N 3473)

4шт.

29

60943

BEARING - sprocket (Used with 60942 sprocket)

4шт.

30

D32588

SPROCKET ASSY.

WHEEL - chain guide (Mast S/N 3473 and after)

4шт.

31

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

SCREW - hex. socket head (l/2" - 13 NC x 1-1/4") Use with D28946 and D28947 carriages only)

8шт.

32

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - hex. socket head (1/2" - 13 NC x 1-3/4")

8-1шт.

33

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

16шт.

34

D24324

PLATE

- backing, upper (See page 22, Ref. 40, for backing plate used with side shifter)

1шт.

35

138-190

LOCK PIN,7/16" x 2", Slotted

PIN, 7/16" x 2", Slotted

2шт.

36

D24325

LARGE PLATE

PLATE - backing, lower (See page 23, Ref. 43, for backing plate used with side shifter)

1шт.

37

D28946

SUPPORT ASSY.

CARRIAGE ASSEMBLY - R.H. (Used before Mast S/N 5815)

1шт.

Carriages must be aligned and drilled at time of installation. Service option: To replace D28946 R.H. and D28947 L.H. carriages with new sytle, order (1) D39697, (1) D39698, (4) 60917, (4) 60915, (4) 60916, (4) D39699 and (4) 138-65.

1шт.

D28947

CARRIAGE ASSEMBLY - L.H. (Used before Mast S/N 5815)

1шт.

Carriages must be aligned and drilled at time of installation. Service option: To replace D28946 R.H. and D28947 L.H. carriages with new sytle, order (1) D39697, (1) D39698, (4) 60917, (4) 60915, (4) 60916, (4) D39699 and (4) 138-65.

1шт.

38

D28943

PLATE - wear, carriage

2шт.

39

D26196

BUSHING

- chain anchor

1шт.

40

D39697

CARRIAGE ASSEMBLY - R.H. (Mast S/N 5815 and after)

1шт.

Carriages must be aligned and drilled at time of installation. Service option: To replace D28946 R.H. and D28947 L.H. carriages with new sytle, order (1) D39697, (1) D39698, (4) 60917, (4) 60915, (4) 60916, (4) D39699 and (4) 138-65.

1шт.

41

D41503

BLOCK

WEAR BLOCK - carriage

2шт.

42

D26196

BUSHING

- chain anchor

1шт.

43

D39698

CARRIAGE ASSEMBLY - L.H. (Mast S/N 5815 and after)

1шт.

Carriages must be aligned and drilled at time of installation. Service option: To replace D28946 R.H. and D28947 L.H. carriages with new sytle, order (1) D39697, (1) D39698, (4) 60917, (4) 60915, (4) 60916, (4) D39699 and (4) 138-65.

1шт.

44

D41503

BLOCK

WEAR BLOCK - carriage

2шт.

45

D26196

BUSHING

- chain anchor

1шт.

D36811

KIT

AXLE KIT - load roller (Used in D28946 and D28947 carriages)

4шт.

D39699

CENTER AXLE

AXLE KIT - load roller (Used in D39697 and D39698 carriages)

4шт.

46

211-5

BALL,3/16" Dia

- steel, . 3/16" Dia

1шт.

47

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight (3/16" drive)

1шт.

48

D39477

NUT

- special

1шт.

49

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", D36811 kit only

1шт.

50

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

SEAL - "O" ring (D36811 kit only)

1шт.

51

NSS

NOT SOLD SEPARAT

AXLE - load roller

1шт.

52

60916

WASHER

- spacer

4шт.

53

60915

BEARING

ROLLER - load

4шт.

54

60917

THRUST WASHER

WASHER - thrust

4шт.

55

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Used on D39697 and D39698 carriages only 1/8" x 1 1/2", Slotted

4шт.
