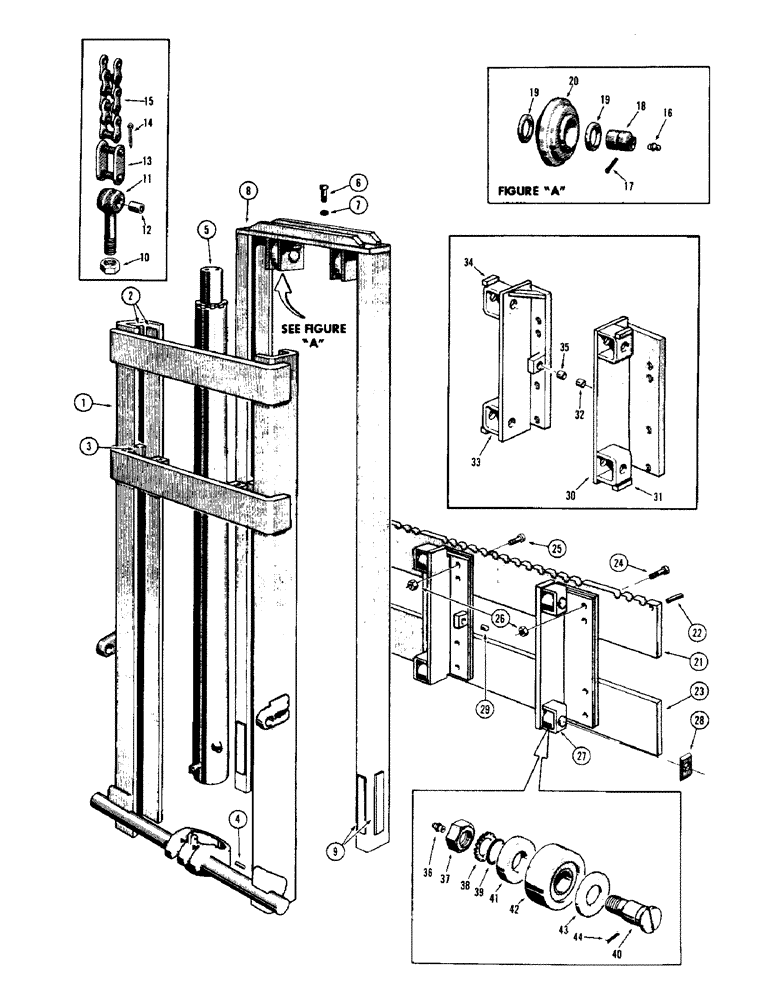

Запчасти Case 530 (10) - MAST AND RELATED PARTS, STANDARD 14 FOOT 3 INCH MAST (83) - TELESCOPIC SINGLE ARM

D32276

MAST - complete, standard (14' 3")

1шт.

1

D32574

CHANNEL - outer

1шт.

2

60972

STRIP

PLATE - wear, brass (1/8" x 1-1/4" x 11")

6шт.

3

D41505

WEAR PAD

PLATE - wear, brass (3/16" x 1/2" x 4-1/2")

2шт.

4

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

5

60969

CYLINDER - hydraulic, lift (3-1/2" I.D. x 85-1/2" stroke) Parts list figure 58

1шт.

6

62-824

HEX SOC SCREW,1/2"-20 x 1 1/2"

SCREW - hex. socket head (1/2" - 20 NF x 1-1/2")

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

60958

CHANNEL - inner

1шт.

9

60972

STRIP

PLATE - wear, brass (1/8" x 1-1/4" x 11")

6шт.

10

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

11

60948

EYEBOLT,1/2" - 20 x 4 5/8"

BOLT - eye, chain anchor

2шт.

12

D26196

BUSHING

- eye bolt

1шт.

13

D32583

LINK

- connecting

4шт.

14

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

15

D32587

CHAIN - lift, rollerless

2шт.

16

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 67-1/2 degrees (3/16" drive)

2шт.

17

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

18

60939

PIN

- guide wheel

2шт.

19

60944

THRUST WASHER

- thrust

4шт.

20

D32588

SPROCKET ASSY.

WHEEL - chain guide

2шт.

21

D24234

PLATE - backing, upper (See page 20, Ref. 42, for backing plate used with side shifter)

1шт.

22

138-190

LOCK PIN,7/16" x 2", Slotted

PIN, 7/16" x 2", Slotted

2шт.

23

D24325

LARGE PLATE

PLATE - backing, lower (See page 20, Ref. 44, for backing plate used with side shifter)

1шт.

24

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

SCREW - hex. socket head (1/2" - 13 NC x 1-1/4") Use with D28944 and D28945 carriages only

8шт.

25

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - hex. socket head (1/2" - 13 NC x 1-3/4")

8-1шт.

26

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

16шт.

27

D28944

CARRIAGE ASSEMBLY - R.H. (Used before Mast S/N 5867)

1шт.

Carriages must be aligned and drilled at time of installation. Service option: To replace D28944 R.H. and D28945 L.H. carriages with new style, order (1) D39703, (1) D39704, (4) 60917, (4) 60915, (4) 60916, (4) 138-65, (4) D39699 and (8) 61-828.

1шт.

D28945

CARRIAGE ASSEMBLY - L.H. (Used before Mast S/N 5867)

1шт.

Carriages must be aligned and drilled at time of installation. Service option: To replace D28944 R.H. and D28945 L.H. carriages with new style, order (1) D39703, (1) D39704, (4) 60917, (4) 60915, (4) 60916, (4) 138-65, (4) D39699 and (8) 61-828.

1шт.

28

D28943

PLATE - wear, carriage

2шт.

29

D26196

BUSHING

- chain anchor

1шт.

30

D39703

CARRIAGE ASSEMBLY - R.H. (Mast S/N 5867 and after)

1шт.

Carriages must be aligned and drilled at time of installation. Service option: To replace D28944 R.H. and D28945 L.H. carriages with new style, order (1) D39703, (1) D39704, (4) 60917, (4) 60915, (4) 60916, (4) 138-65, (4) D39699 and (8) 61-828.

1шт.

31

D41503

BLOCK

WEAR BLOCK - carriage

2шт.

32

D26196

BUSHING

- chain anchor

1шт.

33

D39704

CARRIAGE ASSEMBLY - L.H. (Mast S/N 5867 and after)

1шт.

Carriages must be aligned and drilled at time of installation. Service option: To replace D28944 R.H. and D28945 L.H. carriages with new style, order (1) D39703, (1) D39704, (4) 60917, (4) 60915, (4) 60916, (4) 138-65, (4) D39699 and (8) 61-828.

1шт.

34

D41503

BLOCK

WEAR BLOCK - carriage

2шт.

35

D26196

BUSHING

- chain anchor

1шт.

D36811

KIT

AXLE KIT - load roller (Used in D28944 and D28945 carriages only)

4шт.

D39699

CENTER AXLE

AXLE KIT - load roller (Used in D39703 and D39704 carriages only)

4шт.

36

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight (3/16" drive)

1шт.

37

D39477

NUT

- special

1шт.

38

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", D36811 kit only

1шт.

39

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

SEAL - O-ring (D36811 kit only)

1шт.

40

NSS

NOT SOLD SEPARAT

AXLE - load roller

1шт.

41

60916

WASHER

- spacer

4шт.

42

60915

BEARING

ROLLER - load

4шт.

43

60917

THRUST WASHER

WASHER - thrust

4шт.

44

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Used on D39703 and D39704 carriages only 1/8" x 1 1/2", Slotted

4шт.
