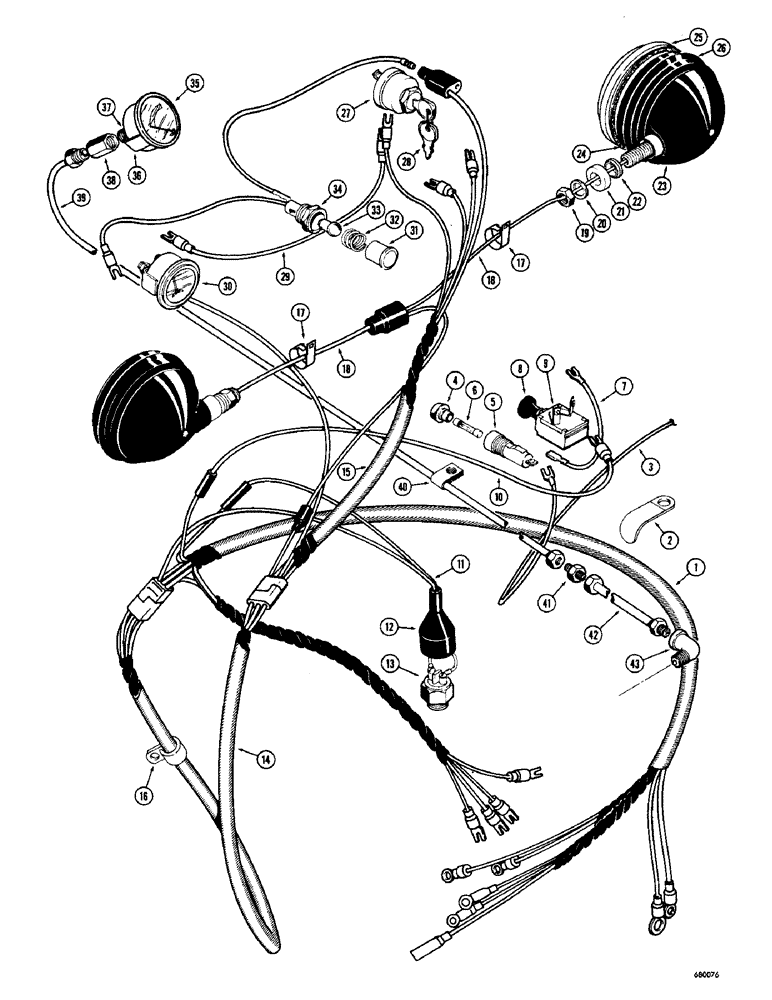

Запчасти Case 530 (42) - INSTRUMENTS AND WIRING, DIESEL AND GASOLINE (55) - ELECTRICAL SYSTEMS

1

A36159

HARNESS - wiring, main front

1шт.

2

A22883

CLIP

- cable

1шт.

3

A36166

WIRE - regulator to fuse holder

1шт.

A22874

HOLDER

ASSEMBLY - fuse

1шт.

4

A10958

CAP

- fuse holder

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - fuse holder

1шт.

6

223-20

FUSE,20 Amp, Type SFE

- 20 amp

1шт.

7

A22875

ELECTRICAL WIRE

WIRE - fuse holder to light switch

1шт.

G13142

IGNITION SWITCH

SWITCH - light

1шт.

8

G13141

KNOB

- light switch

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

10

A36168

WIRE - light, Serial Range: switch-harness

1шт.

11

A35039

WIRE - neutral starts switch

1шт.

12

A20991

BOOT

- dust seal

1шт.

13

A20990

SWITCH

- safety, neutral start

1шт.

A36156

HARNESS - wiring, main rear

1шт.

14

A36158

HARNESS - wiring, lower half

1шт.

15

A36157

HARNESS - wiring, upper half

1шт.

16

A26696

NO LONGER SERVICED

CLIP - cable

4шт.

17

A35803

CLAMP

STRAP -, Serial Range: harness-tower

2шт.

18

A33642

WIRE - harness to head lamp

2шт.

19

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

A36318

SPACER - head lamp

2шт.

A33641

HEAD LAMP

2шт.

22

10923

WASHER

- bearing, head lamp

1шт.

23

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY

1шт.

A24572

LAMP

KIT - sealed beam

1шт.

24

A11276

GASKET

- sealed beam

1шт.

25

A11280

LAMP

- sealed beam

1шт.

26

B50285

RING

- rubber, resilient

1шт.

27

A24510

SWITCH

AND KEY - electrical (Diesel) Set of 2

1шт.

A24511

SWITCH

AND KEY - ignition, electrical w/key (Gasoline)

1шт.

28

A24509

KEY

- ignition start, Set of 2 (See A20621)

1шт.

A20621

KEY

- switch, pair (Indak) Used before tractor S/N 8201105

1шт.

29

A36167

WIRE - switch to temperature gauge

1шт.

30

A24080

GAUGE

- engine temperature

1шт.

A35035

LAMP - warning, generator

1шт.

31

NSS

NOT SOLD SEPARAT

LENS - warning lamp

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - warning lamp

1шт.

33

A24354

BULB

- warning lamp

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - warning lamp

1шт.

35

G45317

X

GAUGE - oil pressure, diesel engine

1шт.

A30326

GAUGE

- oil pressure, gasoline engine

1шт.

36

G46227

CLAMP - oil pressure gauge (Not included with G45317)

1шт.

37

225-14112

NUT,#12-24

- hex. (#12 - 24 NC) Not included with G45317

2шт.

38

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - female (1/8" NPT)

1шт.

39

A11327

DECAL

TUBE - oil line, Serial Range: gauge-fitting

1шт.

40

A26649

CLIP - oil line

3шт.

41

222-1

UNION

FITTING - flex tube (1/8" NPT)

1шт.

42

A23263

X

TUBE - oil line, Serial Range: fitting-engine

1шт.

43

222-460

ELBOW - 45 degrees, tube to engine (1/8" NPT)

1шт.
