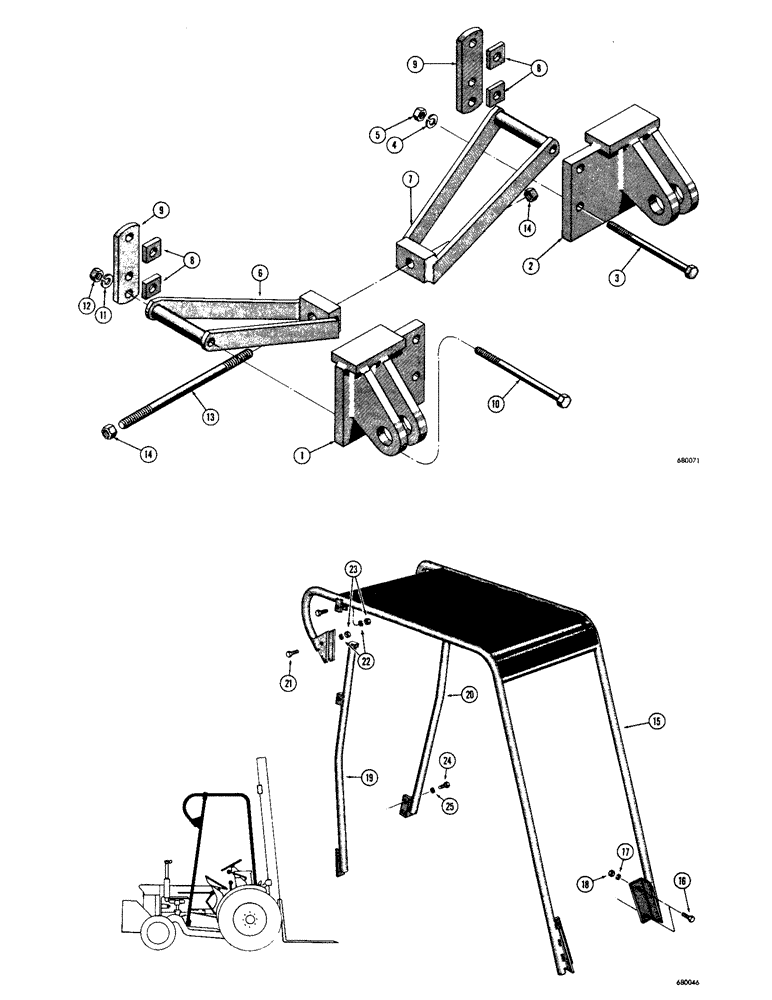

Запчасти Case 530 (06) - TRUSS ROD PARTS (39) - FRAMES AND BALLASTING

1

D29629

BRACKET - subframe to axle housing, R. H., truss rod parts

1шт.

2

D29630

BRACKET - subframe to axle housing, L.H., truss rod parts

1шт.

3

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

Truss rod parts Hex, 5/8"-11 x 8", G5

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Truss rod parts 5/8"

8шт.

5

25-1010

NUT,5/8"-11, G5

Truss rod parts 5/8"-11, G5

8шт.

6

D29552

BRACKET - truss rod, R.H., truss rod parts

1шт.

7

D29553

BRACKET - truss rod, L.H., truss rod parts

1шт.

8

D24059

SPACER - bolt, truss rod parts

4шт.

9

D29556

BRACKET - truss rod mounting, truss rod parts

2шт.

10

13-10136

CAPSCREW,Hex, 5/8" - 11 x 8 1/2", Gr 5

HHCS - 5/8" - 11 NC x 8-1/2", truss rod parts

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Truss rod parts 5/8"

2шт.

12

25-1010

NUT,5/8"-11, G5

Truss rod parts 5/8"-11, G5

2шт.

13

D29555

ROD - truss, truss rod parts

1шт.

14

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC), truss rod parts

2шт.

15

D24152

GUARD - overhead,overhead guard

1шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Overhead guard Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

overhead guard 1/2"

4шт.

18

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), overhead guard

4шт.

19

D33172

SUPPORT - overhead guard, R.H., overhead guard

1шт.

20

D33171

SUPPORT - overhead guard, L.H., overhead guard

1шт.

21

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Overhead guard Hex, 1/2"-13 x 3 1/4", G5

4шт.

22

92-8

LOCK WASHER,1/2"

overhead guard 1/2"

4шт.

23

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), overhead guard

4шт.

24

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Overhead guard Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Overhead guard 5/8"

4шт.
