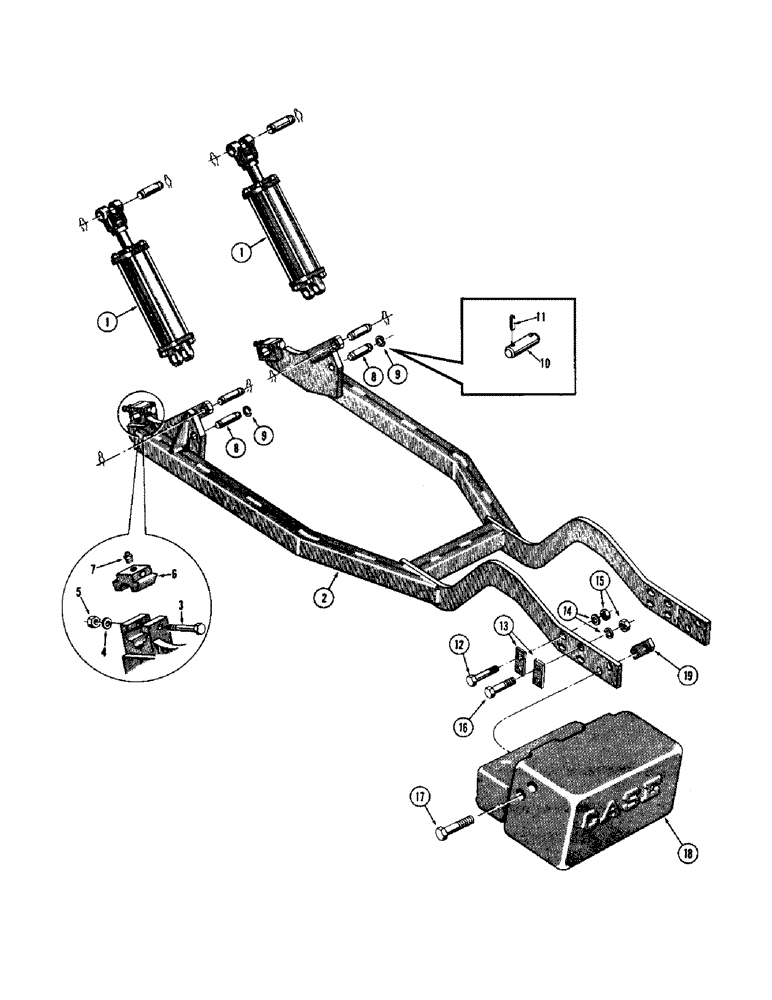

Запчасти Case 530 (04) - SUBFRAME AND RELATED PARTS (39) - FRAMES AND BALLASTING

1

D24080

CYLINDER - hydraulic, tilt (3" I.D. x 6" stroke) Early production 21' 6" (Parts list figure 60)

2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic control valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic control valve and cylinder ports.

1шт.

D39464

CYLINDER ASSY.

CYLINDER - hydraulic, tilt (3" I.D. x 6" stroke) Late production 21' 6" mast (Parts list figure 70)

2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic control valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic control valve and cylinder ports.

1шт.

D27002

CYLINDER - hydraulic, tilt (3-1/2" I.D. x 10" stroke) Early production 10' 6", 12' and 14' 3" masts (Parts list figure 64)

2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic control valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic control valve and cylinder ports.

1шт.

D39465

CYLINDER ASSY.

CYLINDER - hydraulic, tilt (3-1/2" I.D. x 10" stroke) Late production 10' 6", 12' and 14' 3" masts (Parts list figure 72)

2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic control valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic control valve and cylinder ports.

1шт.

2

D33159

SUBFRAME - fork lift (Diesel models)

1шт.

D33157

SUBFRAME - fork lift (Gasoline models)

1шт.

3

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/8"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

6

D33173

WEDGE - trunnion, early production (When stock is exhausted use D38366 trunnion wedge)

2шт.

D38366

WEDGE - trunnion, late production

2шт.

7

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight (3/16" drive)

2шт.

8

D24147

PIN

- mounting, subframe (Early production) When stock is exhausted use (1) D34430 mounting pin and (2) 138-142

2шт.

9

D24148

RING, SNAP

RING - retaining, early production (Use with D24147 mounting pin)

4шт.

10

D34430

PIN

- mounting, subframe (Late production)

2шт.

11

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Use with D34430 mounting pin 1/4" x 2", Slotted

4шт.

12

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(Early production) Hex, 5/8"-11 x 3", G5

4шт.

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

(Late production) Hex, 5/8"-11 x 2 1/4", G5

4шт.

13

D33174

PLATE - spacer

4шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

15

25-1010

NUT,5/8"-11, G5

8шт.

16

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

17

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

18

D32691

COUNTERWEIGHT - rear, 2200 lbs.

1шт.

19

D33292

PLATE - bolt mounting

2шт.
