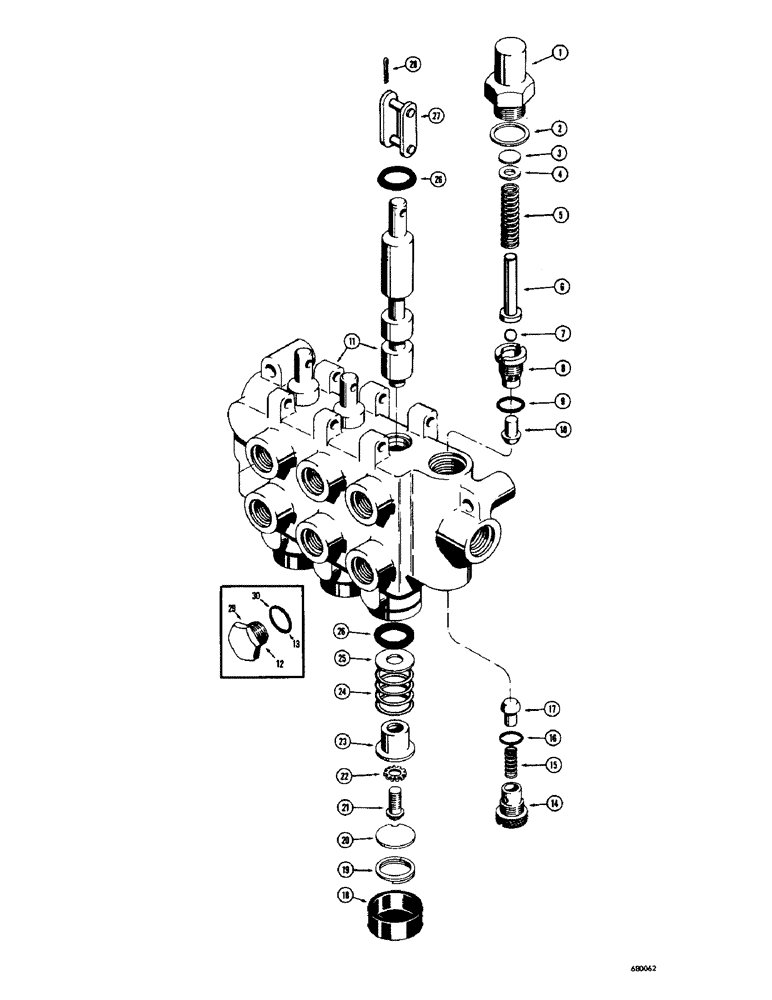

Запчасти Case 530 (86) - D39472 HYDRAULIC CONTROL VALVE (35) - HYDRAULIC SYSTEMS

D39742

ROD

VALVE - hydraulic, fork lift control (Late production)

1шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic control valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic control valve and cylinder ports.

1шт.

1

D28961

BODY - relief valve

1шт.

2

34115

GASKET

- relief valve body

1шт.

3

D28960

SHIN

SHIM - relief valve spring (.006" thick)

1шт.

4

D25844

SHIM,.0097" Thk

Relief valve spring .0097" Thk

1шт.

5

D25841

SPRING

- relief valve

1шт.

6

D26379

POPPET - relief

1шт.

7

211-12

BALL,7/16 Dia

- steel

1шт.

8

D28575

SEAT

- relief valve

1шт.

9

D23928

O-RING

SEAL - O-ring, valve seat

1шт.

10

D28576

VALVE POPPET

POPPET - check

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOLS - matched set

1шт.

12

86512512

PLUG,7/8" - 14 ORB

Valve port Hex Hd, 7/8"-14 ORB

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring

1шт.

14

D28574

PLUG

- check poppet

1шт.

15

D28840

SPRING

- check poppet

1шт.

16

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL - O-ring, check poppet plug ( replaced D23932 )

1шт.

17

D28576

VALVE POPPET

POPPET - check

1шт.

18

36645

CAP

- rubber

3шт.

19

36633

LID

SNAP RING - stop disc

3шт.

20

663023R1

CAP

- stop

3шт.

21

36626

HOSE CLIP

BOLT - spring

3шт.

22

36628

LOCK WASHER

- lock

3шт.

23

36630

DRAWBAR SUPPORT

- stop

3шт.

24

36632

SPRING

- centering

3шт.

25

36650

WASHER

- stop

3шт.

26

36642

SEAL

- spool

6шт.

27

D24140

LINK

- connecting

3шт.

28

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

29

86512512

PLUG,7/8" - 14 ORB

Valve port (Use in lieu of accessory hydraulics) Hex Hd, 7/8"-14 ORB

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring

1шт.
