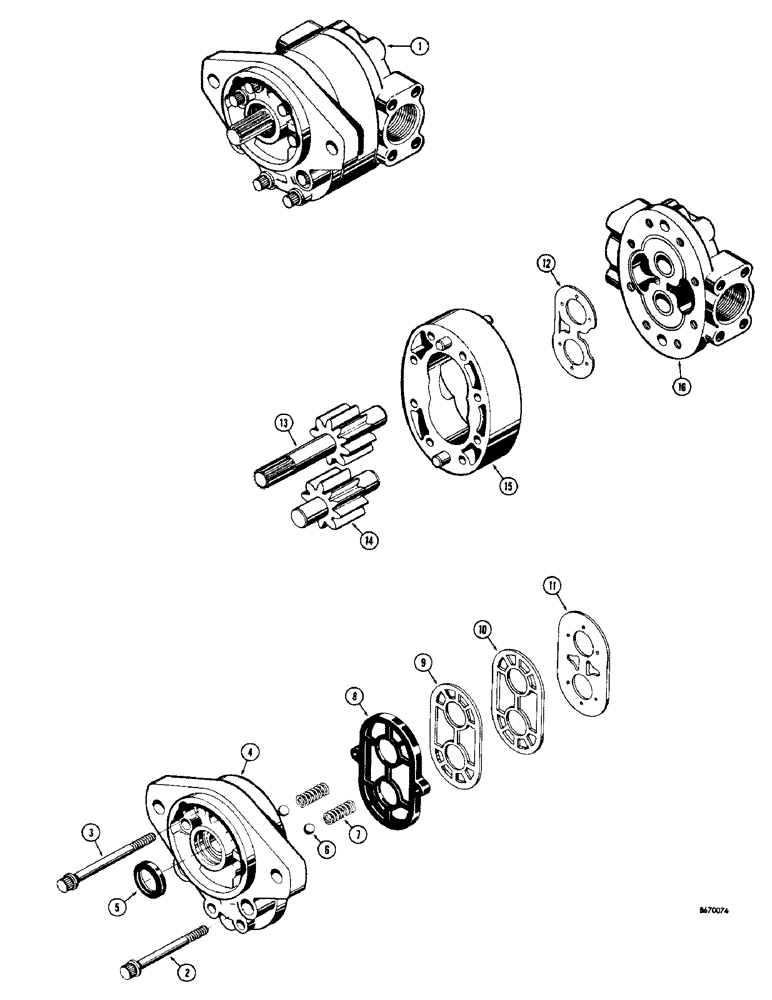

Запчасти Case 530 (82) - D41390 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

D41390

PUMP

PUMP - hydraulic, 20 G.P.M. at 1900 R.P.M. at 1600 P.S.I.

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

87644746R

REMAN-HYD PUMP

530 CASE CONSTRUCTION KING FORKLIFT

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/4")

4шт.

3

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/2")

4шт.

4

D31395

PLATE ASSY.

COVER - drive shaft end

1шт.

D41318

KIT

KIT - pump, rebuild

1шт.

5

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - drive shaft

1шт.

6

D31404

BALL

BALL - steel (13/32" dia.)

2шт.

7

D31403

SPRING

SPRING - ball retaining

2шт.

8

D31397

SEAL

SEAL - diaphragm

1шт.

9

A41244

GASKET

GASKET - backup

1шт.

10

D31398

SPARE PART GASKET - protector

1шт.

11

D41321

DIAPHRAGM

DIAPHRAGM - pump

1шт.

12

D41322

PLATE

PLATE - thrust

1шт.

D41421

GEAR-SET

GEAR SET

1шт.

13

NSS

NOT SOLD SEPARAT

DRIVESHAFT AND GEAR - pump

1шт.

14

NSS

NOT SOLD SEPARAT

IDLER SHAFT AND GEAR - pump

1шт.

15

D31408

SPARE PART

HOUSING - gear

1шт.

16

D31407

PLATE ASSY.

COVER - port end

1шт.
