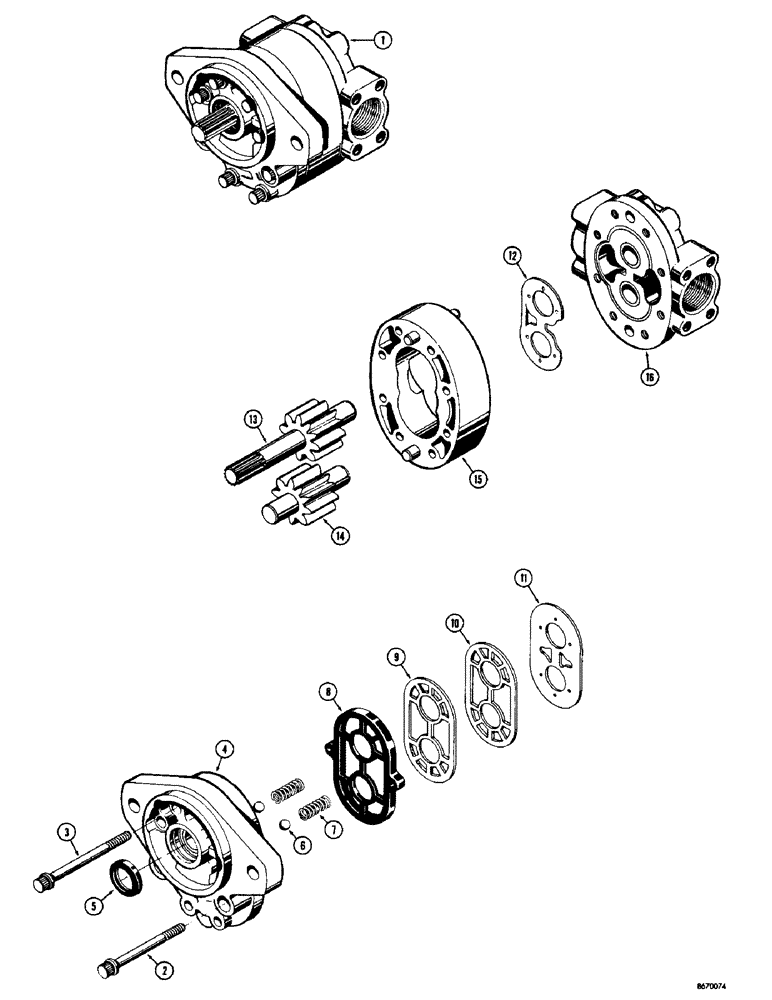

Запчасти Case 530 (80) - D31254 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

D31254

X

PUMP - hydraulic, 20 G.P.M. at 1900 R.P.M. at 1600 P.S.I. (When stock is exhausted, use D41390 ref. no. 1 figure 82)

1шт.

2

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/4")

4шт.

3

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 3-1/2")

4шт.

4

D31395

PLATE ASSY.

COVER - drive shaft end

1шт.

D31396

KIT

- pump, rebuild (When stock is exhausted, use D41318 see figure 82)

1шт.

5

D31401

X

SEAL - drive shaft (When stock is exhausted, use A25139 ref. no. 5 figure 82)

1шт.

6

D31404

BALL

- steel 13/32" dia.

2шт.

7

D31403

SPRING

- ball retaining

2шт.

8

D31397

SEAL

- diaphragm

1шт.

9

D39319

GASKET

- backup (When stock is exhausted use A41244, ref. no. 9 figure 82)

1шт.

10

D31398

- protector

1шт.

11

D31400

DIAPHRAGM

- pump (When stock is exhausted use D41321, ref. no. 11 figure 82)

1шт.

12

D31402

PLATE - thrust (When stock is exhausted, use D41322 ref. no. 12 figure 82)

1шт.

13

D31405

SPARE PART

DRIVE SHAFT AND GEAR - pump (Also order D31406 when replacing drive shaft and gear) When stock is exhausted use D41421 gear set (See figure 82 ref. no. 13)

1шт.

14

D31406

SPARE PART

IDLER SHAFT AND GEAR - pump (Also order D31405 when replacing idler shaft and gear) When stock is exhausted, use D41421 gear set (See figure 82 ref. no. 14)

1шт.

15

D31408

SPARE PART

HOUSING - gear

1шт.

16

D31407

PLATE ASSY.

COVER - port end

1шт.
