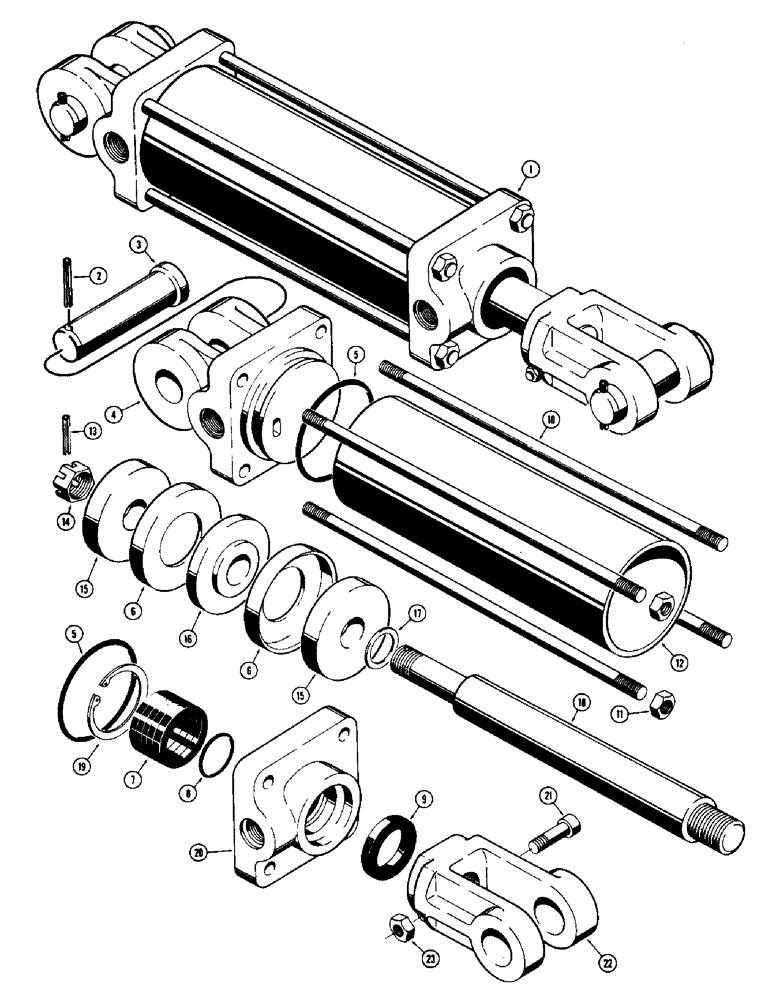

Запчасти Case 530 (72) - D39465 TILT CYLINDER (35) - HYDRAULIC SYSTEMS

1

D39465

CYLINDER ASSY.

CYLINDER ASSEMBLY - tilt, 3-1/2" (89MM) ID x 10" (254MM) stroke, used as tilt cylinder on all late production forklifts, except those with 21' 6" standard Mast

2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

2

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

3

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.

4

D39469

CLEVIS

CAP - cylinder, closed end

1шт.

D24127

PACKAGE,SERVICE

KIT - cylinder packing

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - end cap

2шт.

6

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

7

NSS

NOT SOLD SEPARAT

PACKING - piston, set of 5

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

10

D24138

TIE ROD - cylinder

4шт.

11

25-108

NUT,1/2"-13, G5

- hex., 1/2" - 13 NC

8шт.

12

D24130

TUBE - cylinder

1шт.

13

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

14

25-2316

SLOTTED NUT

CASTLE NUT - hex, 1" - 14 NF

1шт.

15

D24133

SPACER - cup

2шт.

16

D24132

PISTON

- cylinder

1шт.

17

D24135

GASKET - piston

1шт.

18

D28360

ROD

- piston

1шт.

19

D24092

SNAP RING - retaining, packing

1шт.

20

D39468

CAP - cylinder, rod end

1шт.

21

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 1-3/4"

1шт.

22

D24097

CLEVIS

- piston rod

1шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
