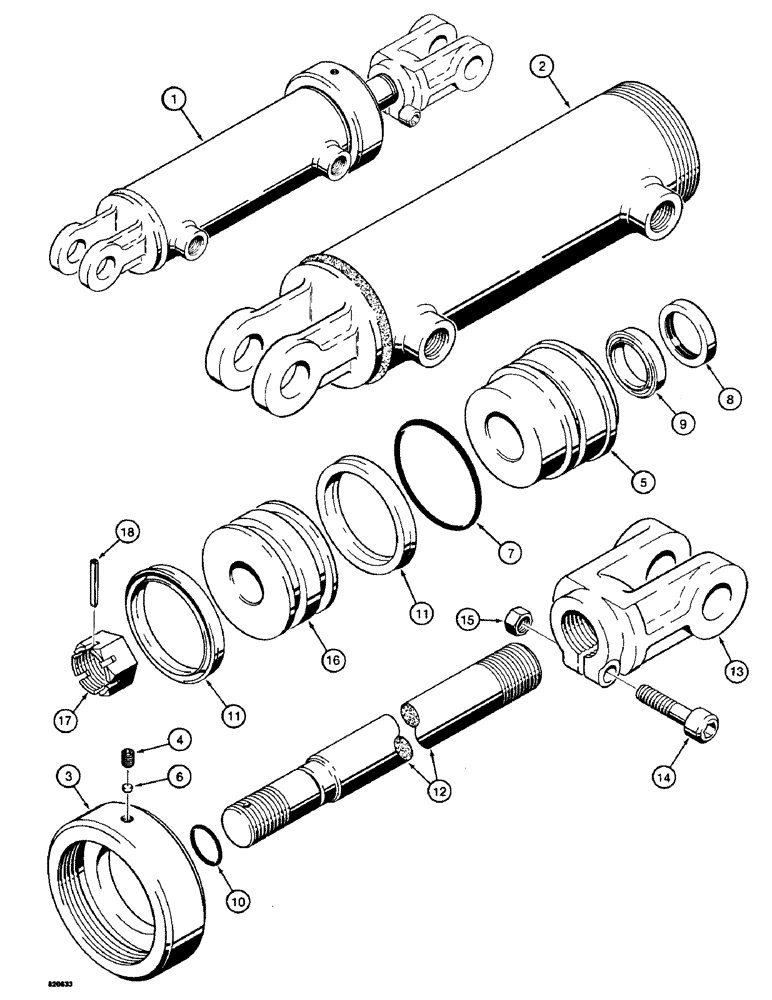

Запчасти Case 530 (71A) - N7631 TILT AND LOADER BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

N7631

CYLINDER

ASSYMBLY - hydraulic, tilt or loader bucket, 3" (76MM) ID x 6" (152MM) stroke used on late production 21' 6" standard Mast as tilt cylinder and on all late production loader bucket attachments as bucket cylinder

1-2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

2

N7632

TUBE - cylinder

1шт.

3

T55472

HEAD

CAP - gland

1шт.

4

178-424

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- hex. socket, 1/4" - 20 NC x 1/4"

1шт.

5

N7634

GLAND - cylinder

1шт.

N7637

SEAL KIT

- seal

1шт.

6

T55068

PLUG

- nylon

1шт.

7

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- end cap, gland

1шт.

8

B17291

WIPER SEAL

WIPER - piston rod

1шт.

9

N7639

U-CUP - gland

1шт.

10

D32114

O-RING,0.75" ID x 0.875" OD

- piston

1шт.

11

N7638

U-CUP - piston

2шт.

12

N7635

ROD - piston, 1-1/4" (32 MM) OD

1шт.

13

D61015

FORK

CLEVIS - piston rod

1шт.

14

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 1-3/4"

1шт.

15

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

16

N7633

PISTON - double groove, cylinder

1шт.

17

25-2316

SLOTTED NUT

CASTLE NUT - hex, 1" - 14 NF

1шт.

18

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.
