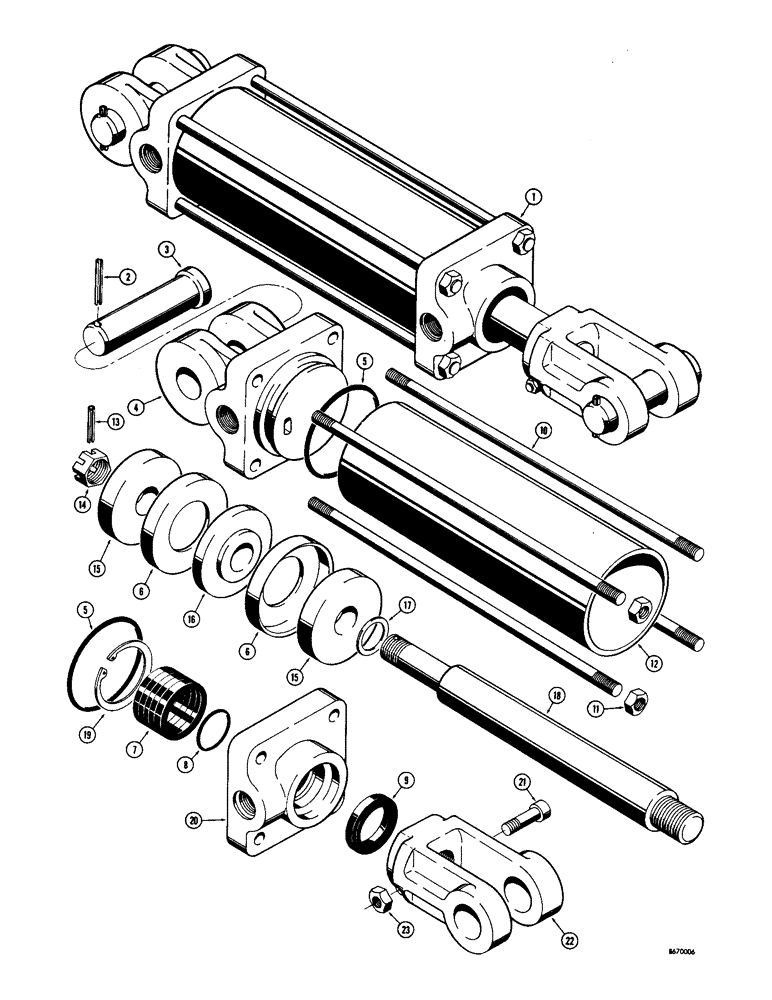

Запчасти Case 530 (70) - D39464 TILT AND LOADER BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

D39464

CYLINDER ASSY.

CYLINDER - hydraulic, tilt or loader bucket, 3" (76MM) ID x 6" (152MM) stroke, used on late production 21' 6" standard Mast as tilt cylinder and on all late production loader bucket attachments as bucket cyliner

1-2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

2

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

3

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.

4

D39467

CLEVIS

CAP - cylinder, closed end

1шт.

D24093

KIT

- cylinder packing

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - end cap

2шт.

6

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

7

NSS

NOT SOLD SEPARAT

PACKING - piston, set of 5

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

10

D24098

TIE ROD - cylinder

1шт.

11

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

8шт.

12

D24085

TUBE

- cylinder

1шт.

13

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

14

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

CASTLE NUT - hex, 3/4" - 16 NF

1шт.

15

D24089

SPACER

- cup

2шт.

16

D24088

PISTON - cylinder

1шт.

17

D24091

GASKET

- piston

1шт.

18

D24090

ROD

- piston

1шт.

19

D24092

SNAP RING - retaining, packing

1шт.

20

D39466

HEAD

CAP - cylinder, rod end

1шт.

21

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 1-3/4"

1шт.

22

D24097

CLEVIS

- piston rod

1шт.

23

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

1шт.
