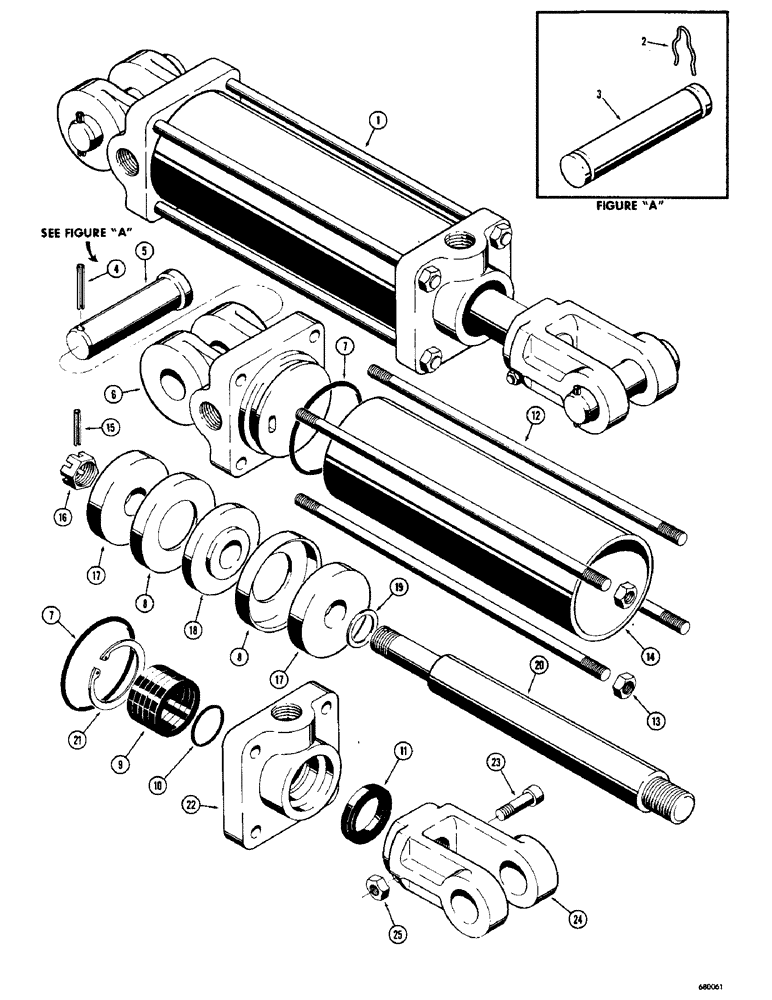

Запчасти Case 530 (68) - D34439 LOG CLAMP CYLINDER (35) - HYDRAULIC SYSTEMS

1

D34439

X

CYLINDER - hydraulic, log clamp L.H. (3-1/2" I.D. x 10" stroke) Used on intermediate production log clamp attachments

1шт.

Early and intermediate production log clamp attachments can be identified by their tapered pipe thread-type fittings at the cylinder ports. Late production log clamp attachments can be identified by their O-ring-type fittings at the cylinder ports.

1шт.

2

D24084

CLIP

- retaining, use with D24083 mounting pin

4шт.

3

D24083

PIN

- cylinder mounting, when stock is exhausted, use (1) 138-142 and (1) D36819

2шт.

4

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

5

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.

6

D24120

CAP - cylinder, closed end

1шт.

D24127

PACKAGE,SERVICE

KIT - cylinder packing

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - O-ring, end cap

2шт.

8

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

9

NSS

NOT SOLD SEPARAT

PACKING - piston (Set of 5)

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - O-ring, piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rod wiper

1шт.

12

D24138

ROD - tie

4шт.

13

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

8шт.

14

D24130

TUBE - cylinder

1шт.

15

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

16

25-2316

SLOTTED NUT

- hex., castle (1" - 14 NF)

1шт.

17

D24133

SPACER - cup

2шт.

18

D24132

PISTON

- cylinder

1шт.

19

D24135

GASKET - piston

1шт.

20

D28360

ROD

- piston

1шт.

21

D24092

RING - retaining, packing

1шт.

22

D24137

CAP - cylinder, rod end

1шт.

23

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex. socket head, 3/8" - 16 NC x 1-3/4"

1шт.

24

D24097

CLEVIS

YOKE - piston rod

1шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
