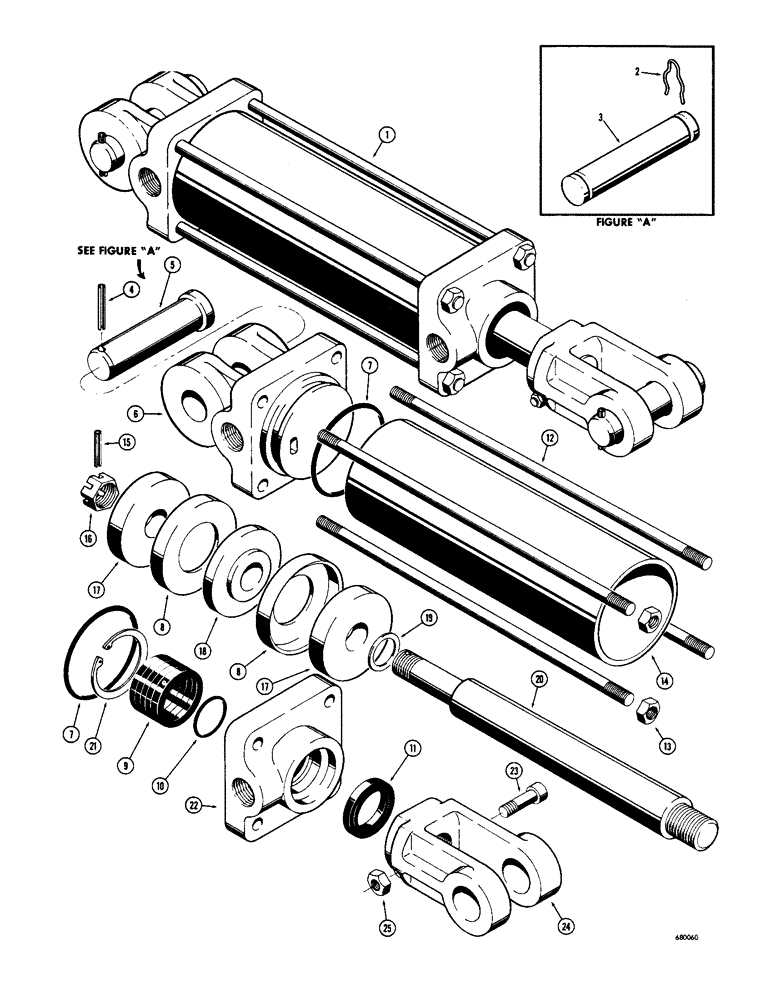

Запчасти Case 530 (64) - D27002 TILT AND LOG CLAMP CYLINDER (35) - HYDRAULIC SYSTEMS

1

D27002

CYLINDER - hydraulic, tilt or log clamp (3-1/2" I.D. x 10" stroke) Used on early production 10' 6", 12' and 14' 3" Masts as tilt cylinder an on early production log clamp attachments

1шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

2

D24084

CLIP

- retaining, use with D24083 mounting pin

4шт.

3

D24083

PIN

- cylinder mounting, when stock is exhausted use (1) 138-142 and (1) D36819

2шт.

4

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

5

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.

6

D24120

CAP - cylinder, closed end

1шт.

D24127

PACKAGE,SERVICE

KIT - cylinder packing

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - O-ring, end caps

2шт.

8

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

9

NSS

NOT SOLD SEPARAT

PACKING - piston (Set of 5)

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - O-ring, piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rod wiper

1шт.

12

D24138

ROD - tie

4шт.

13

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

8шт.

14

D24130

TUBE - cylinder

1шт.

15

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, (Use with 25-2316) 5/32" x 1 1/4", Slotted

1шт.

16

25-1116

NUT,1"-14, G5

- hex., piston rod (1" - 14 NF) If used

1шт.

25-2316

SLOTTED NUT

- hex., castle (1" - 14 NF) Use with 138-79

1шт.

17

D24133

SPACER - cup

2шт.

18

D24132

PISTON

- cylinder

1шт.

19

D24135

GASKET - piston

1шт.

20

D28360

ROD

- piston

1шт.

21

D24092

RING - retaining, packing

1шт.

22

D24137

CAP - cylinder, rod end

1шт.

23

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex. socket head, 3/8" - 16 NC x 1-3/4"

1шт.

24

D24097

CLEVIS

YOKE - piston rod

1шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
