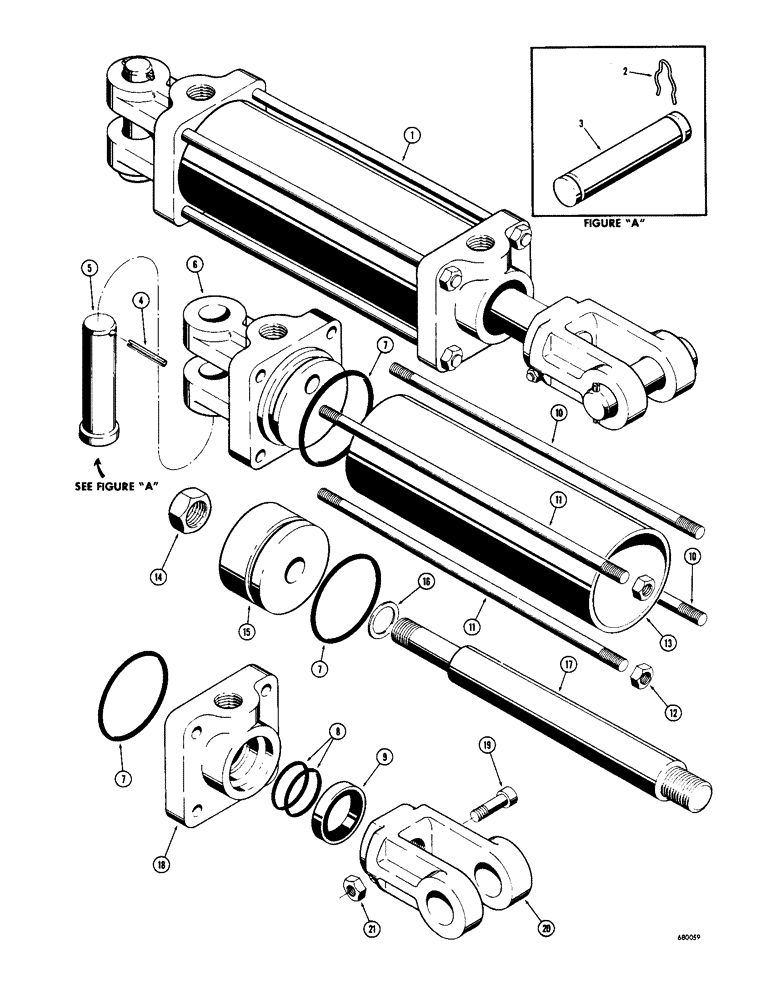

Запчасти Case 530 (62) - D24102 SIDE SHIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

D24102

CYLINDER - hydraulic, side shift (2-1/2" I.D. x 6" stroke) Early production

1шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

2

D24084

CLIP

- retaining, use with D24083 mounting pin

4шт.

3

D24083

PIN

- cylinder mounting, when stock is exhausted, use (1) 138-142 and (1) D36819

2шт.

4

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

5

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.

6

D24103

CAP - cylinder, closed end

1шт.

D24118

GASKET KIT

KIT - cylinder packing

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - O-ring, end caps and piston

3шт.

8

NSS

NOT SOLD SEPARAT

SEAL - O-ring, piston rod

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rod wiper

1шт.

10

D28959

ROD - tie (11" long)

2шт.

11

D28147

TIE-ROD

ROD - tie, cylinder guard mounting (11-1/4" long)

2шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

13

D24109

TUBE

- cylinder

1шт.

14

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4" - 16 NF)

1шт.

15

D24105

PISTON

- cylinder

1шт.

16

D24091

GASKET

- piston

1шт.

17

D24106

ROD

- piston

1шт.

18

D24112

CAP - cylinder, rod end

1шт.

19

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex. socket head, 3/8" - 16 NC x 1-3/4"

1шт.

20

D24097

CLEVIS

YOKE - piston rod

1шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
