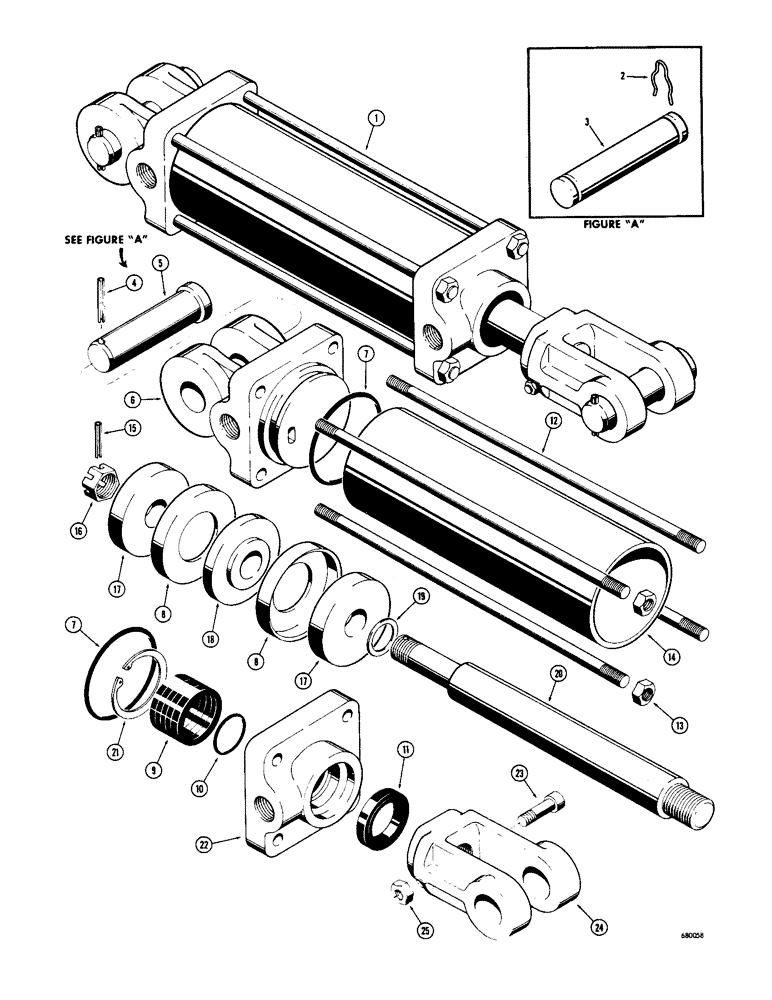

Запчасти Case 530 (60) - D24080 TILT AND LOADER BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

D24080

CYLINDER - hydraulic, tilt and loader bucket (3" I.D. x 6" stroke) Used on early production 21' 6" Mast as tilt cylinder and on all early production loader bucket attachments

1шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

2

D24084

CLIP

- retaining, use with D24083 mounting pin

4шт.

3

D24083

PIN

- cylinder mounting, when stock is exhausted use D36819

2шт.

4

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

5

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.

6

D24081

CAP - cylinder, closed end

1шт.

D24093

KIT

- cylinder packing

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - O-ring, end cap

2шт.

8

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

9

NSS

NOT SOLD SEPARAT

PACKING - piston (Set of 5)

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - O-ring, piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rod wiper

1шт.

12

D24098

ROD - tie

4шт.

13

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

8шт.

14

D24085

TUBE

- cylinder

1шт.

15

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, (Use with 25-2312) 5/32" x 1 1/4", Slotted

1шт.

16

25-1112

NUT,3/4"-16, G5

- hex., piston rod (3/4" - 16 NF) If used

1шт.

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex., castle (3/4" - 16 NF) Use with 138-79

1шт.

17

D24089

SPACER

- cup

2шт.

18

D24088

PISTON - cylinder

1шт.

19

D24091

GASKET

- piston

1шт.

20

D24090

ROD

- piston

1шт.

21

D24092

RING - retaining, packing

1шт.

22

D24094

CAP - cylinder, rod end

1шт.

23

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex. socket head, 3/8" - 16 NC x 1-3/4"

1шт.

24

D24097

CLEVIS

YOKE - piston rod

1шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
