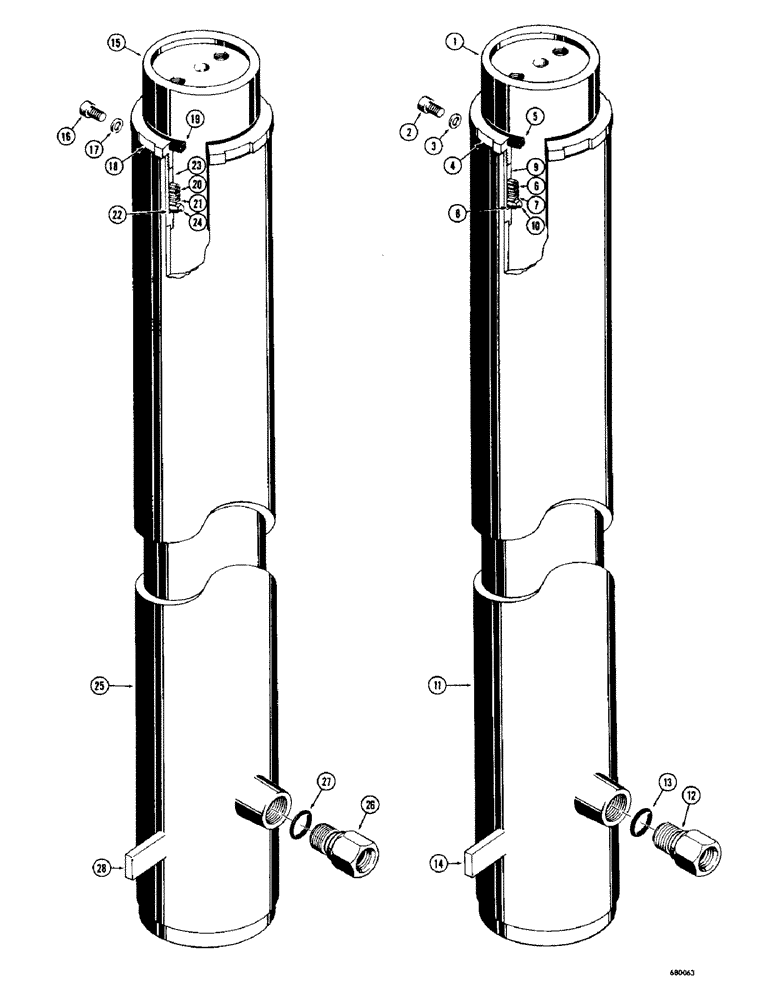

Запчасти Case 530 (56) - D24173 LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

D24173

CYLINDER

- hydraulic, lift (3-1/2" I.D. x 63" stroke) Standard 10' 6" Mast,D24173 lift cylinder

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - tube assembly, D24173 lift cylinder

1шт.

2

178-426

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - bleeder, hex. socket head (1/4" - 20 NC x 3/8"), D24173 lift cylinder

1шт.

3

D24252

WASHER

- bleeder screw, special, D24173 lift cylinder

1шт.

4

60955

NUT

- cylinder packing, D24173 lift cylinder

1шт.

D28327

SEAL

KIT - packing, D24173 lift cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - wiper, D24173 lift cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

PACKING - chevron, fabric, D24173 lift cylinder

3шт.

7

NSS

NOT SOLD SEPARAT

PACKING - chevron, leather, D24173 lift cylinder

2шт.

8

NSS

NOT SOLD SEPARAT

RING - wire, spring, D24173 lift cylinder

1шт.

9

D28337

SLEEVE

- packing, upper, D24173 lift cylinder

1шт.

10

60954

SLEEVE

RING - packing, lower, D24173 lift cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - cylinder, D24173 lift cylinder

1шт.

12

D39475

X

CONNECTOR - male (If used), D24173 lift cylinder

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D24173 lift cylinder

1шт.

14

D26094

RETAINER - lift cylinderD24173 lift cylinder

1шт.

D36571

CYLINDER - hydraulic, lift (3-1/2" I.D. x 72" stroke) Heavy duty 12' Mast D36571 lift cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - tube assembly, D36571 lift cylinder

1шт.

16

178-426

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - bleeder, hex. socket head (1/4" - 20 NC x 3/8"), D36571 lift cylinder

1шт.

17

D24252

WASHER

- bleeder screw, special, D36571 lift cylinder

1шт.

18

60955

NUT

- cylinder packing, D36571 lift cylinder

1шт.

D28327

SEAL

KIT - packing, D36571 lift cylinder

1шт.

19

NSS

NOT SOLD SEPARAT

RING - wiper, D36571 lift cylinder

1шт.

20

NSS

NOT SOLD SEPARAT

PACKING - chevron, fabric, D36571 lift cylinder

3шт.

21

NSS

NOT SOLD SEPARAT

PACKING - chevron, leather, D36571 lift cylinder

2шт.

22

NSS

NOT SOLD SEPARAT

RING - wire, spring, D36571 lift cylinder

1шт.

23

D28337

SLEEVE

- packing, upper, D36571 lift cylinder

1шт.

24

60954

SLEEVE

RING - packing, lower, D36571 lift cylinder

1шт.

25

NSS

NOT SOLD SEPARAT

TUBE - cylinder, D36571 lift cylinder

1шт.

26

D39475

X

CONNECTOR - male (If used), D36571 lift cylinder

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D36571 lift cylinder

1шт.

28

D26094

RETAINER - lift cylinder, D36571 lift cylinder

1шт.
