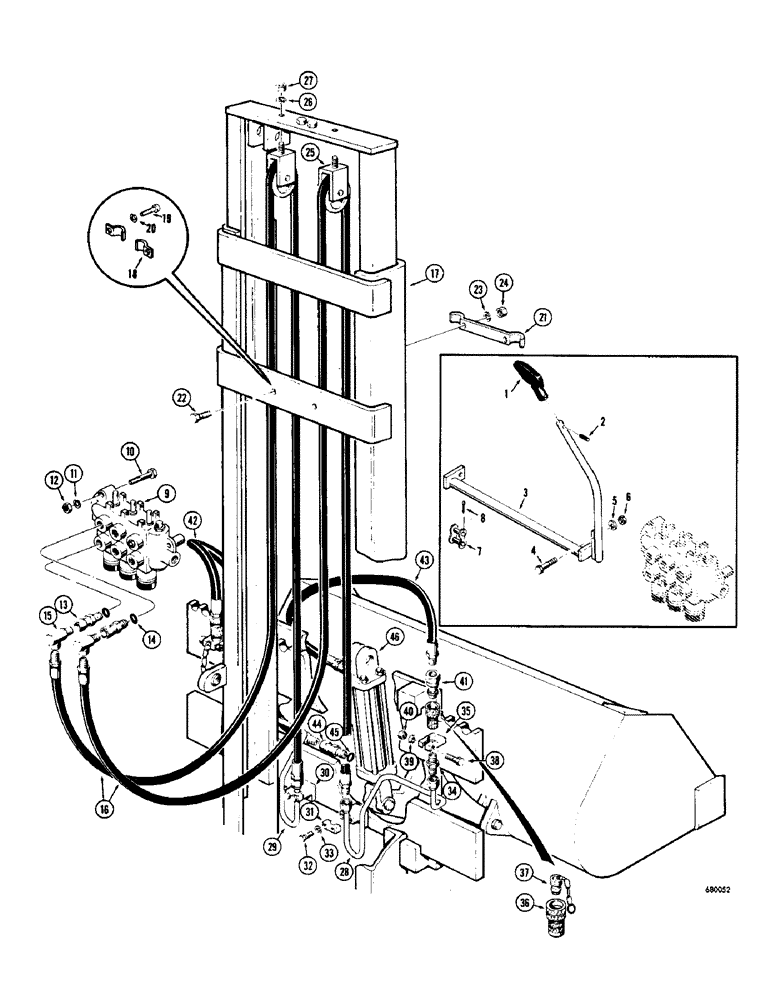

Запчасти Case 530 (52) - LOADER BUCKET HYDRAULICS, STANDARD 10 FOOT 6 INCH AND 14 FOOT 3 INCH MASTS (35) - HYDRAULIC SYSTEMS

D24288

LEVER

ASSEMBLY - loader bucket control

1шт.

1

D24184

SPARE PART Lever

1шт.

2

138-57

LOCK PIN,1/8" x 3/4", Slotted

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

25-106

NUT,3/8"-16, G5

2шт.

7

D24140

LINK

SPARE PART Connecting

1шт.

8

132-6

COTTER PIN,1/16" x 5/8"

2шт.

9

D28968

VALVE

Hyd., control (Early production) Parts list figure 84

1шт.

Early production has NPT fittings. Late production has O-ring fittings at hydraulic valve and cylinder ports.

1шт.

D39472

VALVE - hyd., control (Late production) Parts list page 86

1шт.

Early production has NPT fittings. Late production has O-ring fittings at hydraulic valve and cylinder ports.

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

3шт.

13

D39479

X

ADAPTER - straight male (Late production)

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

15

D24170

X

ADAPTER - 90 degrees, swivel

2шт.

16

D24280

HOSE

Hydraulic, control valve to tube (Use with standard 10' 6" Mast) 176" long

2шт.

D24281

SPARE PART Hydraulic, control valve to tube (Use with standard 14' 3" Mast) 216" long

2шт.

17

REF

INSTRUCTION

MAST ASSEMBLY - standard (See pages 8 and 10 for options)

1шт.

18

D24282

CLAMP - hose (Early production)

2шт.

19

61-416

HEX SOC SCREW,1/4"-20 x 1"

2шт.

20

92-4

LOCK WASHER,1/4"

2шт.

21

D39478

SPARE PART Hose (Late production)

1шт.

22

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

D24277

PULLEY

Hose guide

2шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

Hex

1шт.

28

D24283

TUBE - hydraulic, to quick disconnect, RH

1шт.

29

D24284

TUBE - hydraulic, to quick disconnect, LH

1шт.

D24256

BRACKET ASSEMBLY - tubing

2шт.

30

D24278

BRACKET - tubing (Welded to lower backing plate)

1шт.

31

D24229

CLAMP - tubing

1шт.

32

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

33

92-4

LOCK WASHER,1/4"

4шт.

34

D24285

X

FITTING - tube, male (Special)

2шт.

35

D24279

SPARE PART Quick disconnect (Welded to upper backing plate)

2шт.

36

D24286

COUPLING - quick disconnect (Female half)

2шт.

37

D24287

SPARE PART CAP - dust, quick disconnect

2шт.

38

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

9635082

NUT,5/16" - 18, Gr 5

Hex

2шт.

41

D24262

SPARE PART COUPLING - quick disconnect (Male half)

2шт.

42

D24259

HOSE - hydraulic, coupling to lower port (38" long)

1-2шт.

43

D24260

HOSE - hydraulic, coupling to upper port (32" long) When stock is exhausted use D24259

1шт.

44

D39471

X

CONNECTOR - straight male (Use with D39464 cylinder)

2шт.

45

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal

1шт.

46

D24080

CYLINDER - hydraulic, loader bucket (3" I.D. x 6" stroke) Early production (Parts list figure 60)

1шт.

Early production has NPT fittings. Late production has O-ring fittings at hydraulic valve and cylinder ports.

1шт.

D39464

CYLINDER ASSY.

Hydraulic, loader bucket (3" I.D. x 6" stroke) Late production (Parts list figure 70)

1шт.

Early production has NPT fittings. Late production has O-ring fittings at hydraulic valve and cylinder ports.

1шт.
