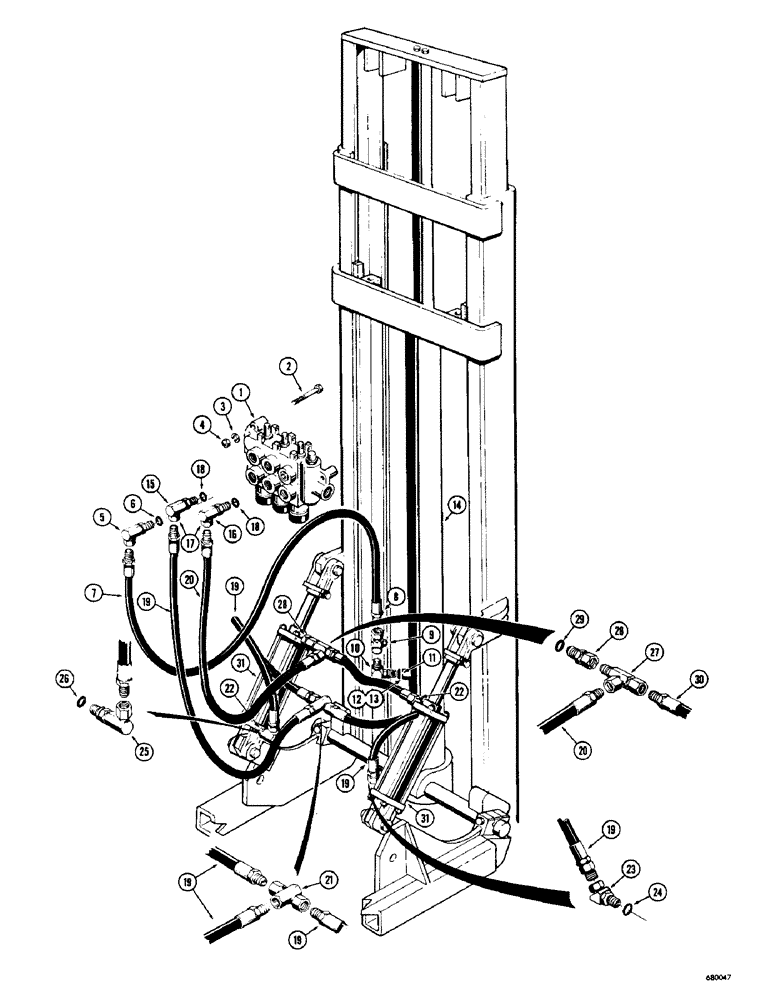

Запчасти Case 530 (48) - LIFT AND TILT CYLINDER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

D28968

VALVE

- hydraulic, control (Early production) Parts list figure 84

1шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic control valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic control valve and cylinder ports.

1шт.

D39472

VALVE - hydraulic, control (Late production) Parts list figure 86

1шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic control valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic control valve and cylinder ports.

1шт.

2

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

D24170

X

ELBOW - 90 degrees, adjustable (Early production), lift cylinder hydraulics

1шт.

D39460

X

ELBOW - 90 degrees, adjustable (Late production), lift cylinder hydraulics

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring (Use with D39460), lift cylinder hydraulics

1шт.

7

D24169

HOSE - hydraulic, lower valve port to lift cylinder port (38" long), lift cylinder hydraulics

1шт.

8

D28146

CONNECTOR - female, swivel (Early production only), lift cylinder hydraulics

1шт.

9

D24177

VALVE

- flow control (Early production), lift cylinder hydraulics

1шт.

D39459

X

VALVE - flow control (Late production), lift cylinder hydraulics

1шт.

10

D33751

X

ELBOW - 90 degrees (Early production), lift cylinder hydraulics

1шт.

D39458

X

ELBOW - 90 degrees, adjustable (Late production), lift cylinder hydraulics

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring, lift cylinder hydraulics

1шт.

12

D39475

X

ADAPTER - male (If used), lift cylinder hydraulics

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring, lift cylinder hydraulics

1шт.

14

D24173

CYLINDER

- hydraulic, lift (10' 6" standard Mast) 3-1/2" I.D. x 63" stroke (Parts list figure 56), lift cylinder hydraulics

1шт.

D36571

CYLINDER - hydraulic, lift (12' heavy duty Mast) 3-1/2" I.D. x 72" stroke (Parts list figure 56), lift cylinder hydraulics

1шт.

60969

CYLINDER - hydraulic, lift (14' 3" standard and heavy duty Masts) 3-1/2" I.D. x 85-1/2" stroke (Parts list figure 58), lift cylinder hydraulics

1шт.

D24175

CYLINDER - hydraulic, lift (21' 6" standard Mast) 4-3/4" I.D. x 85-1/2" stroke (Parts list figure 58), lift cylinder hydraulics

1шт.

15

D33746

X

ADAPTER - 90 degrees, swivel (Upper port) Early production, tilt cylinder hydraulics

1шт.

16

D33744

ADAPTER - 90 degrees (Restrictor) Lower port (Early production), tilt cylinder hdyraulics

1шт.

17

D39462

X

ELBOW - 90 degrees, adjustable (Upper and lower ports) Later production, tilt cylinder hydraulics

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring, tilt cylinder hydraulics

1шт.

19

D33748

HOSE - hydraulic, upper valve port of tilt cylinders (18" long), tilt cylinder hydraulics

3шт.

20

D33745

HOSE - hydraulic, lower valve port to upper port of tilt cylinders (32" long), tilt cylinder hydraulics

1шт.

21

D33747

TEE

- female, swivel, tilt cylinder hydraulics

1шт.

22

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing, R.H. cylinder (1/2" NPT to 3/8" NPT) Early production, tilt cylinder hydraulics

2шт.

23

D33754

X

ELBOW - street, 45 degrees (Lower port R.H. cylinder) Early production, tilt cylinder hydraulics

1шт.

D39463

X

ELBOW - adjustable, 45 degrees (Lower port R.H. cylinder) Late production,tilt cylinder hdyraulics

1шт.

25

D33746

X

ADAPTER - 90 degrees (Lower port L.H. cylinder) Early production, tilt cylinder hydraulics

1шт.

D39461

X

ELBOW - 90 degrees, adjustable (Lower port L.H. cylinder) Late production

1шт.

27

D33750

TEE - adapter, restrictor (Use with D24002, 3-1/2" I.D. and D24080, 3" I.D. tilt cylinders) Early production

1шт.

D39190

TEE

- restrictor (Use with D39464, 3" I.D. tilt cylinders on 21' 6" Mast) Late production

1шт.

D39191

TEE

- restrictor (Use with D39465, 3-1/2" I.D. tilt cylinders on 10'6", 12' and 14'3" Masts) Late production

1шт.

28

D39192

FITTING

ADAPTER - straight male, swivel (Upper port R.H. and L.H. tilt cylinders) Late production

2шт.

30

D33749

HOSE

- hydraulics, to upper port of tilt cylinder (27" long)

1шт.

31

D27002

CYLINDER - hydraulic, tilt (3-1/2" I.D. x 10" stroke) Early production 10'6", 12' and 14'3" Masts (Parts list figure 64)

2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

D39465

CYLINDER ASSY.

CYLINDER - hydraulic, tilt (3-1/2" I.D. x 10" stroke) Late production 10'6", 12' and 14'3" Masts (Parts list figure 72)

2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

D24080

CYLINDER - hydraulic, tilt (3" I.D. x 6" stroke) Early production 21'6" Mast (Parts list figure 60)

2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

D39464

CYLINDER ASSY.

CYLINDER - hydraulic, tilt (3" I.D. x 6" stroke) Late production 21'6" Mast (Parts list figure 70)

2шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - O-ring, tilt cylinder hydraulics

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - O-ring

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - O-ring

1шт.
