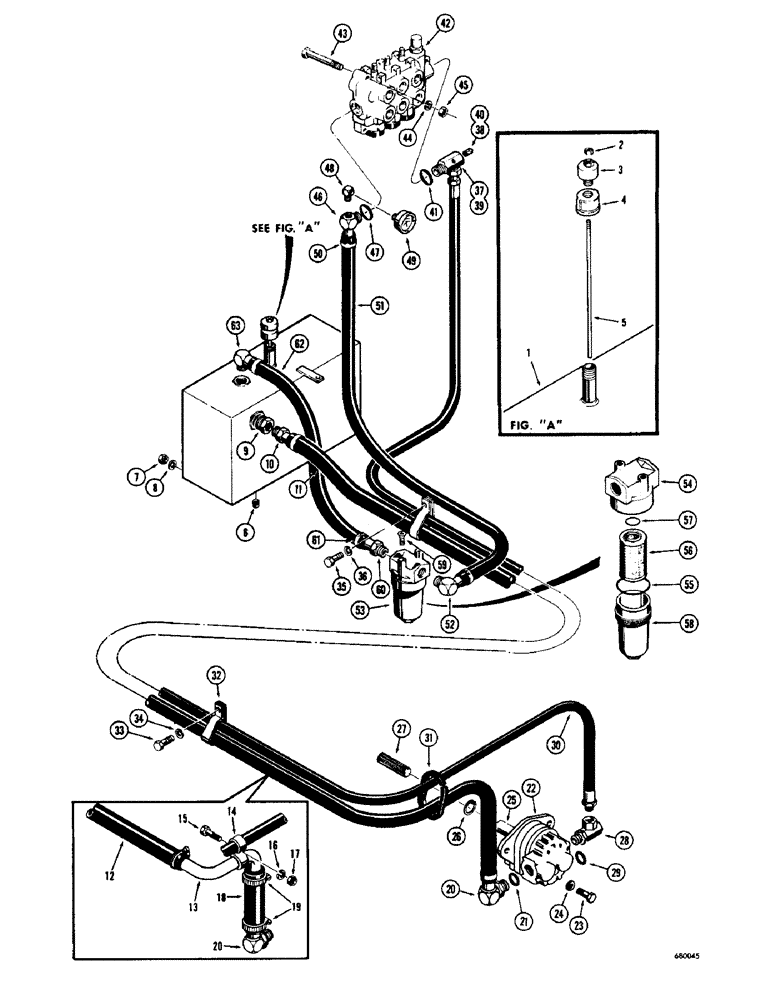

Запчасти Case 530 (44) - FORKLIFT PRIMARY HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

D32577

RESERVOIR - hydraulic oil

1шт.

D32599

SPARE PART BREATHER AND DIPSTICK ASSEMBLY

1шт.

2

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

3

D33155

SPARE PART BREATHER - hydraulic reservoir

1шт.

4

D33154

SPARE PART CAP - breather

1шт.

5

D32608

SPARE PART DIPSTICK - oil level

1шт.

6

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe (1/2" NPT)

1шт.

7

25-108

NUT,1/2"-13, G5

NUT - hex. (1/2" - 13 NC)

2шт.

8

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

9

221-76

BUSHING

BUSHING - reducing (1-1/2" NPT to 1-1/4" NPT)

1шт.

10

D33743

X

STEM - hose, straight

1шт.

11

D33860

HOSE ASSY.

HOSE - suction (1-1/4" I.D. x 112" long) Used before fork lift serial number 4086099) Use items 12 thru 19

1шт.

12

D34432

SPARE PART HOSE - suction (1-1/4" I.D. x 94-1/2") Used after fork lift serial number 4086099

1шт.

13

D34237

SPARE PART TUBE - suction

1шт.

14

R15257

CLAMP

CLAMP - hose

1шт.

15

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - 5/16"-18 NC x 1-1/2"

1шт.

16

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

NUT - hex. (5/16" - 18 NC)

1шт.

18

D34431

SPARE PART HOSE - suction (1-1/4" I.D. x 11" long)

1шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2-4шт.

20

D33741

X

STEM - hose, 90 degrees

1шт.

21

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - O-ring

1шт.

22

D31254

X

PUMP - hydraulic, 20 G.P.M. at 1900 R.P.M. at 1600 P.S.I. parts list figure 80 (When stock is exhausted, use D41390)

1шт.

D41390

PUMP

PUMP - hydraulic, 20 G.P.M. at 1900 R.P.M. at 1600 P.S.I. (Parts list figure 82)

1шт.

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

DC41390

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

87644746R

REMAN-HYD PUMP

530 CASE CONSTRUCTION KING FORKLIFT

1шт.

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

24

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

25

D31108

SPLINED COUPLING

COUPLING - female, pump drive

1шт.

26

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

27

D30569

SHAFT

SHAFT - pump drive

1шт.

28

D33740

SPARE PART ELBOW - adjustable, 90 degrees

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - O-ring

1шт.

30

D33739

SPARE PART HOSE - hydraulic, pump to control valve (3/4" I.D. x 145" long)

1шт.

31

D33854

TRIM - rubber, side panel

1шт.

32

D33738

CLAMP - hose

2шт.

33

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

BOLT, , Clamp to torque tube Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

35

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, , Clamp to transmission cover Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

36

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

1шт.

37

D27504

ADAPTER - 90 degrees, swivel (Early production)

1шт.

38

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

39

D39474

ELBOW - adjustable, 90 degrees (Late production)

1шт.

40

221-12

PLUG,Sq Hd, 1/4"-18

PLUG - pipe, square head (1/4" NPT)

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - O-ring

1шт.

42

D28968

VALVE

VALVE - hydraulic, control (Early production) Parts list figure 84

1шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

D39472

VALVE - hydraulic, control (Late production) Parts list figure 86

1шт.

Early production forklifts can be identified by their tapered pipe thread-type fittings at hydraulic valve and cylinder ports. Late production forklifts can be identified by their O-ring-type fittings at hydraulic valve and cylinder ports.

1шт.

43

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

3шт.

44

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

45

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

3шт.

46

D33730

STEM - hose, 90 degrees (Early production)

1шт.

D39473

SPARE PART STEM - hose, 90 degrees (Late production)

1шт.

47

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - O-ring

1шт.

48

221-411

ELBOW,90 Degree, 1/8"-27, NPT

ELBOW, , Street 90º, 1/8"-27, NPT

1шт.

49

D29650

ELECTRICAL GAUGE

GAUGE - filter pressure

1шт.

50

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

51

D33736

SPARE PART HOSE - valve to filter (1" I.D. x 50" long)

1шт.

52

D24162

SPARE PART STEM - hose, 90 degrees (At filter)

1шт.

53

D32254

FILTER ASSY

FILTER - hydraulic oil

1шт.

54

D31874

HEAD

HEAD - filter

1шт.

D32212

FILTER, ELEMENT

ELEMENT, FILTER ELEMENT KIT - filter

1шт.

55

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - O-ring

1шт.

56

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

57

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - O-ring

1шт.

58

R20645

HOUSING

HOUSING - filter

1шт.

59

164-71

SCREW - flat head, hex. socket (1/2" - 13 NC x 1")

2шт.

60

D33735

X

STEM - hose, straight

1шт.

61

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

62

D33737

SPARE PART HOSE - filter to reservoir (1" I.D. x 26-1/2" long)

1шт.

63

D24162

SPARE PART STEM - hose, 90 degrees (At reservoir)

1шт.
