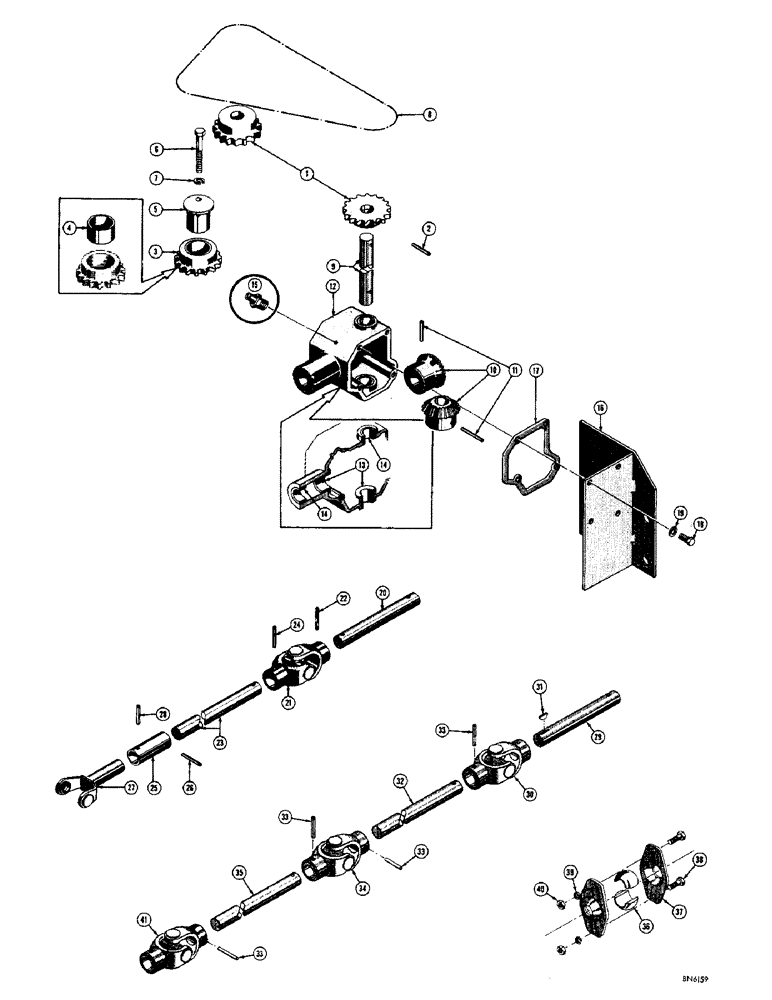

Запчасти Case 440 (16) - STEERING CHAIN DRIVE AND LINKAGE

1

D24192

SPROCKET - steering column and gear box (19 tooth)

2шт.

2

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, , Sprocket 1/4" x 2 1/4", Slotted

2шт.

3

D24232

SPROCKET - tightener (19 tooth)

1шт.

4

D24233

BUSHING - sprocket, tightener

1шт.

5

D24234

ECCENTRIC - chain tightener

1шт.

6

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

D24235

X

CHAIN - steering drive (American Standard #40 roller chain) 38-1/2" long

1шт.

B12470

CHAIN (AG)

SECTION - chain (Includes 49 riveted links and 1 connecting link)

2шт.

B12472

CHAIN (AG)

SECTION - chain (Includes 9 riveted links and 1 connecting link)

1шт.

B12501

LINK

- connecting

1шт.

B12502

OFFSET LINK

LINK - offset

1шт.

9

D24249

SHAFT - gear box (6-1/4" long)

1шт.

10

D24248

GEAR - meter (25 tooth)

2шт.

11

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Gear 1/4" x 1 1/4", Slotted

2шт.

12

D24243

BOX - gear

1шт.

13

D24246

BUSHING - gear box (Flanged)

2шт.

14

D24247

BUSHING - gear box (Straight)

2шт.

15

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight (3/16" drive) Used on fork lift serial no. 10R and after

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) Used before fork lift serial no. 10R)

1шт.

16

D24244

BRACKET - mounting, gear box cover

1шт.

17

D24245

GASKET - gear box cover

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

D24250

SHAFT - gear box (7-1/4" long) Universal joint pinned to shaft, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

21

D24191

JOINT - universal, steering shaft, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

22

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Steering shaft arrangement used up to fork lift S/N 10R 1/4" x 1 1/4", Slotted

1шт.

23

D24241

SHAFT - joint to coupling (24-1/8" long), sttering shaft arrangement used up to fork lift serial no. 10R

1шт.

24

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Steering shaft arrangement used up to fork lift S/N 10R 1/4" x 1 1/2", Slotted

1шт.

25

D24242

COUPLING - steering shaft, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

26

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, , Steering shaft arrangement used up to fork lift serial no.10R 1/4" x 1 1/8", Slotted

1шт.

27

D24251

SHAFT - with universal joint yoke, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

28

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Steering shaft arrangement used up to fork lift S/N 10R 1/4" x 1 1/2", Slotted

1шт.

29

D25784

SHAFT - gear box (7-1/4" long) Universal joint keyed to shaft, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

30

D25785

JOINT - universal, steering shaft, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT) Not shown, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

31

126-128

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

Front joint, steering shaft arrangement used up to fork lift S/N 10R #18, 1/4" x 1 1/8", HT

1шт.

32

D25786

SHAFT - steering, front section (30-1/4" long), steering shaft arrangement used up to fork lift serial no. 10R

1шт.

33

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Steering shaft arrangement used up to fork lift S/N 10R 1/4" x 1 1/2", Slotted

4шт.

34

D25785

JOINT - universal, center, steering shaft arragement used up to fork lift serial no. 10R

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT) Not shown, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

35

D25787

SHAFT - steering, rear section (23" long) Gas models only, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

D26926

SHAFT - steering, rear section (24-1/4" long) Diesel models only, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

36

D25789

X

BEARING - shaft, steering shaft arrangement used up to fork lift serial no. 10R

2шт.

37

D26465

SOCKET - bearing, steering shaft arrangement used up to fork lift serial no. 10R

2шт.

38

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Steering shaft arrangement used up to fork lift S/N 10R Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

39

92-5

LOCK WASHER,5/16"

steering shaft arrangement used up to fork lift serial no. 10R 5/16"

2шт.

40

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), steering shaft arrangement used up to fork lift serial no. 10R

2шт.

41

D25788

JOINT - universal, rear, steering shaft arrangement used up to fork lift serial no. 10R

1шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT) Not shown, steering shaft arrangement used up to fork lift serial no. 10R

1шт.
