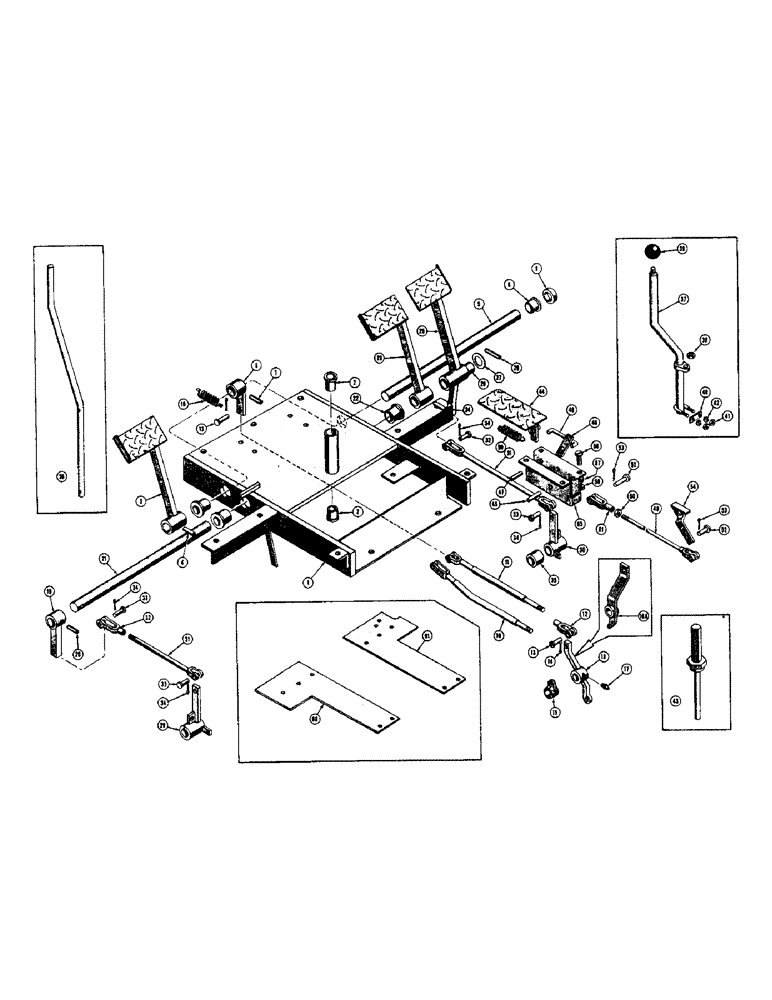

Запчасти Case 440 (12) - FOOT PEDALS AND LINKAGE

1

D24210

FRAME - pedals

1шт.

2

D24246

BUSHING - steering column

2шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Not shown) Hex, 3/8"-16 x 1 3/4", G5

2шт.

92-6

LOCK WASHER,3/8"

not shown 3/8"

2шт.

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) Not shown

2шт.

3

D24198

PEDAL - clutch

1шт.

4

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Clutch pedal 1/4" x 1 1/2", Slotted

1шт.

5

D24200

SHAFT - cross, clutch (18" long)

1шт.

6

D24202

ARM - clutch

1шт.

7

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Clutch arm 1/4" x 1 1/2", Slotted

1шт.

8

D24206

BUSHING

- clutch cross shaft

2шт.

9

D24203

COLLAR - set screw, clutch shaft (R.H.)

1шт.

10

D24228

ROD - throwout, clutch (Model M420)

1шт.

11

D24227

ROD - throwout, clutch (Used on models 310B, 430, and 440 fork lifts before serial no. 4065701) See D28966

1шт.

D28966

ROD - throwout, clutch (Used on models 430 and 440 fork lifts serial no. 4065701 and after) See D24227

1шт.

12

D24221

X

YOKE - throwout rod, rear

1шт.

13

D24291

AXLE PIN

PIN - yoke

2шт.

14

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

15

D24231

LEVER - throwout, clutch (Model M420)

1шт.

16

D24230

LEVER - throwout, clutch (Used on models 310B, 430, and 440 fork lifts before serial no. 4065701) See D28967

1шт.

16a

D28967

LEVER

- throwout, clutch (Used on models 430 and 440 fork lifts serial no. 4065701 and after) See D24230

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - straight grease (1/8" - 28 NF)

1шт.

18

D24216

SPRING

- clutch return

1шт.

19

D24199

ARM - brake

1шт.

20

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Brake arm 1/4" x 1 1/2", Slotted

1шт.

21

D24201

SHAFT - brake, cross (20-1/2" long)

1шт.

22

D24206

BUSHING

- brake cross shaft

2шт.

23

D24204

PEDAL - brake, L.H.

1шт.

24

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , L.H. brake pedal 1/4" x 1 1/2", Slotted

1шт.

25

D24205

PEDAL - brake, R.H.

1шт.

26

D26052

BUSHING - brake pedal

1шт.

27

195-53

WASHER,1" x 2" x .134"

- flat (1-1/16" I.D. x 2" O.D. x 11/64" thick)

1шт.

28

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Brake pedal 3/16" x 2", Slotted

1шт.

29

D24218

LEVER - brake, L.H. (Used before fork lift serial no. 10R)

1шт.

D25795

LEVER - brake, L.H. (Used on fork lift serial no. 10R and after)

1шт.

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight (3/16" drive) Not shown

1шт.

30

D24219

LEVER - brake, R.H. (Used before fork lift serial no. 10R)

1шт.

D25794

LEVER - brake, R.H. (Used on fork lift serial no. 10R and after)

1шт.

31

D24220

YOKE AND ROD - brake rod, rear (Straight) Used before fork lift serial no. 10R

2шт.

32

D24221

X

YOKE - brake rod front

1шт.

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF) Not shown

1шт.

31

D25793

YOKE AND ROD - brake rod, rear (Curved) Used on fork lift serial no. 10R and after

2шт.

32

D24221

X

YOKE - brake rod, front

1шт.

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF) Not shown

1шт.

33

D24291

AXLE PIN

PIN - yoke

4шт.

34

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

4шт.

35

D24223

SPACER - R.H. brake lever (1-3/4" long)

1шт.

36

D24224

LEVER - hand, brake release

1шт.

37

D24225

EXTENSION - gear shift lever

1шт.

38

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

39

A26727

BALL

KNOB - gear shift lever

1шт.

40

D24226

PLATE - clamp

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.

43

D24239

DIPSTICK - transmission

1шт.

44

D24208

PEDAL

- foot throttle

1шт.

45

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Foot throttle 1/4" x 1 1/2", Slotted

1шт.

46

D24209

ARM - foot throttle

1шт.

47

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Foot throttle arm 1/4" x 1 1/2", Slotted

1шт.

48

D24214

LINK -, Serial Range: pedal-arm

1шт.

49

D24211

ROD - throttle link

1шт.

50

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

1шт.

51

D24212

X

YOKE - rod

1шт.

52

D24213

PIN - yoke

2шт.

53

132-4

PIN - cotter (1/16" x 7/16")

2шт.

54

D24217

LEVER - throttle

1шт.

55

D24215

HOUSING - foot throttle linkage (Used only with D24207 floor plate)

1шт.

56

171-223

FHMS - 1/4" - 20 NC x 1"

4шт.

57

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

58

25-104

NUT,1/4"-20, G5

4шт.

59

D24216

SPRING

- foot throttle return

1шт.

60

D23175

PLATE - step, L.H. inner

1шт.

61

D23176

PLATE - step, R.H. inner

1шт.
