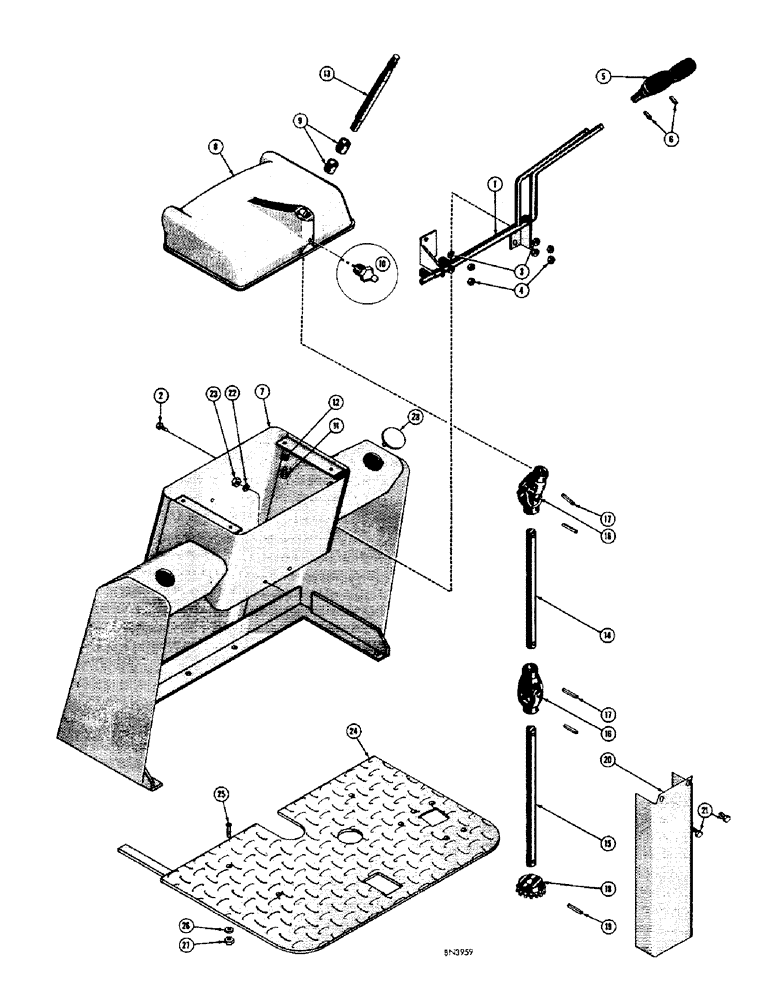

Запчасти Case 440 (08) - CONTROL TOWER

1

D24183

LEVERS - valve, mast tilt and raise

2шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

5

D24184

KNOB - control

2шт.

6

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

7

D24185

TOWER - control, without instrument holes (Used before fork lift serial no. 4065701) See D29821

1шт.

D29821

TOWER - control with instrument holes (Used on fork lift serial no. 4065701 and after)

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Not shown Hex, 3/8"-16 x 1", G5, Full Thd

5шт.

92-6

LOCK WASHER,3/8"

not shown 3/8"

5шт.

8

D24186

TOP - tower, control

1шт.

9

D24187

BUSHING - steering column

2шт.

10

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight drive

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

D24188

SHAFT - steering column, upper section

1шт.

14

D25791

SHAFT - steering column, center section (12-3/4" long) Used on fork lift serial no. 10R and after (See D24189)

1шт.

D24189

SHAFT - steering column, center section (13-1/4" long) Used before fork lift serial no. 10R (See D25791)

1шт.

15

D25790

SHAFT - steering column, lower section (10-3/8" long) Used on fork lift serial no. 10R and after (See D24190)

1шт.

D24190

SHAFT - steering column, lower section (10-3/8" long) Used before fork lift serial no. 10R (See D25790)

1шт.

16

D25785

JOINT - universal, steering column (Used on fork lift serial no. 10R and after) See D24191

2шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT) Not shown

2шт.

D24191

JOINT - universal, steering column (Used before fork lift serial no. 10R) See D25785

2шт.

17

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

4шт.

18

D24192

SPROCKET - steering column (19 tooth)

1шт.

19

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, , Sprocket 1/4" x 2 1/4", Slotted

1шт.

20

D24193

GUARD - steering column

1шт.

21

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

25-104

NUT,1/4"-20, G5

2шт.

24

D25792

PLATE - floor (Used on fork lift serial no. 10R and after) See D24207

1шт.

D24207

PLATE - floor (Used before fork lift serial no. 10R) See D25792

1шт.

25

171-223

FHMS - 5/16" - 18 NC x 1" (Cadmium plated)

4шт.

26

92-5

LOCK WASHER,5/16"

4шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

28

D35660

COVER - in lieu of instruments (If used)

2шт.
