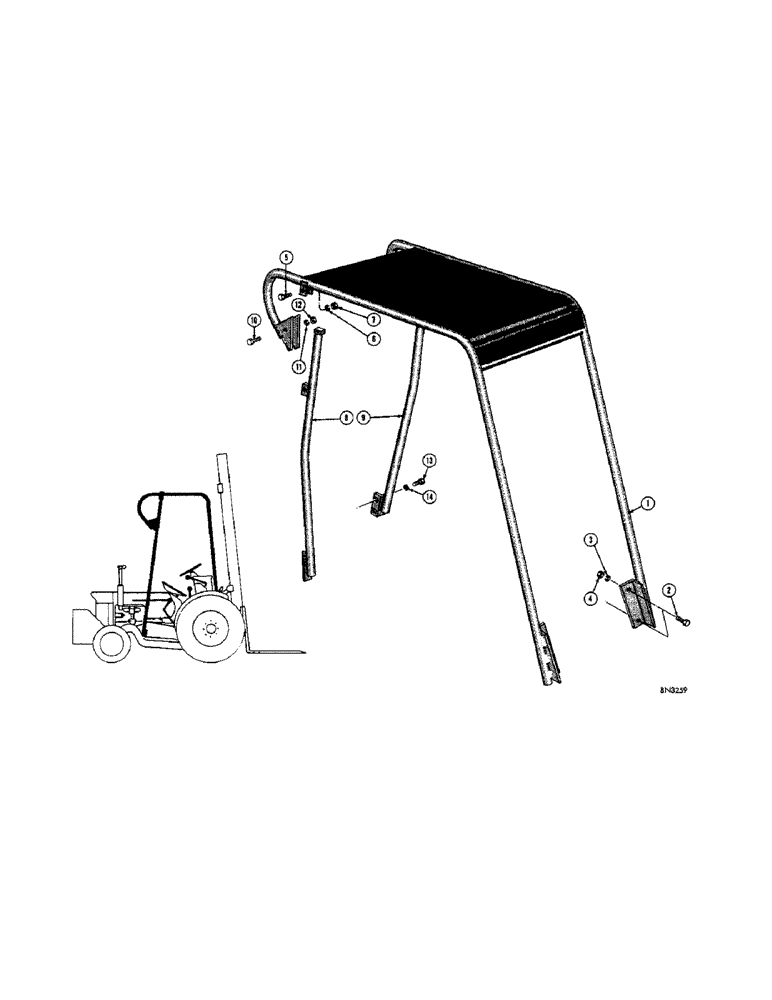

Запчасти Case 440 (06) - OVERHEAD GUARD

1

D24152

GUARD - overhead

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

5

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

8

D24153

SUPPORT - overhead guard, R.H.

1шт.

9

D24154

SUPPORT - overhead guard, L.H.

1шт.

10

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

13

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
