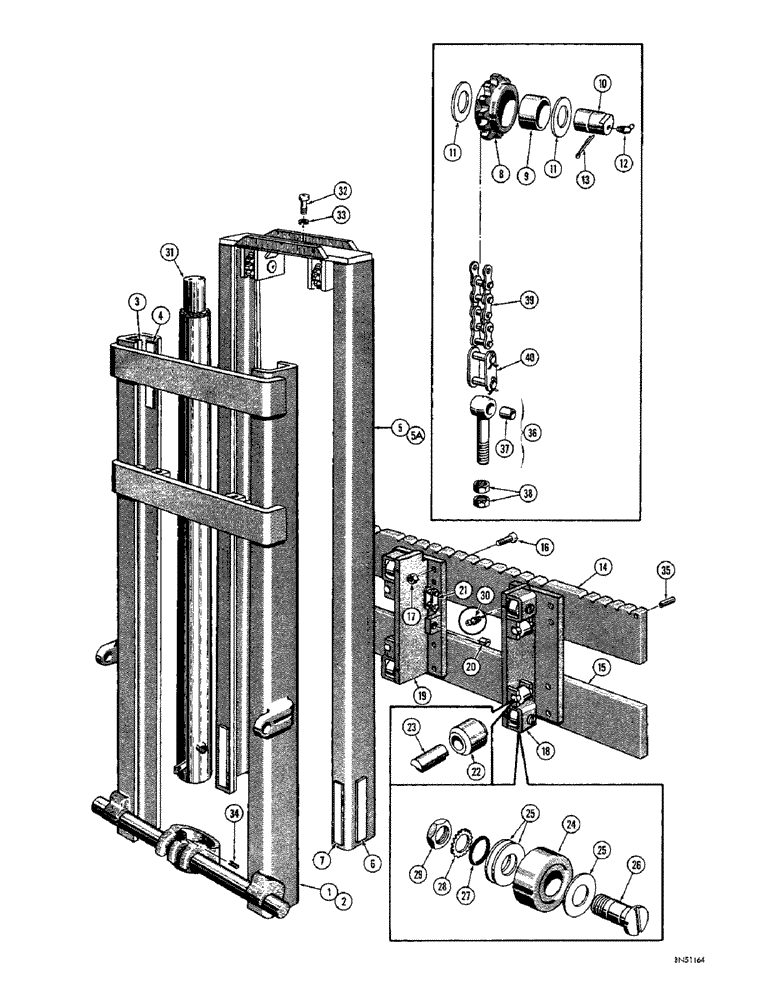

Запчасти Case 440 (82) - HEAVY DUTY MASTS, OPTIONAL

D34546

MAST - heavy duty, complete (12')

1шт.

D34547

LEVER

MAST - heavy duty, complete (14'3")

1шт.

1

D36567

CHANNEL - outer, 12' mast

1шт.

2

D36568

CHANNEL - outer, 14'3" mast

1шт.

3

D32555

PAD

PLATE - wear, 5" brass

2шт.

4

D27365

PAD

PLATE - wear, 10" brass

4шт.

5

D39480

CHANNEL

- inner, 12' mast

1шт.

5a

D39481

CHANNEL

- inner, 14'3" mast

1шт.

6

D27362

WEAR PAD

PLATE - wear, 10" brass (12' mast)

2шт.

60972

STRIP

PLATE - wear, 11" brass (14'3" mast)

2шт.

7

D27365

PAD

PLATE - wear, 10" brass (12' mast)

4шт.

D36586

PLATE

- wear, 11" brass (14'3" mast)

4шт.

8

D36583

SPROCKET - lift chain

2шт.

On later units, use bearing D39482 with sprocket.

1шт.

9

D36585

BEARING

- sprocket

2шт.

10

D36584

PIN

- sprocket

2шт.

11

D36582

WASHER

- thrust

4шт.

12

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - 67-1/2 degree drive, 3/16"

2шт.

13

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

14

D36580

LARGE PLATE

PLATE - backing, upper

1шт.

15

D36581

LARGE PLATE

PLATE - backing, lower

1шт.

16

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SHCS - 1/2" - 13 NC x 1-3/4"

16шт.

17

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

16шт.

18

D36587

CARRIAGE - R.H.

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

19

D36588

CARRIAGE - L.H.

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

20

D36572

BUSHING - chain connecting

1шт.

21

D36579

LINK

- connecting (2-1/2" pitch)

1шт.

22

D36590

ROLLER

- side

4шт.

23

D36589

PIN,25.4mm OD x 69.85mm L

- side roller

4шт.

24

D36593

ROLLER

- load

4шт.

25

D36592

WASHER

- thrust

12шт.

D36591

KIT

- axle, load roller

4шт.

26

NSS

NOT SOLD SEPARAT

AXLE - load roller

1шт.

27

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

28

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

29

D39470

NUT - hex., jam (3/4" - 16 NF)

1шт.

30

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, str. dr. (3/16")

4шт.

31

D36571

CYLINDER - lift, 12' mast, See Figure 42 for breakdown

1шт.

60969

CYLINDER - lift, 14'3" mast, See Figure 42 for breakdown

1шт.

32

62-824

HEX SOC SCREW,1/2"-20 x 1 1/2"

SHCS - 1/2" - 20 NF x 1-1/2"

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

35

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

PIN - roll (7/16" x 2")

2шт.

36

D36575

EYEBOLT

BOLT - eye, chain anchor

2шт.

37

D36576

BUSHING - eye bolt

1шт.

38

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

4шт.

39

D36577

CHAIN - roller, lift (12' mast) 79 links

2шт.

Another chain used on later units (not a sub) D39483.

1шт.

D36578

CHAIN - roller, lift (14'3" mast) 89 links

2шт.

Another chain used on later units (not a sub) D39484.

1шт.

40

D36579

LINK

- connecting (2-1/2" pitch)

4шт.
