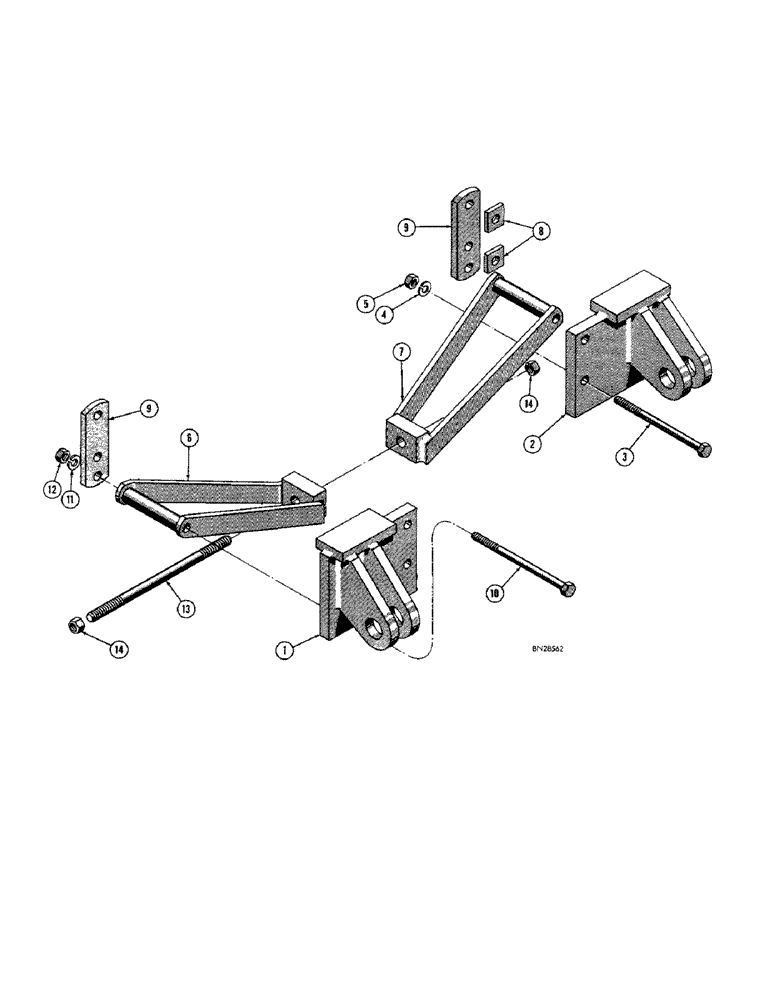

Запчасти Case 440 (78) - TRUSS ROD ATTACHMENT

D11734

TRUSS ROD - complete

1шт.

These items are standard equipment on all forklifts S/N 4065701 and after.

1шт.

1

D29629

YOKE - mounting, R.H.

1шт.

2

D29630

YOKE - mounting, L.H.

1шт.

3

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

25-1010

NUT,5/8"-11, G5

8шт.

6

D29552

BRACKET - truss rod, R.H.

1шт.

7

D29553

BRACKET - truss rod, L.H.

1шт.

8

D24059

SPACER - truss rod bracket bolt, L.H. side of forklift only

2шт.

9

D29556

BRACKET - truss rod mounting

2шт.

10

13-10136

CAPSCREW,Hex, 5/8" - 11 x 8 1/2", Gr 5

HHCS - 5/8" - 11 NC x 8-1/2"

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

25-1010

NUT,5/8"-11, G5

2шт.

13

D29555

ROD - truss

1шт.

14

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" - 10 NC)

2шт.
