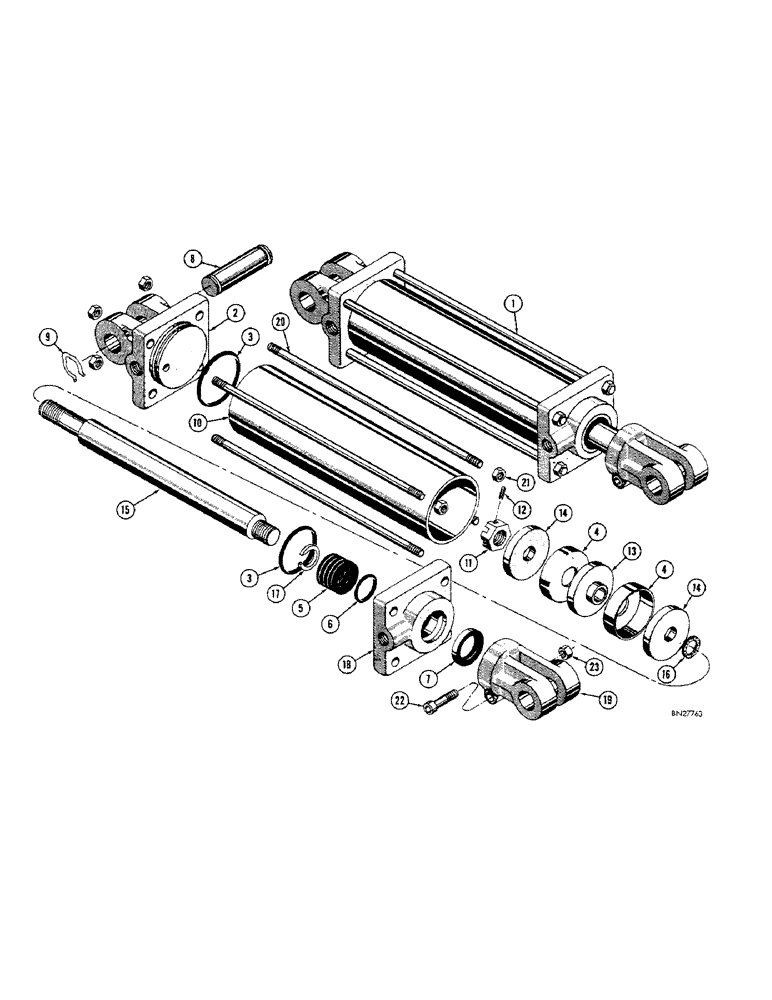

Запчасти Case 440 (78[1]) - D34438 AND D34439 HYDRAULIC CYLINDERS

1

D34438

X

CYLINDER - hyd., R.H. (3-1/2" I.D. x 10" stroke), D34438 and D34439 hydraulic cylinders

1шт.

D34439

X

CYLINDER - hyd., L.H. (3-1/2" I.D. x 10" stroke), D34438 and D34439 hydraulic cylinders

1шт.

2

D24120

CAP - cylinder end, closed, D34468 and D34439 hydraulic cylinders

1шт.

D24127

PACKAGE,SERVICE

KIT - cylinder packing, D34438 and D34439 hydraulic cylinders

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, end caps, D34438 and D34439 hydraulic cylinders

2шт.

4

NSS

NOT SOLD SEPARAT

CUP - piston, D34438 and D34439 hydraulic cylinders

2шт.

5

NSS

NOT SOLD SEPARAT

PACKING - piston rod (Set of 5), D34438 and D34439 hydraulic cylinders

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston rod, D34438 and D34439 hydraulic cylinders

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod , D34438 and D34439 hydraulic cylinders

1шт.

8

D24083

PIN

- pivot, cylinder, D34438 and D34439 hydraulic cylinders

2шт.

9

D24084

CLIP

- retaining, pivot pin, D34438 and D34439 hydraulic cylinders

4шт.

10

D24130

TUBE - cylinder, D34438 and D34439 hydraulic cylinders

1шт.

11

25-2316

SLOTTED NUT

- castle, piston rod (1" - 14 NF), D34438 and D34439 hydraulic cylinders

1шт.

12

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, , 25-2316 nut, D34438 and D34439 hydraulic cylinders 5/32" x 1 1/4", Slotted

1шт.

13

D24132

PISTON

- cylinder, D34438 and D34439 hydraulic cyliners

1шт.

14

D24133

SPACER - cup, D34438 and D34439 hydraulic cylinders

2шт.

15

D28360

ROD

- piston (1-1/4" O.D.), D34438 and D34439 hydraulic cylinders

1шт.

16

D24135

GASKET - piston, D34438cand D34439 hydraulic cylinders

1шт.

17

D24092

RING - retaining, packing, D34438 and D34439 hydraulic cylinders

1шт.

18

D24137

CAP - cylinder end, open, D34438 and D34439 hydraulic cylinders

1шт.

19

D24097

CLEVIS

- piston rod, D34438 and D34439 hydraulic cylinders

1шт.

20

D24138

ROD - tie, D34438 and D34439 hydraulic cylinders

4шт.

21

25-108

NUT,1/2"-13, G5

- tie rod (1/2" - 13 NC), D34438 and D34439 hydraulic cylinders

8шт.

22

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - socket hd. (3/8" - 16 NC x 1-3/4"), D34438 and D34439 hydraulic cylinders

1шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), D34438 and D34439 hydraulic cylinders

1шт.
