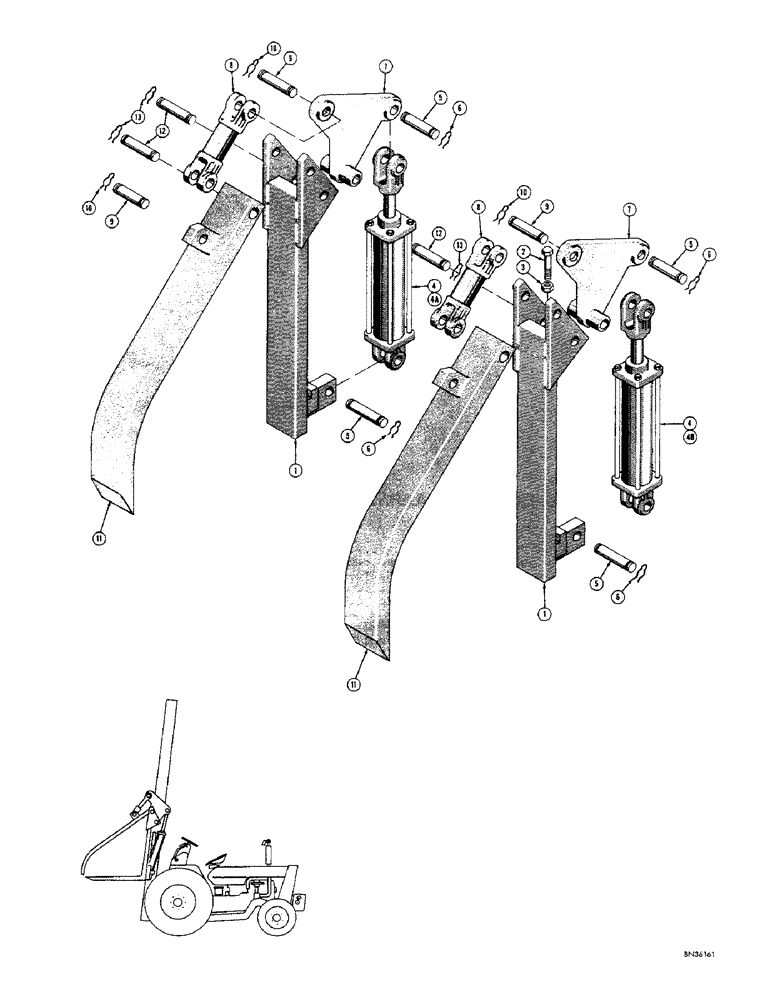

Запчасти Case 440 (76) - LOG CLAMP ATTACHMENT

1

D28953

HANGER - log clamp

2шт.

2

D34440

SCREW - square head set (5/8" - 11 NC x 3-1/2")

2шт.

3

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., jam (3/8" - 11 NC)

2шт.

4

D27002

CYLINDER - log clamp (See Figure 44 for breakdown) Use D34438 and D34439

2шт.

4a

D34438

X

CYLINDER - log clamp, R.H. (See Figure 78 for breakdown)

1шт.

4b

D34439

X

CYLINDER - log clamp, L.H. (See Figure 78 for breakdown)

1шт.

5

D24083

PIN

- pivot, cylinder to hanger and cylinder to link plate

2шт.

6

D24084

CLIP

- retaining, D24083 pivot pin

4шт.

7

D28949

PLATE - link

2шт.

8

D28950

LINK - connecting

2шт.

9

D24267

PIN - pivot, connecting link to link plate and connecting, Serial Range: link-tine

4шт.

10

D24108

CLIP - retaining, D24267 pivot pin

8шт.

11

D28954

TINE - log clamp

2шт.

12

D28952

PIN - pivot, tine to link plate and link, Serial Range: plate-hanger

4шт.

13

D24108

CLIP - retaining, D28952 pivot pin

8шт.

D29816

KIT - decal, for model 430 fork lift wheel tractor (Gas) When stock is exhausted use D31447, decals

1шт.

D29817

KIT - decal, for model 430 fork lift wheel tractor (Diesel) When stock is exhausted use D31447, decals

1шт.

D31447

KIT

- decal, for model 430 fork lift wheel tractor - gas or diesel, decals

1шт.
