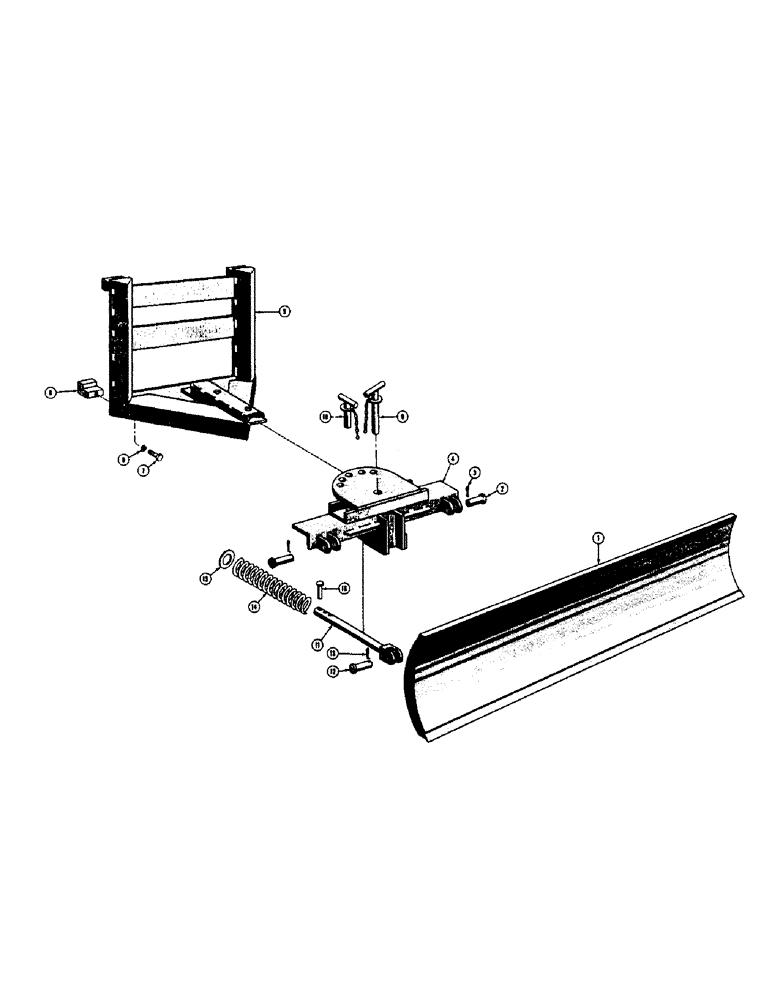

Запчасти Case 440 (72) - ANGLING DOZER ATTACHMENT, EARLY PRODUCTION

1

D24272

BLADE - dozer, angling

1шт.

2

D24222

WELDABLE LUG

PIN - pivot, blade

2шт.

3

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

4

D24270

SUPPORT - quadrant

1шт.

5

D24271

FRAME - mounting, blade

1шт.

6

D24261

BLOCK - clamp

2шт.

7

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

D24268

PIN - pivot, quadrant support

1шт.

10

D24269

PIN - positioning

1шт.

11

D24274

BAR - spring guide

1шт.

12

D24273

PIN - yoke, spring rod

1шт.

13

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

14

D24276

SPRING - return, blade

1шт.

15

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- flat (1" standard wrot)

1шт.

16

D24275

PIN - retaining, spring

1шт.
