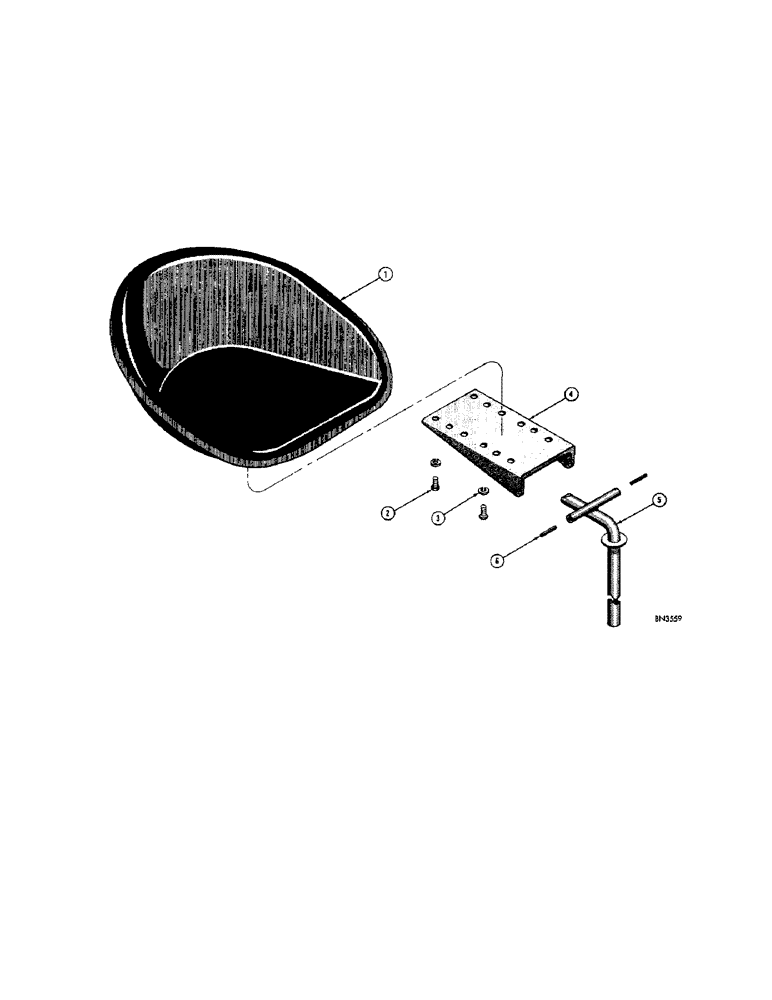

Запчасти Case 440 (06[1]) - FORK LIFT SEAT

1

D24180

SEAT

- fork lift (Use D26759), fork lift seat

1шт.

D26759

X

SEAT - fork lift, fork lift seat

1шт.

2

14-712

BOLT (MACHINE),Hex, 7/16" - 20 x 3/4", Gr 5, Full Thd

HHCS - 7/16" - 20 NF x 3/4", fork lift seat

4шт.

3

92-7

LOCK WASHER,7/16"

fork lift seat 7/16"

4шт.

4

D24181

BRACKET - seat mounting, fork lift seat

1шт.

5

D24182

POST - seat mounting, fork lift seat

1шт.

6

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Fork lift seat 1/4" x 1 1/4", Slotted

2шт.
