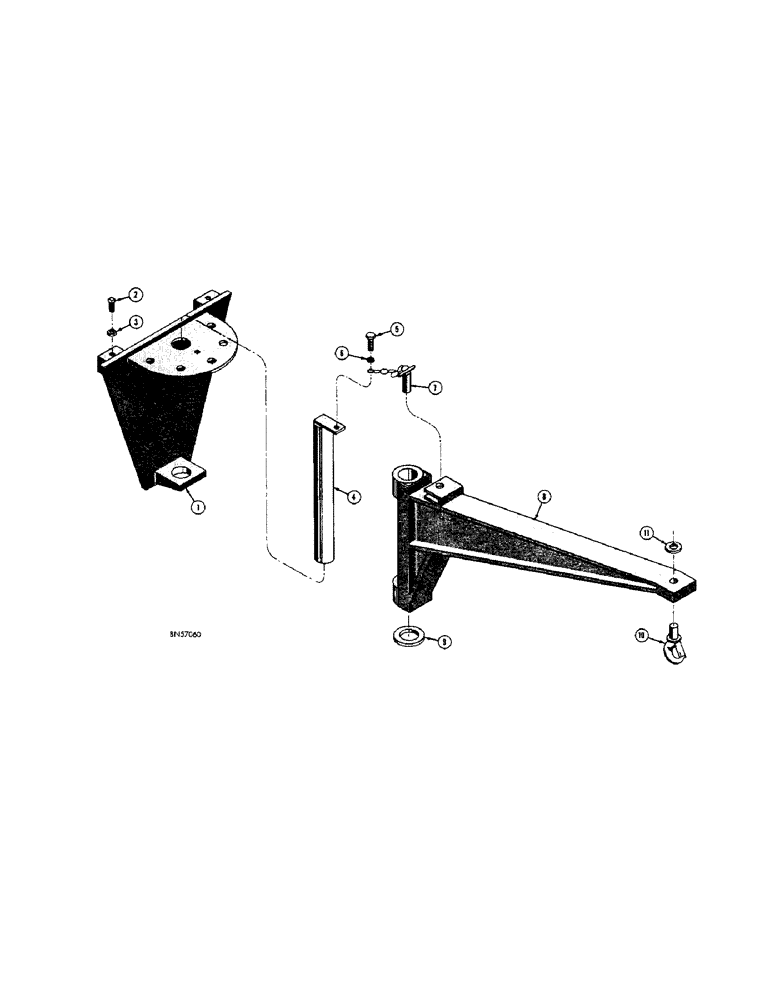

Запчасти Case 440 (70[1]) - CRANE BOOM ATTACHMENT, LATE PRODUCTION

1

D27050

HANGER - boom arm, crane boom attachment (late production)

1шт.

2

181-713

SCREW - set, square head (5/8" - 11 NC x 3"), carane boom attachment (late production)

2шт.

3

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., jam (5/8" - 11 NC), crane boom attachment (late production)

2шт.

4

D27052

PIN - pivot (2-3/8" x 22"), crane boom attachment (late production)

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Crane boom attachment (Late production) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

6

92-6

LOCK WASHER,3/8"

crane boom attachment (late production) 3/8"

1шт.

7

D27053

PIN - locking (Includes chain), crane boom attachment (late production)

1шт.

8

D27054

ARM - boom, crane boom attachment (late production)

1шт.

9

D27051

PANEL

WASHER - pivot (2-7/16" I.D. x 3-3/4" O.D. x 1/8" thick), crane boom attachment (late production)

1шт.

10

D27055

HOOK - boom, crane boom attachment (late production)

1шт.

11

60916

WASHER

- boom hook (1" I.D. x 2" O.D. x 1/4" thick), crane boom attechment (late production)

1шт.
