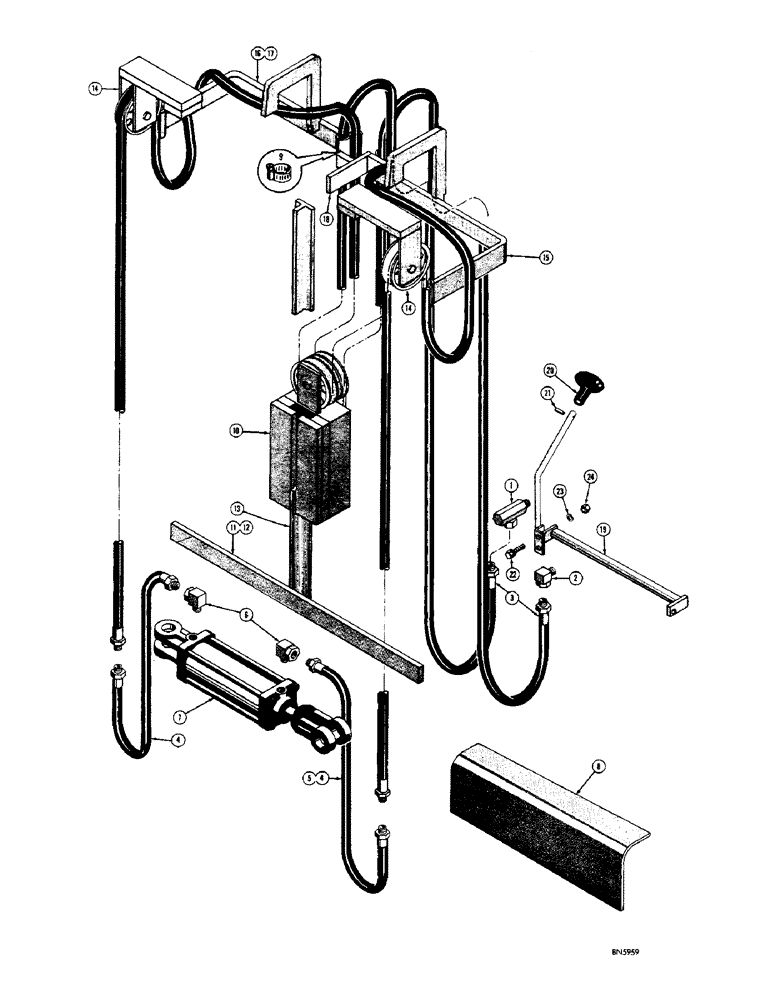

Запчасти Case 440 (64) - SIDE SHIFTER ATTACHMENT HYDRAULICS, 21 FOOT 6 INCH MAST

1

D24170

X

UNION - angle, top and bottom control valve ports

2шт.

2

D24176

UNION - adapter, swivel (Bottom port control valve) 1/2" NPT (Use D24170)

1шт.

3

D24300

HOSE - control valve to plate (27'8" long)

2шт.

4

D26365

HOSE

- plate to cylinder (45" long) See D24304

2шт.

5

D24304

HOSE

- plate to cylinder (41-1/2" long) Use D26365

2шт.

D26362

CYLINDER AND GUARD ASSEMBLY

1шт.

6

D24312

X

UNION - adapter, swivel (Ports in cylinder)

2шт.

7

D24102

CYLINDER - hydraulic, See Figure 46 for breakdown

1шт.

8

D26363

GUARD - cylinder

1шт.

9

D24301

X

CLAMP - hose (Worm drive type) Use 214-253

6шт.

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (Worm drive type)

6шт.

10

D24292

COUNTERWEIGHT - hose

1шт.

11

D25652

SUPPORT - counterweight guide (Welded to mast) See D24303

1шт.

12

D24303

SUPPORT - counterweight guide (Welded to mast) Use D25652

1шт.

13

D24293

GUIDE - counterweight, Serial Range: (Welded-mast)

1шт.

14

D24294

GUIDE - pulley, Serial Range: (Welded-mast)

2шт.

15

D24296

BRACKET - hose, L.H., Serial Range: (Welded-mast)

1шт.

16

D24297

BRACKET - hose, R.H. (Welded to mast) See D24302

1шт.

17

D24302

BRACKET - hose, R.H. (Welded to mast) Use D24297

1шт.

18

D24298

BRACKET - hose, center, Serial Range: (Welded-mast)

1шт.

19

D24288

LEVER

- control (Side shifter attachment)

1шт.

20

D24184

KNOB - control lever

1шт.

21

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.
