Запчасти Case 440 (62) - SIDE SHIFTER ATTACHMENT HYDRAULICS, 10 FOOT 6 INCH AND 14 FOOT 3 INCH MASTS

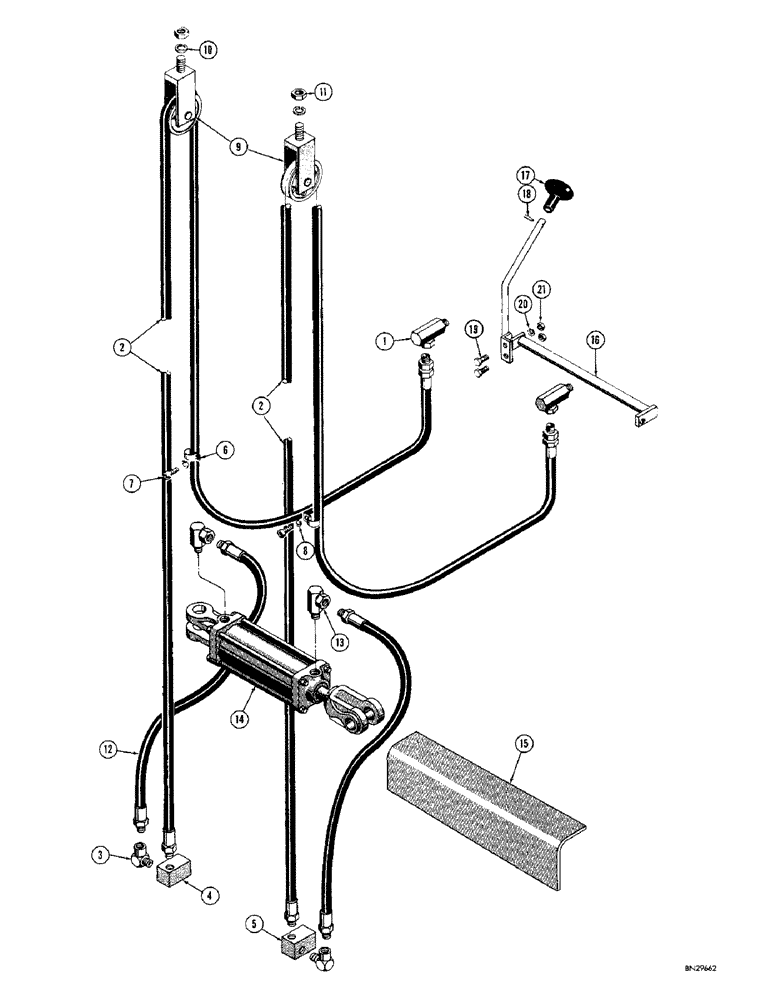

Схема запчастей Case 440 - (62) - SIDE SHIFTER ATTACHMENT HYDRAULICS, 10 FOOT 6 INCH AND 14 FOOT 3 INCH MASTS

Артикул

Название

Примечание

Количество

1

D24170

X

UNION - angle, top and bottom control valve ports

2шт.

2

D25231

HOSE - control valve to plate (10'6" mast) 14'8" long

2шт.

D25232

HOSE

- control valve to plate (14'3" mast) 18' long

2шт.

3

R14868

X

ELBOW - 90 degree street, 1/4" NPT

2шт.

4

D28150

BLOCK - hose retaining, R.H. (Welded to lower backing plate)

1шт.

5

D28148

BLOCK - hose retaining, L.H. (Welded to lower backing plate)

1шт.

6

D24282

CLAMP - hose

2шт.

Another clamp used on later units (not a sub) D39478.

1шт.

7

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - hex. socket head (1/4" - 20 NC x 1")

2шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

D24277

PULLEY

- hose (Includes bracket)

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

12

D29834

HOSE - plate to cylinder (30" long)

2шт.

D26362

CYLINDER AND GUARD ASSEMBLY

1шт.

13

D24312

X

UNION - adapter, swivel (Port in cylinder)

2шт.

14

D24102

CYLINDER - hydraulic, See Figure 46 for breakdown

1шт.

15

D26363

GUARD - cylinder

1шт.

16

D24288

LEVER

- control (Side shifter attachment)

1шт.

17

D24184

KNOB - control lever

1шт.

18

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

Выбрано товаров: 24
