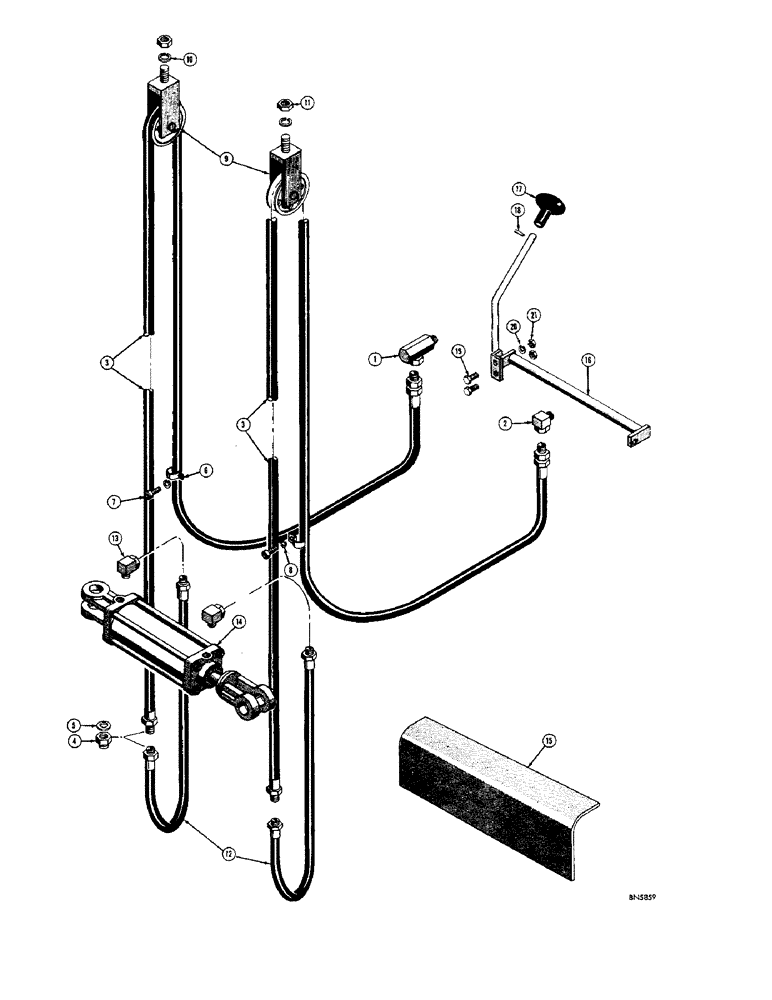

Запчасти Case 440 (60) - SIDE SHIFTER ATTACHMENT HYDRAULICS, 10 FOOT 6 INCH AND 14 FOOT 3 INCH MASTS

1

D24170

X

UNION - angle, top and bottom control valve ports

2шт.

2

D24176

UNION - adapter, swivel (Bottom port control valve) 1/2" NPT (Use D24170)

1шт.

3

D24280

HOSE

- control valve to plate (10'6" mast) 14'8" long

2шт.

D24281

HOSE - control valve to plate (14'3" mast) 18' long

2шт.

4

D25233

ADAPTER - hose to junction block (Use with replacement hose)

2шт.

5

D25234

WASHER - adapter (Use with replacement hose)

2шт.

6

D24282

CLAMP - hose

2шт.

Another clamp used on later units (not a sub) D39478.

1шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

D24277

PULLEY

- hose (Includes bracket)

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

12

D24307

HOSE - plate to cylinder (34-1/2" long)

2шт.

D26362

CYLINDER AND GUARD ASSEMBLY

1шт.

13

D24312

X

UNION - adapter, swivel (Port in cylinder)

2шт.

14

D24102

CYLINDER - hydraulic, See Figure 46 for breakdown

1шт.

15

D26363

GUARD - cylinder

1шт.

16

D24288

LEVER

- control (Side shifter attachment)

1шт.

17

D24184

KNOB - control lever

1шт.

18

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.
